Specifications
Packaging Details :
Wooden case
Model Number :
606
MOQ :
1
Supply Ability :
2.000 sets per year
Price :
negotiable
Certification :
CE,IOS9001,KC,ISO45001,ISO24001
Brand Name :
XINGTE
Place of Origin :
CHINA
Description

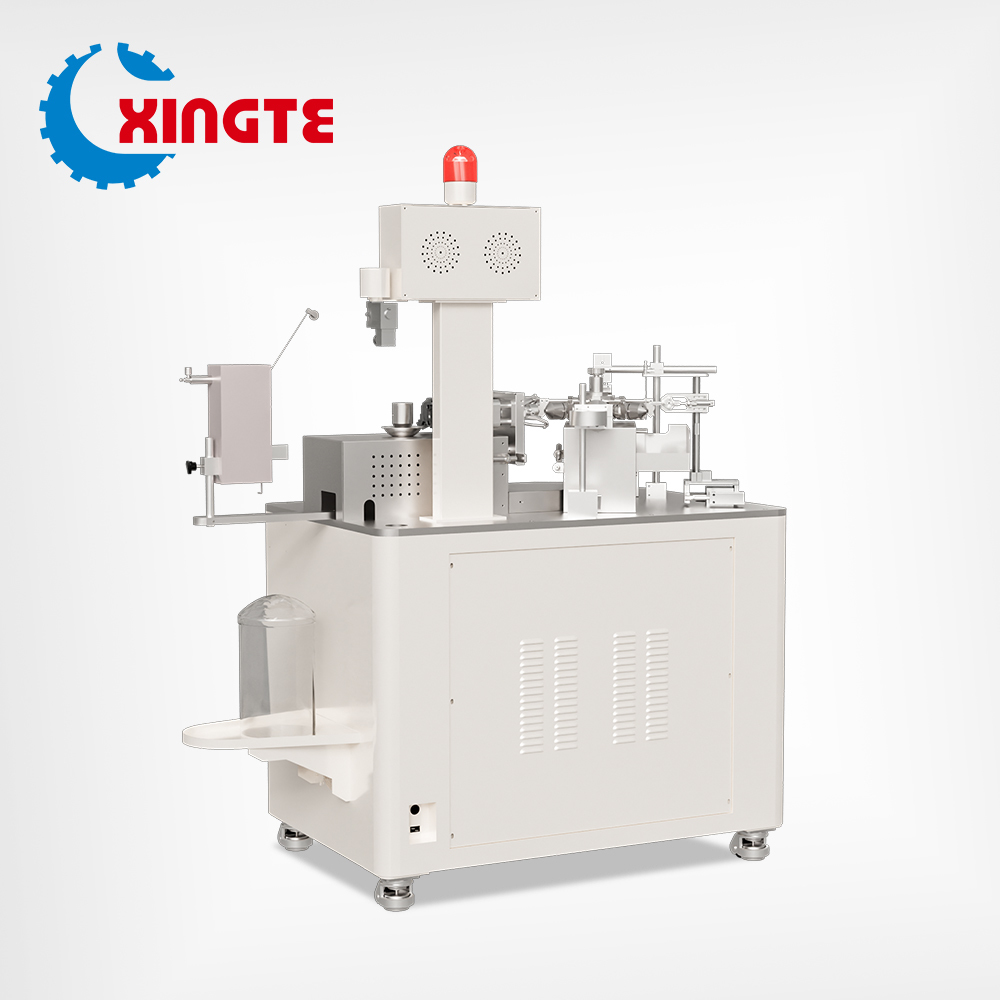

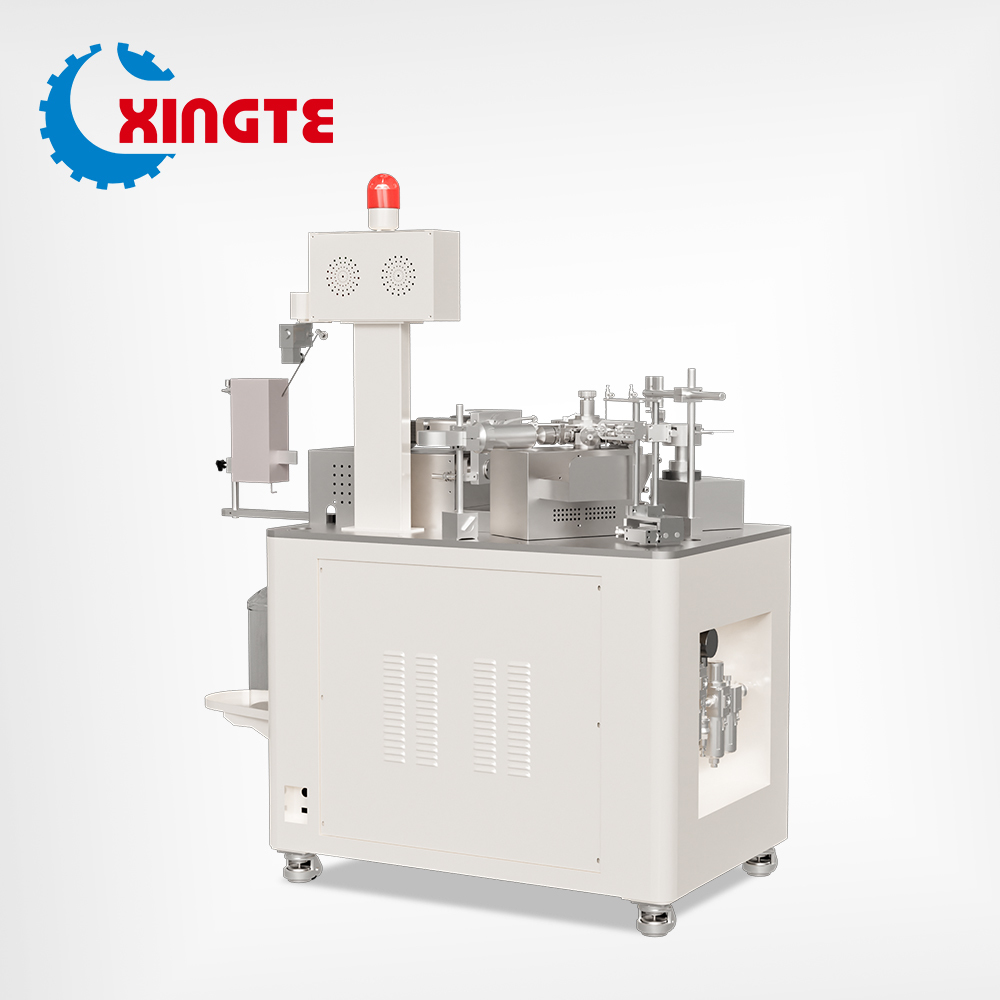

Fully Automatic Six-Axis Voice Coil Winding Machine
Application
Suitable for air-core voice coils of earphone speakers, widely used in electroacoustic industry.
Equipment Overview
This machine is specially designed for winding air-core voice coils. It supports two types of enameled copper wire: alcohol-soluble wire and hot wire. Intelligent functions including automatic winding, wire cutting, wire arranging and unloading enable stable & efficient 24-hour continuous production. Compact structure, low labor demand and high production efficiency bring strong competitiveness and broad market prospects.
Equipment Features
  • Equipped with Chinese touch screen for intuitive & easy operation
  • Metal components are specially treated for long service life
  • Imported high-precision parts ensure stable 24-hour operation
  • Seamlessly compatible with automatic production lines
  • Adopts spindle flyer winding with 6-station rotary wire cutting, wire arranging and unloading mechanism
  • Fully automatic operation; operators only need to operate, monitor and thread wires to save labor
Main Process Flow
  • Spindle flyer winding
  • 6-station rotary wire cutting
  • Unloading
Technical Parameters
Parameter Specification
Product Size φ2-φ16mm (customizable upon evaluation)
Wire Diameter 0.03-0.15mm (customizable upon evaluation)
Output 1800-2500 Pcs/h (subject to drawing requirements)
Yield Rate ≥99%
Number of Spindles 1
Max Spindle Speed ≤4800 rpm
Tension Range 5-200 g
Feeding Method Manual wire threading
Control System Xingte self-developed motion control card
Control Axes 4-axis servo motor
Power Supply 220V
Power Consumption ≈2.0 KW
Air Pressure ≈0.45 MPa
Program Storage 99999 sets
Overall Dimension (L)1300 * (W)600 * (H)1500 mm
Machine Weight Approx. 290 KG
