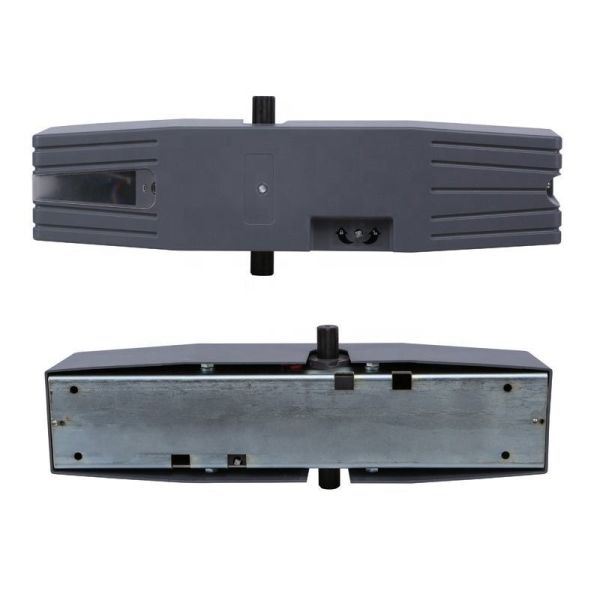

CK300AC 300Kg Capacity Garage Door Opener with Noise ≤58dB and Working Temperature -20℃~70℃ for Residential Use
CK300AC 300Kg Capacity Garage Door Opener with Noise ≤58dB and Working Temperature -20℃~70℃ for Residential Use
CK300AC 300Kg Capacity Garage Door Opener with Noise ≤58dB and Working Temperature -20℃~70℃ for Residential Use
CK300AC 300Kg Capacity Garage Door Opener with Noise ≤58dB and Working Temperature -20℃~70℃ for Residential Use
Specifications
Brand Name :
SINOMATIC
Model Number :
CK300AC
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T,Western Union,,D/P,D/A,L/C,Creadit card,Alipay
Supply Ability :
10,000 pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Power supply :
220V/50Hz,110V/60Hz
Motor power :
260W
Limit switch :
Mechanical limit switch
Maximum weight of door :
300Kg
Gross Weight :
14kg
Working duty :
S2, 15min
Description

PRODUCT DESCRIPTION
The CK300AC garage door opener features a built-in 433.92MHz receiver, LED courtesy light, and photocell interface for enhanced safety. With a powerful 260W motor delivering 350N.m torque, it supports doors up to 9sq.m. The product ensures quiet operation with noise levels ≤58dB and operates within -20℃~70℃ temperature range. It includes a manual key release for emergencies and supports up to 25 remote transmitters with a 30m control range.
PRODUCT DETAILS
  • For up-and-over garage door, max. door area 9 Sq.m
  • Soft start-slow stop function
  • Built in LED courtesy light
  • Alarm lamp, photo beam & safety beam connectable
  • Mechanical limit switch
  • Support WIFI control
  • Manual key release design for emergency purposes

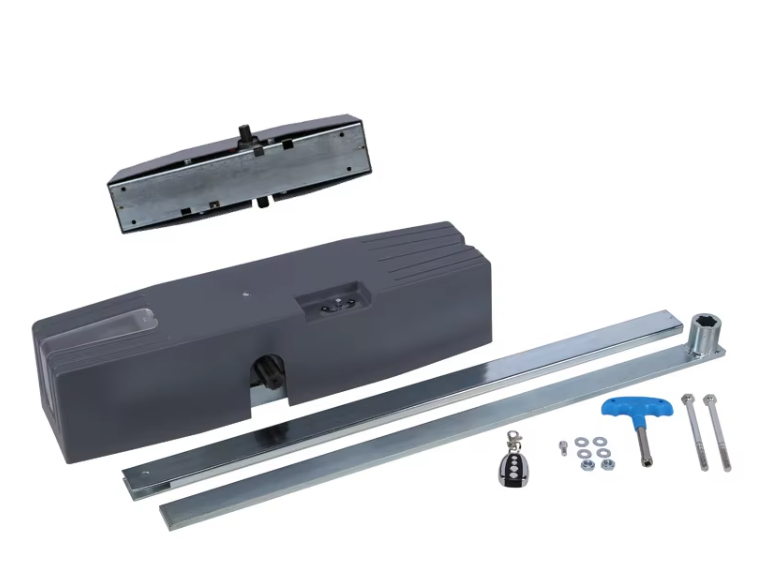

  • Installation accessories with pull rod and bush
  • Available for two door openers mounted on each side for larger door
TECHNICAL SPECIFICATIONS
Unit Model CK300AC
Power supply 220VAC/110VAC
Door max surface 9m²
Motor Power 200W
Output torque 350N.m
Door Area 9 sq.m
Limit switch mechanical limit switch
Gate moving speed 20cm/sec
Remote control range ≥30meters
Recording of up remote controls 25
Frequency 433.92MHz
Noise ≤56dB
Working temperature -20℃~+70℃
Weight 14kg
