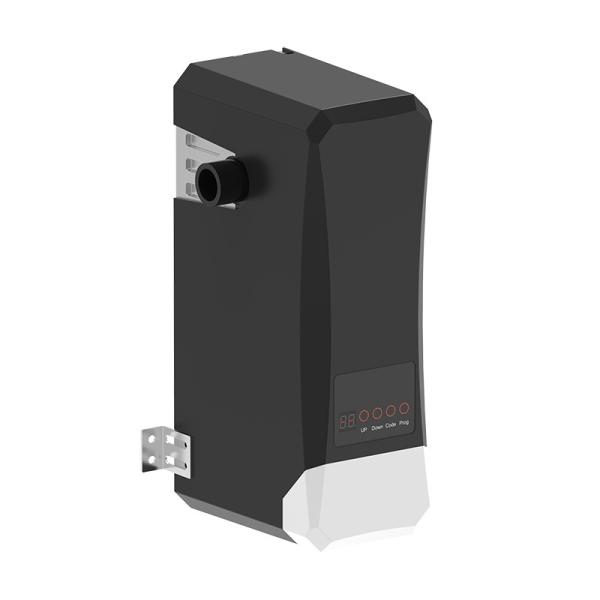

CK850DC Automatic Door Opener With Encoder Limit Switch And Remote Control With 30m Range For Garage Doors
CK850DC Automatic Door Opener With Encoder Limit Switch And Remote Control With 30m Range For Garage Doors
CK850DC Automatic Door Opener With Encoder Limit Switch And Remote Control With 30m Range For Garage Doors
CK850DC Automatic Door Opener With Encoder Limit Switch And Remote Control With 30m Range For Garage Doors
Specifications
Brand Name :
SINOMATIC
Model Number :
CK850DC
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, Paypal, Credit card
Supply Ability :
30,000 pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Installation Type :
Wall Mounted
Power Supply :
220V,50Hz;110V,60Hz
Motor Power :
DC24V,150W
Control Voltage :
DC24V
Max Door Area :
9 Sq.m
Working Noise :
≤55dB
Power Source :
Electric
Remote Frquency :
433 MHz
Motor Protection Class :
IP54
Warranty :
1 year
Description

PRODUCT DESCRIPTION

CK850DC door opener is suitable for lifting garage doors with a weight of less than 100 kilograms and a door area of less than 15 square meters. The driving mode adopts worm gear transmission and sprocket transmission. This door opener must be installed on the inside of the garage door to prevent damage to the door opener.

Function:
1.No need to relearn limit positions after power failure.
2.Quick pull rope release device.
3.Automatic close time setting.

Feture:
1.Encoder limit, limit precision.
2. Electromechanical integration 24V DC motor, stable operation.
3. Convenient design, direct installation without opening the cover.
4. Access to external equipment: infrared/wireless keypad/wifi control.

MAIN FUNCTION AND FEATURES

Built in control unit with 433.92MHz receiver
Built in LED courtesy light
Electric lock/Photocell available
Encoder limit switch
Manual key release design for emergency purposes
Installation accessories with pull rod and bush


Standard Packing List
Opener*1
Setting plate *1
Adaptor*1

External hexagonal screw x 4

Inner hexagonal flange screw*2

Plastic expansion tube set*2

Remote control *2
Instruction manual*1

TECHNICAL SPECIFICATIONS

Model CK850DC
Power Supply 220VAC/50Hz;110V/60Hz
Motor Power 150W
Running Speed 30r/min
Max. capacity 100kg
Remote Control Distance ≥30m (open area)
Remote Control Mode Single button mode / Three button mode
Limit Switch Encoder Limit
Working Noise ≤55dB
Working Duty S2, 6min
Recording of up Remote Controls 25
Remote Frequency 433.92 MHz
Working Temperature -20°C - +70°C
Package weight 7.7kg (optional parts not included)

PACKING IMAGES

CK850DC Automatic Door Opener With Encoder Limit Switch And Remote Control With 30m Range For Garage Doors

We use honeycomb panels as the lining packaging material, which is more environmentally friendly and biodegradable

OUR SERVICES

Warranty

1. Only original and genuine products.

2. We offer replacement for defective items within Warranty period

3. Regularly12 month warranty.

Service

 1. Regularly questions will be responded positively within 24 hours except holidays.
2. OEM acceptable. Customized as your requirements.
