Wall-Mounted Garage Door Opener with 100kg Lifting Capacity and Tuya WIFI App Remote Control
Wall-Mounted Garage Door Opener with 100kg Lifting Capacity and Tuya WIFI App Remote Control
Wall-Mounted Garage Door Opener with 100kg Lifting Capacity and Tuya WIFI App Remote Control
Wall-Mounted Garage Door Opener with 100kg Lifting Capacity and Tuya WIFI App Remote Control
Specifications
Working Duty :
S2, 6min
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,Alipay,Paypal,Credit card
Max. capacity :
100kg
Model Number :
CK850DC
Remote Frequency :
433.92 MHz
Price :
Negotiable
Remote Control Mode :
Single button mode / Three button mode
Certification :
CE/ ISO
Remote control range :
≥30 m
MOQ :
Sample order accepted
Delivery Time :
5-10 working days after payment received
Recording of up Remote Controls :
25
Supply Ability :
30,000 pcs per month
Motor Power :
150W
Brand Name :
SINOMATIC
Packaging Details :
Carton/Plywood box/Pallet
Working temperature :
-20°C~70°C
Place of Origin :
Shenzhen, China.
Description
Wall Mounted Garage Door Opener 100kg Lifting Support
The CK850DC wall-mounted garage door opener features an encoder limit for high precision and a 24V DC motor for stable operation. It supports modern functionalities including infrared sensors, wireless keypad, and Wi-Fi control. Certified for reliable performance with a maximum door weight of 100kg and gate moving speed of 30r/min, it ensures convenience with soft start/stop and auto-reverse functions.
CK850DC garage door opener is suitable for lifting garage door with door weight less than 100kg, door area less than 15 square meters, door drive shaft diameter is 1 inch. The drive mode adopts worm gear transmission and chain wheel transmission. This door opener must be installed inside of the garage door for safety.
Product Highlights
  • 100kg Lifting Capacity: Safely opens heavy garage doors effortlessly
  • Wall-Mounted Installation: Simplifies installation and maintenance
  • Modern Design: Sleek aluminum construction enhances villa aesthetics
  • Smart Control: Easy to use with remote control modes
  • Encoder Limit: Ensures precise door positioning
Key Features
  • Encoder limit switch for high precision control
  • 24V DC motor for stable, reliable operation
  • Convenient direct installation without cover opening
  • External access via infrared sensor, wireless keypad, and Wi-Fi control
Main Functions & Features
  • Built-in control unit with 433.92MHz receiver
  • Built-in LED courtesy light
  • Electric lock and photocell compatibility
  • Encoder limit switch technology
  • Manual key release design for emergency purposes
  • Complete installation accessories including pull rod and bush

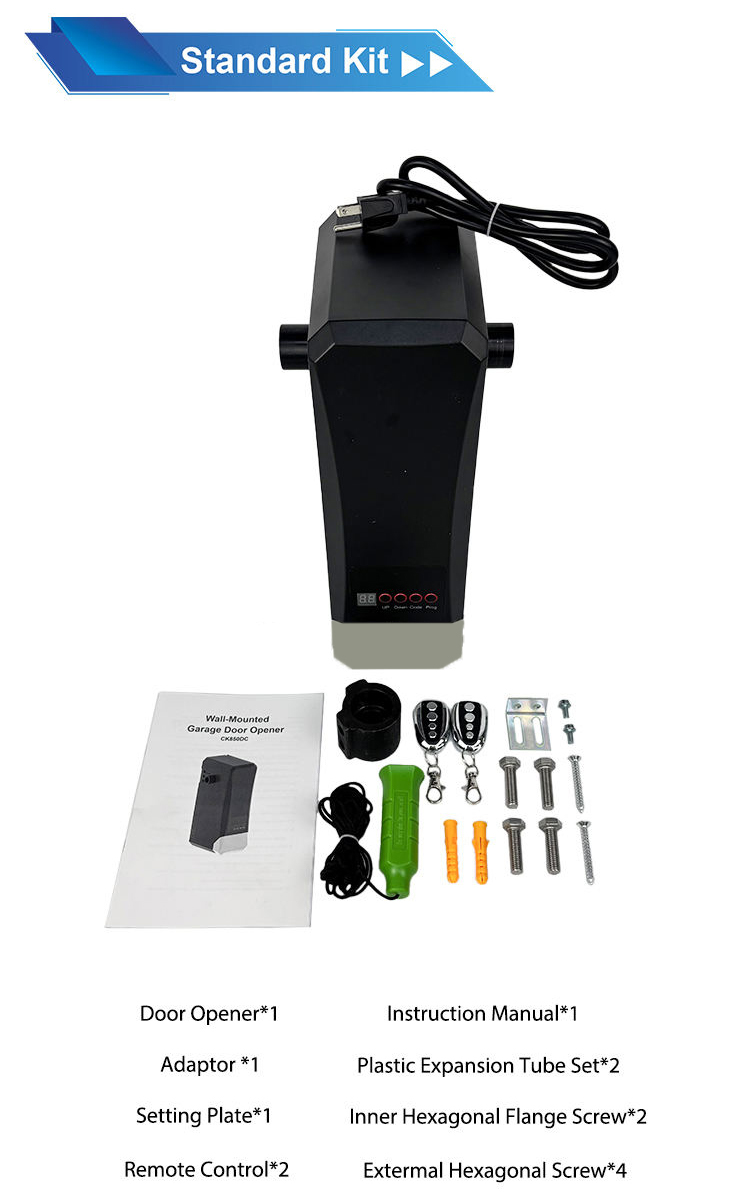

Standard Unit Components
  • CK850DC motor (1 piece)
  • Built-in control board (1 piece)
  • Remote control (2 pieces)
  • User manual (1 piece)
  • Mounting accessories
Technical Specifications
Model CK850DC
Power Supply 220VAC/50Hz; 110V/60Hz
Motor Power 150W
Running Speed 30r/min
Maximum Capacity 100kg
Remote Control Distance ≥30m (open area)
Remote Control Mode Single button mode / Three button mode
Limit Switch Encoder Limit
Working Noise ≤55dB
Working Duty S2, 6min
Remote Control Recording 25 controls
Remote Frequency 433.92 MHz
Working Temperature -20°C - +70°C
Package Weight 7.7kg (optional parts not included)
Wall-Mounted Garage Door Opener with 100kg Lifting Capacity and Tuya WIFI App Remote Control
Our Services
Warranty: Only original and genuine products. We offer replacement for defective items within warranty period. Standard 12-month warranty included.
Service: Regular inquiries responded within 24 hours (excluding holidays). OEM services available with customization according to your requirements.
