SS Vertical Automatic Packaging Solutions For Seed / Sesame Bag With Heat Seal
SS Vertical Automatic Packaging Solutions For Seed / Sesame Bag With Heat Seal
Specifications
Brand Name :
Hongsen Intelligent
Model Number :
HS-VFFS-50, HS-VFFS-100
Place of Origin :
People's Republic of China
MOQ :
1 PC
Payment Terms :
L/C, T/T
Price :
Negotiable
Coding :
Automatic ffs pouch packing machine
Package :
Pouch
Forming :
Collar type
Weighing range :
1-10 kg
Package material :
Plastic film
Speed :
8-25 pouches/min.
Description

SS Vertical Automatic Packaging Solutions For Seed / Sesame Bag With Heat Seal

This packing machine is a vertical type continuous running small bag FFS machine, which can automatically complete all operation in the process of packing seeds, sesame and other materials.

Application Scope: this vertical form-fill-seal pouch packing machine is suitable for any kinds of powdery and granular materials as well as premixes lower than 10 kg in a variety of industries such as agricultural and food fields.

Functional Structure:

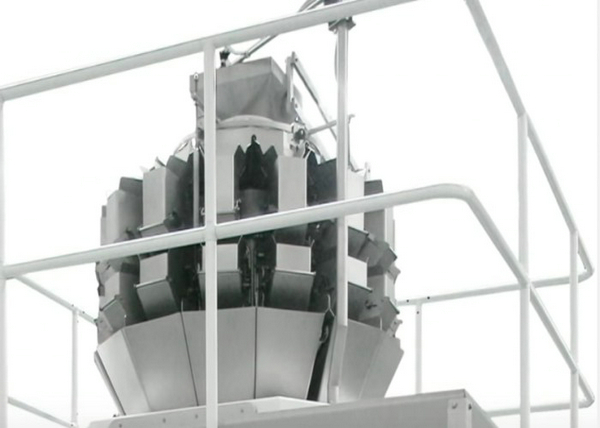

This machine is composed of feeding and weighing mechanism, bag making and filling mechanism , and sealing and cutting mechanism.

1. Main structure is made of high strength carbon steel, while the contacting part with feeding material made of stainless steel;

2. The machine is fully controlled by PLC system, which enables it a fully automated running;

3. Weighing and filling speed can be adjusted within the specified range on computer software, which makes the machine quite flexible;

4. Hole punching mechanism can be equipped on the machine to punch hole(s) on the bag for handling;

5. Automatic coding system is available for the machine.

Parameters:

A. Packing speed: 8-15 bags/min (HS-VFFS-50), 8-25 bags/min (HS-VFFS-100)

B. Weighing range: 1-5 kg & 5-10 kg

C. Weighing accuracy: 0.2%

D. Maximum width of packing film: 900 mm

E. Power and current: 4 KW 16A

F. Voltage: 380V 50HZ

G. Air pressure: 0.6~0.8Mpa

H. Air consumption: 0.4m³/min

SS Vertical Automatic Packaging Solutions For Seed / Sesame Bag With Heat Seal
