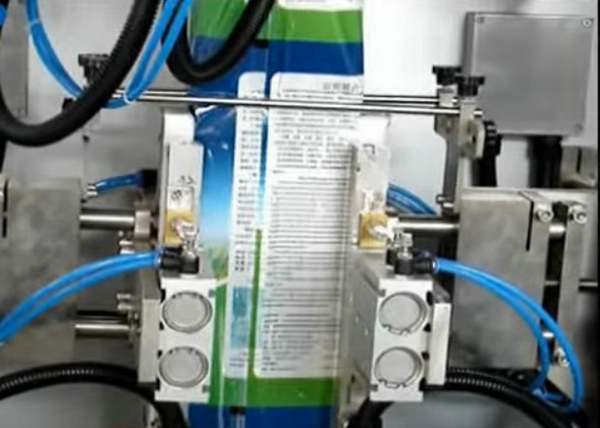

Vertical Automatic Filling And Packing Machine For Washing Powder High Accuracy
Vertical Automatic Filling And Packing Machine For Washing Powder High Accuracy
Specifications
Brand Name :
Hongsen Intelligent
Model Number :
HS-VFFS-50, HS-VFFS-100
Place of Origin :
People's Republic of China
MOQ :
1 PC
Payment Terms :
L/C, T/T
Price :
Negotiable
Coding :
Automatic vertical pouch packing machine
Package :
Pouch
Forming :
Collar type
Weighing range :
1-10 kg
Package material :
Plastic film
Speed :
8-25 pouches/min.
Description

High Accuracy Washing Powder Vertical Pouch Packing Machine Combination Weigher High Speed Filling

The full-automated VFFS small bag filling machine is designed to realize the fully automatic operation of metering, material feeding, bag making, sealing-off as well as coding.

Range of application: high-speed metering and packaging of particle/powder/mixed materials in daily chemical, agrochemical, food and chemical industries (e.g. fertilizer, flour, flower fertilizer, solid medicine powder, washing powder, addictives and seasoning powder).

Features of our fully automatic pouch packing machine:

A. The part of the main weigher which contacts with the material is made of SUS304 stainless steel, while the other parts are made of powder coated carbon steel;

B. Unit structure: metering mechanism + bag making mechanism + sealing and cutting mechanism;

C. Technological process: automatic bag making→automatic weighing→automatic filling-in→automatic sealing-off→automatic coding→finished product conveying.

Parameters:

Model Packing Speed (pouches/Min) Weighing scope (Kg) Weighing accuracy Bag-making size: max. width

Power/

current

 Voltage Air pressure Air consumption
HS-VFFS-50 8-25

1-5

 0.2% 900mm 4KW/16A 380V 50HZ 0.6~0.8Mpa 0.4m³/min
HS-VFFS-100 8-15 5-10 0.2% 4KW/16A 380V 50HZ 0.6~0.8Mpa 0.4m³/min

Features:

1. Full stainless steel material,food grade and energy saving.

2. Intelligent control,it can do fully automatic packaging,more precise and fast.
3. Divided design, high efficiency,low noise equipment,running smoothly.
4. Easy to operate,filling weight can be set directly on display.
