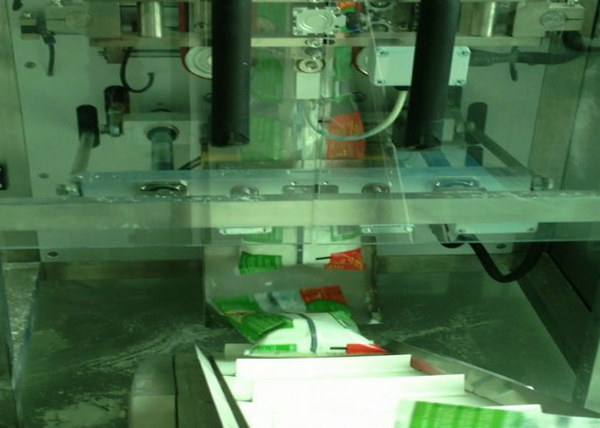

Vertical Form Fill Seal Pouch Packing Machine for Dry Fruits / Pulses / Peas 1 -10 KG
Vertical Form Fill Seal Pouch Packing Machine for Dry Fruits / Pulses / Peas 1 -10 KG
Specifications
Brand Name :
Hongsen Intelligent
Model Number :
HS-VFFS-50, HS-VFFS-100
Place of Origin :
People's Republic of China
MOQ :
1 PC
Payment Terms :
L/C, T/T
Price :
Negotiable
Coding :
Automatic
Package :
Pouch
Forming :
Collar type
Weighing range :
1-10 kg
Package material :
Plastic film
Speed :
8-25 pouches/min.
Description

Automatic Dry Fruits / Pulses / Peas Vertical Form Fill Seal Pouch Packing Machine 1 -10 KG

Descriptions:

The full-automated VFFS small bag filling machine is designed to realize the fully automatic operation of metering, material feeding, bag making, sealing-off as well as coding.

Range of application: high-speed metering and packaging of particle/powder/mixed materials in daily chemical, agrochemical, food and chemical industries (e.g. fertilizer, flour, flower fertilizer, solid medicine powder, washing powder, addictives and seasoning powder).

Use:

This machine is suitable for automatic packaging of liquid of foods, medicine and chemicals,such as pesticide,shampoo,body foam bath lotion, facial cream, ingredient oil, fruit sauce,tomato ketchup and honeyshower gel, skin lotion, toothpaste, cosmetic cream, fruit jam, edible oil, soy etc

Features of our fully automatic pouch packing machine:

A. The part of the main weigher which contacts with the material is made of SUS304 stainless steel, while the other parts are made of powder coated carbon steel;

B. Unit structure: metering mechanism + bag making mechanism + sealing and cutting mechanism;

C. Technological process: automatic bag making→automatic weighing→automatic filling-in→automatic sealing-off→automatic coding→finished product conveying.

Parameters:

Model Packing Speed (pouches/Min) Weighing scope (Kg) Weighing accuracy Bag-making size: max. width

Power/

current

 Voltage Air pressure Air consumption
HS-VFFS-50 8-25

1-5

 0.2% 900mm 4KW/16A 380V 50HZ 0.6~0.8Mpa 0.4m³/min
HS-VFFS-100 8-15 5-10 0.2% 4KW/16A 380V 50HZ 0.6~0.8Mpa 0.4m³/min

Vertical Form Fill Seal Pouch Packing Machine for Dry Fruits / Pulses / Peas 1 -10 KG
