Product Description:

The Automatic Hot Foil Stamping Machine is an advanced and highly efficient piece of equipment designed to meet the demanding needs of modern printing and packaging industries. With a robust net weight of 20 tons, this machine ensures stability and durability during operation, making it an ideal choice for heavy-duty production environments. Engineered for precision and speed, it delivers exceptional performance in foil stamping applications, enhancing product aesthetics with high-quality metallic finishes and intricate designs.

Features:

1. Paper Feeding Unit

■ The professional designed feeder is made of lightweight aluminum alloy with anode treatment on the surface.The forward,backward,high and low positions can be adjusted according to the stock:for smooth feeding of thin paper,arge gram cardboard,corrugated paper,etc.

■ Adjustable air suction tube, suction head and air distribution valve superhard alloy treatment.

■The pre-stack device is equipped with rails so that the operator can accurately and easily load the stack into the feeder.

■ Pneumatic lifting device for feeding frame.

■ Single point clutch: the conveying part and the main part can be separated and combined synchronously at any time, simplifying and facilitating the operation sequence. No matter the sample, test pressure, etc., can be arbitrarily separated and closed conveyor section

2. Die-cutting Unit

■ The oil route is forcibly lubricated by a oil pump as made in Taiwan to reduce wearing, an oil cooler is added to cool the lubricating oil, and the main chain is lubricated timely to improve the operation efficiency.

■ The novel transmission mechanism provides high speed die-cutting, and the highly precise swing link platform improves the padding speed (almost without padding), as it is known the pressure can be hardly balanced in most of other common machines.

■ The pneumatic plate locking unit can fix the upper frame more firmly and faster. In our die-cutting machine, the front, back, left and right are pneumatically locked simultaneously to realize a high correctness and a high speed. However, common machines are tightened by screws.

■ The paper holding rack chain is imported from Germany, which provides a long service life and a stable die-cutting precision.

3. Hot Foil Stamping Unit

■ The foil can step, which greatly meet client's needs in various stamping. 12 heating zones can be set individually and in constant temperature.

■ Adopting imported servo-motor and computer for foil control system, foil convey and tension is constant.

■ The adoption man-machine interface monitors to show the system, making the machine circulate the appearance to be clear at a glance; breaking down the manifestation, breaking down the exclusion with proficiency, real realizes person machine dialogue, person machine exchanges.

■ PLC and many electronic components are famous imported brand, which insure the machine to be safe and reliable

■ Adopting imported servo-motor and computer for foil control system, the foil conveyed synchronized, tension is constant and the transmission leapfrogging is more accurate.

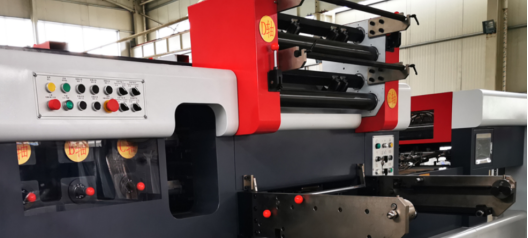

4. Vertical and Horizontal Quick Changed Foil Device

■ Vertical quick changed foil device is on the operating side of the machine, which is convenient to operate. Adopt servo control foil system is contributed to accurate foil jumping step, easy to control.

■ Horizontal quick changed foil device: The foil bracket can be easily pushed and pulled out, and the new foil rolls can be replaced easily and quickly 5 independent feed foils are controlled by a precise servo motor, and the press wheel is combined with rotation to keep the tightness of the foil to be moderate, and jump step is more accurate. In the process of Horizontal foil stamping, you can choose to rewinding the waste foil inside or outside the machine. Be

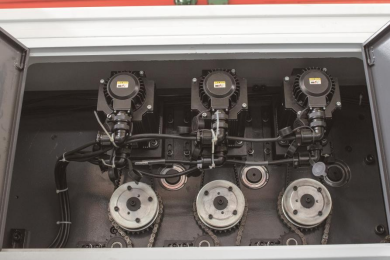

5:Horizontal Foil Feeding Servo Motor System

Adopt motion controller, it could control foil feeding servo contour and track the machine speed variation timing, So that it could reach the feeding accurately and smoothly

Technical Parameters:

Partners:

Workshop:

FAQ:

Q1: What is the brand and model of the Automatic Hot Foil Stamping Machine?

A1: The machine is branded as SING JIGUO, model number TMY-1500H Automatic Die Cutting & Hot Stamping Machine.

Q2: Where is the Automatic Hot Foil Stamping Machine manufactured?

A2: This machine is manufactured in China.

Q3: What certifications does the SING JIGUO TMY-1500H machine have?

A3: The machine is CE certified, ensuring it meets European safety and quality standards.

Q4: What is the price and minimum order quantity for this machine?

A4: The price for one set of the machine is $180,000, and the minimum order quantity is 1 set.

Q5: What are the payment terms, delivery time, and supply ability for the machine?

A5: Payment terms accepted are L/C and T/T. The delivery time is approximately 30 days, and the supply ability is 30 sets per month.
