Specifications
Brand Name :
SING JIGUO
Model Number :
TMY-1060H Automatic Die Cutting &Hot Stamping Machine
Place of Origin :
CHINA
Certification :
CE
MOQ :
1SET
Price :
130000＄
Packaging Details :
standard
Delivery Time :
30 days
Payment Terms :
L/C, T/T
Supply Ability :
30 sets per month
stamping tempreture :
20-200℃
Max. Stamping pressure :
300T
Min. Paper Size :
400*360mm
Max. Stamping Range :
1030*730mm
Max.Diecutting Speed :
7500s/h
Max.Paper Size :
1060*760mm
Net weight :
20T
Sheet Thickness :
Cardboard：0.1-3mm Corrugated Board：≤4mm
Description
3 Vertical And 2 Horizontal Foil Rollers Max Paper Size Stamping Temperature 20-200°C
3 Vertical And 2 Horizontal Foil Rollers Max Paper Size Stamping Tempreture 20-200C for Stamping

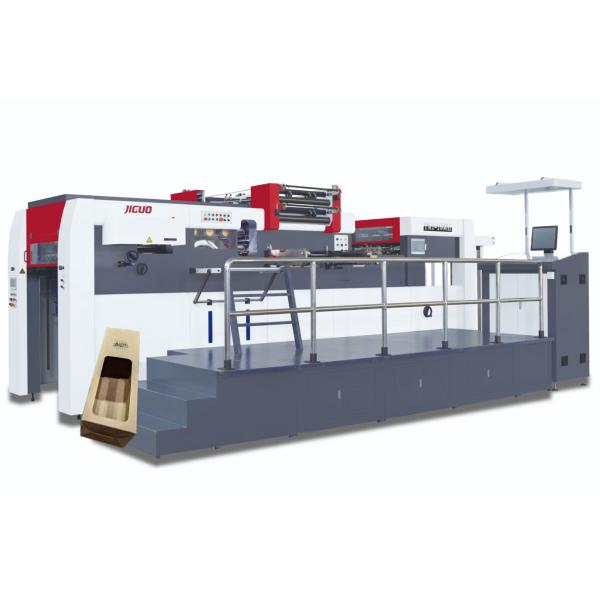

The Automatic Hot Foil Stamping Machine is a high-quality and efficient machine designed to enhance the productivity and quality of hot foil stamping processes. With a Max. Stamping Range of 1030×730mm, this machine can accommodate a wide range of paper sizes, allowing for versatile and customizable stamping options.

Key features include a Max. Diecutting Speed of 7500s/h, compact Overall Dimension of 7600×4050×2500mm, and a total of 3 Vertical and 2 Horizontal Foil Rollers for flexible foil application. The machine handles paper sizes from 400×360mm up to 1060×760mm with precise temperature control from 20-200°C.

Key Features
1. Paper Feeding Unit
3 Vertical And 2 Horizontal Foil Rollers Max Paper Size Stamping Tempreture 20-200C for Stamping
  • Non-stop high-speed paper feeding section with 9 suction nozzles
  • Professional designed feeder made of lightweight aluminum alloy
  • Adjustable air suction tube and superhard alloy treatment
  • Horizontal paper parting and blowing device
  • Pre-stack device with rails for easy loading
2. Paper Conveying Unit
3 Vertical And 2 Horizontal Foil Rollers Max Paper Size Stamping Tempreture 20-200C for Stamping
  • Stainless steel construction to prevent rust
  • Adjustable pushing and pulling units for different paper sizes
  • Side gauge and front gauge paper photoelectric detection
3. Die-cutting Unit
3 Vertical And 2 Horizontal Foil Rollers Max Paper Size Stamping Tempreture 20-200C for Stamping
  • Steel wall plate construction for durability
  • Automatic pressure and front scale regulation
  • Forced lubrication system with oil cooler
  • Pneumatic plate locking unit for quick setup
  • German imported paper holding rack chain
4. Hot Foil Stamping Unit
3 Vertical And 2 Horizontal Foil Rollers Max Paper Size Stamping Tempreture 20-200C for Stamping
  • 2 cross and 3 longitudinal foil rollers for versatile stamping
  • 12 individually controlled heating zones
  • Imported servo-motor and computer control system
  • User-friendly man-machine interface
  • High-quality imported PLC and electronic components
5. Delivery Unit
3 Vertical And 2 Horizontal Foil Rollers Max Paper Size Stamping Tempreture 20-200C for Stamping
  • Uninterrupted paper collecting grid plate system
  • Pneumatic sampling for convenient inspection
Technical Specifications
Parameter Value
NO. of Foil Rollers 3 Vertical And 2 Horizontal
Sheet Thickness Cardboard: 0.1-3mm
Corrugated Board: ≤4mm
Stamping Temperature 20-200°C
Min. Paper Size 400×360mm
Max. Diecutting Speed 7500s/h
Max. Stamping Pressure 300T
Net Weight 20T
Max. Stamping Range 1030×730mm
Max. Paper Size 1060×760mm
Max Stamping Speed 6000s/h
Applications

This machine is ideal for:

  • Printing Industry: Foil accents for packaging, business cards, invitations
  • Packaging Design: Stunning packaging solutions for various products
  • Branding Agencies: Elegant branding materials with precise foil application
  • Commercial Printing: Marketing materials, brochures, posters
Customization Options
  • Brand Name: SING JIGUO
  • Model Number: TMY-1060H
  • Place of Origin: CHINA
  • Certification: CE
  • Minimum Order Quantity: 1 SET
  • Price: $130,000
  • Delivery Time: 30 days
Support and Services

Our product comes with comprehensive technical support and services:

  • Machine setup and installation assistance
  • Troubleshooting guidance
  • Software updates and compatibility checks
  • Regular maintenance and servicing
  • Operator training programs
  • Customization options
Frequently Asked Questions
Q: What is the brand name of this hot foil stamping machine?
A: The brand name is SING JIGUO.
Q: What is the model number?
A: The model number is TMY-1060H Automatic Die Cutting & Hot Stamping Machine.
Q: Where is this machine manufactured?
A: This machine is manufactured in CHINA.
Q: What certification does it have?
A: It is CE certified.
Q: What is the minimum order quantity?
A: The minimum order quantity is 1 set.
