Specifications
Brand Name :
SINO JIGUO
Model Number :
YH-960G
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
$47000to $49000/1 Set
Payment Terms :
L/C,T/T
Supply Ability :
25set
Delivery Time :
30 days
Packaging Details :
Standard export wooden box
Max. Paper Size :
960×720mm
Max.Stamping Area :
800*570mm
Min.Stamping Area :
15*15mm
Max.pressure :
20TON
Needle gripper edge :
10mm
Stamping working speed :
1200~1500 s/h
Max.delivery Pile :
900mm
Stamping Precision :
0.1 mm
Usage :
printing paper
Total Weight :
3600KG
Description

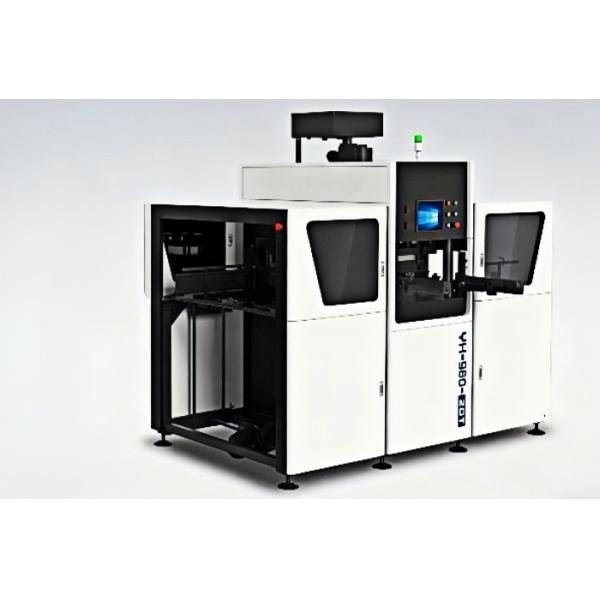

Hydraulic Hot Foil Stamper Machine for Paper/Leather/Plastic-Packaging Factory Use
The small hydraulic hot stamping machine is compact, easy to operate and has stable pressure. It is mainly used for hot stamping/stamping of small batches of exquisite products or materials to enhance the appearance and added value of the products.
Key Features
  • Cultural and Creative Industries: Hot stamping logos, designs, or text on creative products such as notebooks, covers, postcards, bookmarks, and badges.
  • Packaging and Labeling: Improving the quality of small packaging boxes, product labels, and hang tags.
  • Leather Processing: Enhancing the texture and aesthetics of small leather goods.
  • Personalization: Meeting the needs of customizing unique text and designs on various products.
Hydraulic Hot Foil Stamper Machine for Paper/Leather/Plastic-Packaging factory use
Technical Parameters
Model YH-960G
Max. Sheet Size 960×720mm
Min. Sheet Size 150×150mm
Suitable Sheet Thickness 120-2000gsm
Number of Stamping Rollers Two rollers
Power 8 kw
Air Requirements 0.6 Mpa, >0.36 m³/min
Voltage 3P, 380 V
Machine Components

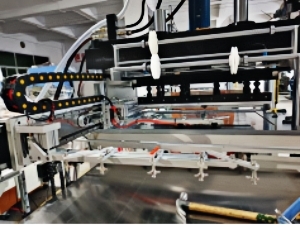

Paper Feeding Unit
Hydraulic Hot Foil Stamper Machine for Paper/Leather/Plastic-Packaging factory use
High-performance stepper and servo motor control ensures precise feeding. Professional feeders are suitable for paper, leather, solid cardboard, and plastic sheets of varying thicknesses. Servo motor control ensures stable operation and high precision.

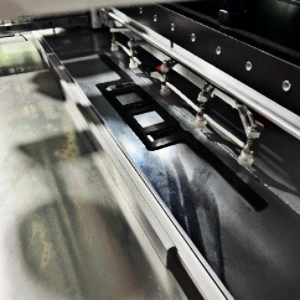

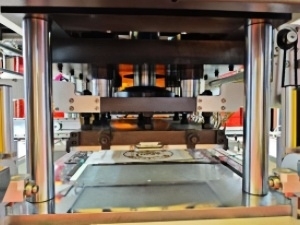

Foil Stamping Unit
Hydraulic Hot Foil Stamper Machine for Paper/Leather/Plastic-Packaging factory use Hydraulic Hot Foil Stamper Machine for Paper/Leather/Plastic-Packaging factory use
Three-pull gauge calibration design for easy adjustment. Servo motor-controlled push gauge with ±0.10mm accuracy. Hydraulic drive design with no wear parts. High-performance motion controller for centralized control. Aviation aluminum heating plate for fast and even heating. Manganese steel base for durability and stable stamping.

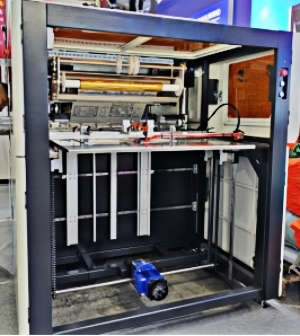

Delivery Unit
Hydraulic Hot Foil Stamper Machine for Paper/Leather/Plastic-Packaging factory use
High-performance stepper motor control ensures precise paper feeding. Dual foil rolls enable multi-color and multi-position hot stamping.

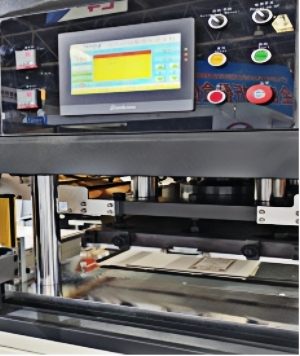

Operation Panel
Hydraulic Hot Foil Stamper Machine for Paper/Leather/Plastic-Packaging factory use
  • WEINVIEW Touch Screen for easy operation

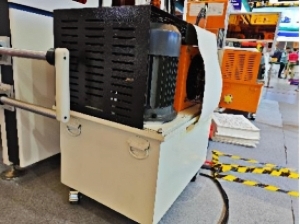

Anti-wear Hydraulic Oil Station
Hydraulic Hot Foil Stamper Machine for Paper/Leather/Plastic-Packaging factory use
Hydraulically controlled platform movement provides increased pressure and stability. Maintenance is simple - filter/change the oil every 3-5 years.

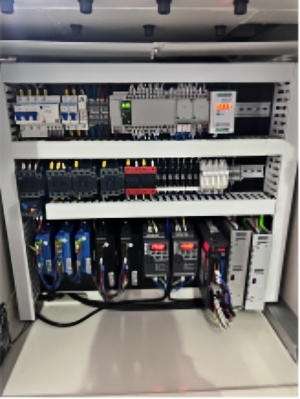

Electrical Unit
Hydraulic Hot Foil Stamper Machine for Paper/Leather/Plastic-Packaging factory use
The electrical control system is Japan PANASONIC PLC computer automatic control for fully detecting and controlling, stable and accuracy.
All the Contactor, Relay, air switch use SCHNEIDER, and all the Photoelectric switch use the OMRON, ensure the machine electric working stable.
The machine is equipped with various safety protection units. A visible and audible alarm will be given at any fault, and the machine will be automatically shut down to protect personal and device safety.
Suitable Products Sample
Hydraulic Hot Foil Stamper Machine for Paper/Leather/Plastic-Packaging factory use
