Fully Automatic Servo-Driven Pillow Packing Machine with 230 packs/min High-Speed for Horizontal Flow Packaging
Fully Automatic Servo-Driven Pillow Packing Machine with 230 packs/min High-Speed for Horizontal Flow Packaging
Specifications
Brand Name :
LTPM CHINA
Model Number :
KD-Series
Certification :
CE, GMP, SGS, BV
Place of Origin :
Zhejiang Province,China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C,D/A,D/P,T/T,MoneyGram
Supply Ability :
45 sets/month
Delivery Time :
25 days
Packaging Details :
Export Standard Wooden Case
Function :
PACKING
Packaging Type :
Stand-up Pouch, BAGS, Film, FOIL, Pouch
Voltage :
220V,50/60HZ, Single Phase
Packing Range :
10-1000g
Packing accuracy :
0.1-1.0g
Dimension :
(L)4020*(W)720*(H)1320mm
Weight :
430kg
Description
Fully Automatic Disposable Hotel Supplies Pillow Packaging Machine
Advanced automated packaging solution designed for disposable compressed towels, bath towels, and various hotel supply items with exceptional precision and efficiency.
Production Efficiency & Cost-Effectiveness
High-speed mass production capability reaching up to 230 packs per minute, ideal for large-scale operations in hospitality and household chemical industries, significantly reducing per-unit packaging costs.
Precision Control & Synchronization
Advanced servo-driven systems ensure perfect synchronization of film feeding, sealing, cutting, and product conveying operations even at maximum speeds, eliminating misalignment and material waste.
Material Compatibility & Flexibility
Versatile packaging capabilities for various solid products including biscuits, candies, instant noodles, pharmaceutical blisters, hardware components, toys, and more. Quick adjustment mechanisms enable fast changeovers between different product sizes and shapes.
Key Features
  • Servo control system with instant bag length setting and cutting, eliminating idle adjustment time and saving packaging film
  • Photoelectric sensor technology for automatic product tracking and precise bag formation
  • User-friendly human-machine interface for quick parameter configuration
  • Automatic fault self-diagnosis with clear error information display
  • High-sensitivity photoelectric tracking with digital sealing and cutting position input
  • Independent PID temperature control for optimal adaptation to various packaging materials
  • Positioning stop function to prevent sealing knife sticking and eliminate film waste
  • Simplified transmission system for reliable performance and easy maintenance
  • Full software-based control for convenient function adjustments and future technical upgrades
  • Automatic film centering system eliminating manual material level adjustments
Technical Specifications
Film Width Maximum 350mm
Film Width Range 140-250mm / 250-320mm / 320-350mm
Bag Width 55-110mm / 110-145mm / 145-160mm
Bag Length Minimum 65mm
Product Height Maximum 35mm / 50mm
Speed 40-200 bags per minute
Weight 430kg
Power 220V, 50/60Hz, Single Phase
Dimensions 4020mm (L) * 720mm (W) * 1320mm (H)
Film Roll Diameter Maximum 320mm

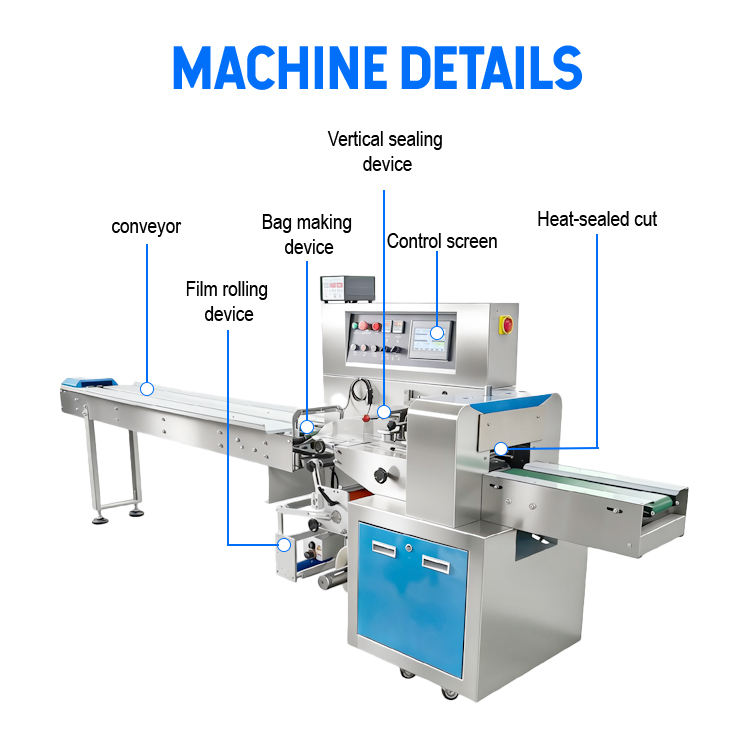

Product Details
