High Quality Digital Multi-Functional PLC Semi-Automatic Plastic Wrapping Pillow Bag Packaging Machine for Food Items
High Quality Digital Multi-Functional PLC Semi-Automatic Plastic Wrapping Pillow Bag Packaging Machine for Food Items
Specifications
Brand Name :
LTPM CHINA
Model Number :
KD-Series
Certification :
CE, GMP, SGS, BV
Place of Origin :
Zhejiang Province,China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C,D/A,D/P,T/T,MoneyGram
Supply Ability :
45 sets/month
Delivery Time :
25 days
Packaging Details :
Export Standard Wooden Case
Function :
PACKING
Packaging Type :
Stand-up Pouch, BAGS, Film, FOIL, Pouch
Voltage :
220V,50/60HZ.2.4kw-4kw
Packing Range :
10-1000g
Packing accuracy :
0.1-1.0g
Dimension :
(L)*(W)*(H):4050*1600*1495 mm
Weight :
950kg
Description

Products Description

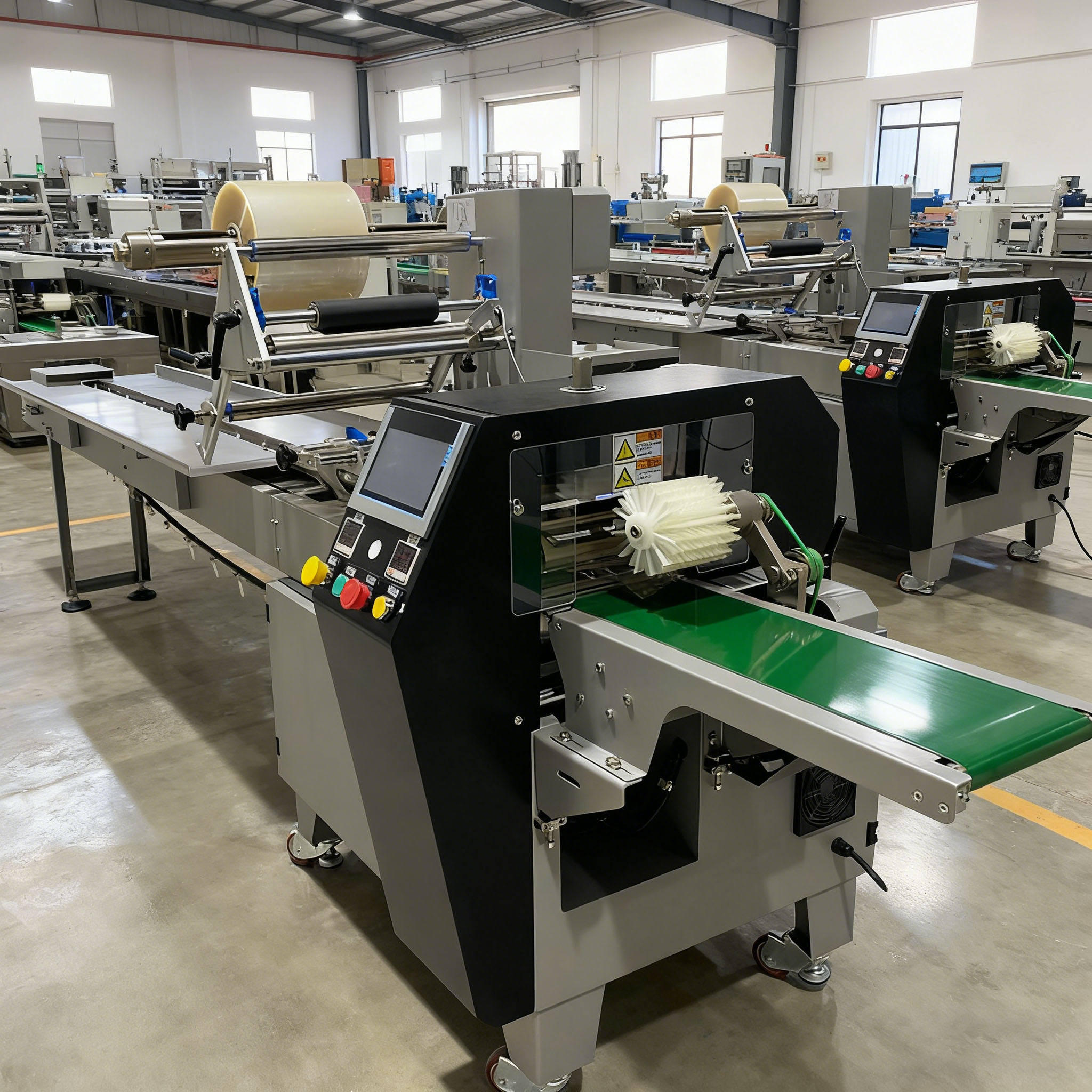

The KD-Series model pillow packaging machine is a semi-automatic horizontal packaging device that integrates digital control and PLC (Programmable Logic Controller) technology. Designed for efficiently and precisely packaging solid products, its core features are user-friendly operation, high precision, and versatility, allowing it to flexibly meet production needs in various industries such as food, daily necessities, and hardware.



Features


‌1. Packing Speed: Highly efficient, ranging from approximately 40-180 bags/minute, with a maximum of 150-200 bags/minute.
2. Power Supply & Consumption: Highly adaptable, supporting multiple voltages (110V / 220V / 380V) with a power rating of about 2.6-2.8 KW.
3. Packaging Dimensions: Bag width range of 50-160 mm, maximum product height of 60 mm, and bag length can be customized as required.
4. Equipment Specifications: Weight around 450-500 kg, overall dimensions of 4030*1070*1330 mm.

Main Technical Parameter

Model
KD-350
KD-450
KD-600
KD-900
Film width
max 350 mm
max 450 mm
max 6000 mm
max 900 mm
Bag width
50-160 mm
50-180 mm
150-280 mm
250-430 mm
Bag length
as long as u want
Product height
Max 60 mm
Max 75 mm
Max 200 mm
Max 350 mm
Film roll diameter
Max 320 mm
Packing Speed
40-180 bags/ min
30-150 bags/ min
20-150 bags/ min
20-120 bags/ min
Packing material
OPP, CPP, OPP/PE, PET/ PE, Aluminum, and etc.
Film thickness
0.03-0.1 mm
Power
2.4 kw
2.6 kw
2.8 kw
6 kw
Machine Size
(L)*(W)*(H):
4030*770*1420 mm
(L)*(W)*(H):4030*820*1420 mm

(L)*(W)*(H):
4030*1070*1330 mm
(L)*(W)*(H):4050*1600*1495 mm
Machine weight
About 450kg
About 500kg
About 600kg
About 950kg
Optional function
Date printing, labeling, nitrogen air filling, hole pouch, Linked bags, and etc.
