Nickel-plated Alloy Steel 40T Truck Scale Load Cell Module, Analog Load Cell for Vehicle Scale
Nickel-plated Alloy Steel 40T Truck Scale Load Cell Module, Analog Load Cell for Vehicle Scale
Nickel-plated Alloy Steel 40T Truck Scale Load Cell Module, Analog Load Cell for Vehicle Scale
Nickel-plated Alloy Steel 40T Truck Scale Load Cell Module, Analog Load Cell for Vehicle Scale
Specifications
Brand Name :
KELI
Model Number :
QS
Certification :
OIML
Place of Origin :
China
MOQ :
8pcs
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
large quantity
Delivery Time :
5~25 days
Packaging Details :
carton
Material :
Alloy Steel
Capacity :
5~40T
Type :
Beam load cell
Waterproof :
IP68
Accuracy :
C3
Description

Nickel-plated Alloy Steel Load Cell for Truck Scale


Load Cell Features:

* Capacity: 5t to 40t

* Steel ball loading, strong restoration ability

* Easy complete installation, high weighing accuracy

* OIML C3 certificate

* Alloy Steel

Load Cell Applications:

* Truck scale

* Railway scale

* Blending scale and all kinds of weighing apparatus

Load Cell Specifications:

Rated capacity: 5ton to 50ton Operating temperature range: -30 to +70℃
Rated output:2.0±0.002mv/v Maximum safe overload；150% OF R.C
Combined error:±0.03% F.S Ultimate safe overload；200% OF R.C
Non-repeatability:±0.02% F.S Recommended Excitation；10 to 12V DC
Non-linearity:±0.02% F.S Maximum Excitation；15V DC
Hysteresis error:±0.02% F.S Environment protection: IP68
Zero balance: ±1% F.S Input impedance: 750±10Ω
Creep error(30minutes): ±0.02% F.S Output impedance: 702±3Ω; 703±5Ω(cable≥15m)；
Temperature effect on zero: ±0.02% F.S Insulation resistance at 50V DC: ≥5000MΩ
Temperature effect on output: ±0.02% F.S Material: nickel-plated alloy steel；
Compensated temperature range: -10 to +40℃

Cable length: 5.2meter(5t);8meter(10t); 10meter(15t);

10/12meter(20t);12/16meter(25t~50t),diameter 6mm

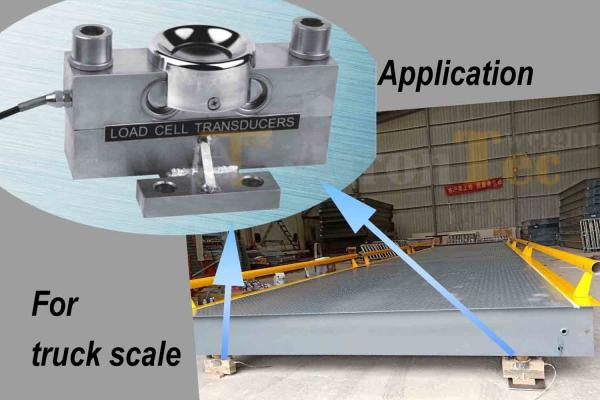

Load Cell Picture:
Nickel-plated Alloy Steel 40T Truck Scale Load Cell Module, Analog Load Cell for Vehicle Scale
