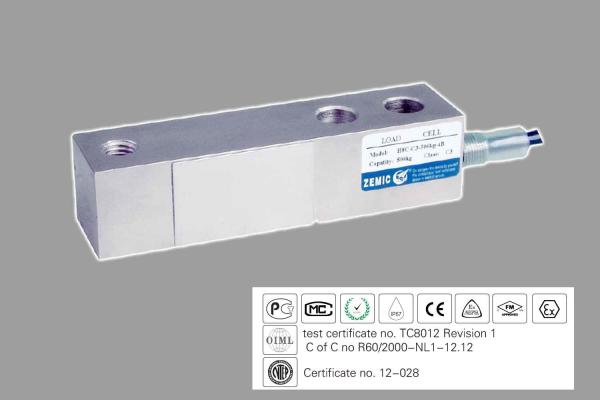

H8C High Accuracy IP67 Shear Beam Load Cell Nickel Plated Alloy Steel Material
H8C High Accuracy IP67 Shear Beam Load Cell Nickel Plated Alloy Steel Material
Specifications
Model Number :
H8C
Place of Origin :
China
MOQ :
20 pcs
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
large quantity
Delivery Time :
5~25 days
Packaging Details :
carton
Material :
Alloy steel
Capacity :
0.5t,1t,2t,2.5t,3t,4t,5t,6t,7.5t
Accuracy :
C3,C4,C5,A5M,B10M
Output sensitivity :
3.0±0.003mV/V, 2.0±0.002mV/V
Input resistance :
350±3.5Ω
Output resistance :
350±3.5Ω
Description

H8C Nickel Plated Alloy Steel IP67 Shear Beam Load Cell

Features:

* Nickel plated alloy steel IP67 shear beam load cell(100kg,250kg are bending beam load cells);
* Adhesive sealed;
* Suitable platform weighing,bed weighing,etc.
* High accuracy
* High reliability
* Current calibrated(sc-option)

Specifications:

Maximum capacity(Emax) t 0.5/1/2/2.5/3/4/5/6/7.5
klb 1/1.5/2/2.5/3/4/5/7.5/10/20
Accuracy class 　 C3 C4 C5 A5M B10M
Approvals 　 OIML R60 C3 OIML R60 C4 OIML R60 C5 III 5000 Multiple III L 10000 Multiple
Maximum number of load cell intervals(nLC) 　 3000 4000 5000 5000 10000
Ratio of minimum LC Verification interval Y=Emax/Vmin 　 10000 14000 18000 15000 10000
Combined error %FS ±0.020 ±0.018 ±0.010 ±0.026 ±0.050
Creep %FS/30min ±0.016 ±0.012 ±0.010 ±0.017 ±0.040
Temperature effect on sensitivity %FS/10℃ ±0.011 ±0.009 ±0.008 ±0.013 ±0.040
Temperature effect on zero %FS/10℃ ±0.015 ±0.010 ±0.007 ±0.014 ±0.020
Output sensitivity(=FS) mV/V 3.0±0.003 2.0±0.002
Input resistance Ω 350±3.5
Output resistance Ω 350±3.5
Insulation resistance MΩ ≥5000(50VDC)
Zero balance %FS ±1.0
Compensated temperature ℃ -10~+40
Operating temperature ℃ -35~+70
Excitation,recommended voltage V 5~12(DC)
Excitation maximum V 18(DC)
Safe overload %FS 150
Ultimate overload %FS 300
Recommended torque on fixation N.m M12:100, M18:200, M24:700
Ingress protection(according to EN 60529) 　 IP67
ATEX classification(optional) Operating temperature ℃ -20~+70
II 1G Ex ia II 1C T4 II 1D Ex iaD20 T73℃ II3G Ex nL II C T4
Note:"S1" Output sensitivity is 2.0±0.002mV/V
