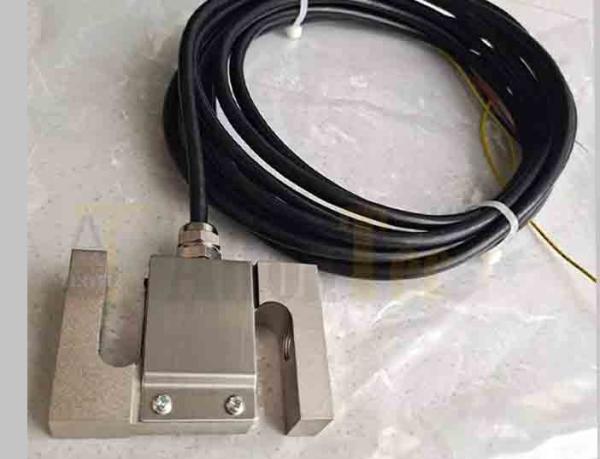

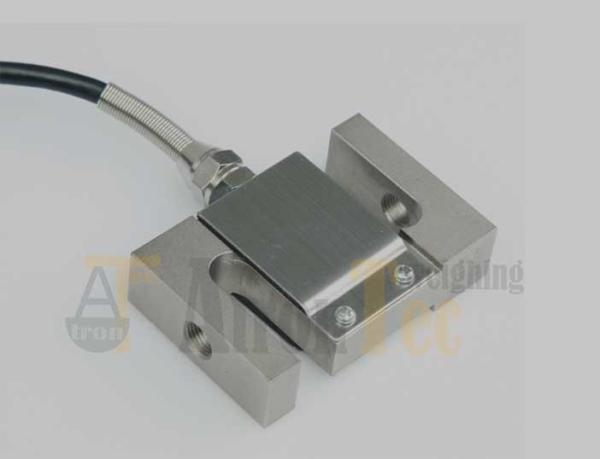

S Type Crane Scales Load Cell 500kg Nickel Plated
S Type Crane Scales Load Cell 500kg Nickel Plated
S Type Crane Scales Load Cell 500kg Nickel Plated
S Type Crane Scales Load Cell 500kg Nickel Plated
Specifications
Brand Name :
Atrontec
Model Number :
tsc-m
Place of Origin :
China
MOQ :
5pcs
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
large quantity
Delivery Time :
5~15 days
Packaging Details :
carton
Material :
Alloy steel plated with nickel
Capacity :
50kg,100kg,200kg,300kg,500kg
Type :
S-type
IP :
IP65
Cable length :
5m
Wiring :
6-wires
Description

S-type Alloy Steel Load Cell

Features:

* Tight construction

* High accuracy

* High stability

* Alloy steel plated with nickel

* Suitable for crane scales,mechanical scales and weighing control,etc.

Schematic:

* Green: +input

* Black: +input

* White: +output

* Red: -output

* Yellow: +sense

* Blue: -sense

S Type Crane Scales Load Cell 500kg Nickel Plated

Specifications:
* Sensitivity: 2±0.002 mV/V
* Non-repeatability: ≤ 0.01%R.C.
* Hysteresis: ≤ 0.02%R.C.
* Non-linearity: ≤ 0.02%R.C.
* Creep(in 30min): ≤ 0.02%R.C.
* Zero balance: ≤ 1%rR.C.
* Temp. compendated range: -10ºC~+40ºC
* Operating temp. range: -20ºC~+60ºC
* Temp. coefficient on sensitivity: ≤ 0.002% Load/ºC
* Temp. efficient on zero balance: ≤0.002%R.C./ºC
* Input Impedance: 381±4 Ω
* Onput Impedance: 350±1 Ω
* Insulation resistance: ≥5000 MΩ(50V DC)
* Recommended excitation voltage: 5~15V(DC/AC)
* Max. excit. voltage: 20V(DC/AC)
* Safe overload: 150%R.C.
* Ultimated overload: 300%R.C.
* IP rating: IP65
* Cable length: 5m

Dimensions:

S Type Crane Scales Load Cell 500kg Nickel Plated

Capacity H T(2X) W C E
50kg 77mm M10X1 18.5mm 10mm 10mm
100kg 77mm M10X1 18.5mm 10mm 10mm
200kg 77mm M10X1 18.5mm 10mm 10mm
300kg 77mm M10X1 24.4mm 10mm 10mm
500kg 77mm M10X1 24.4mm 12mm 10mm
