Single Point Stainless Steel Load Cell Module High Accuracy For Belt Scales
Single Point Stainless Steel Load Cell Module High Accuracy For Belt Scales
Specifications
Brand Name :
ZEMIC
Model Number :
BM6G
Place of Origin :
China
MOQ :
100 PCS
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
large quantity
Delivery Time :
5~25 days
Packaging Details :
carton
Material :
Stainless steel
IP rating :
IP68/IP69K
Max. platform size :
800*800 mm for 100~500kg
Description

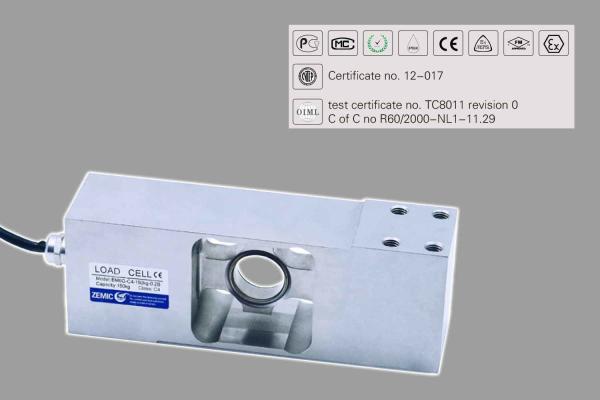

BM6G Stainless Steel IP68/IP69K Single Point Load Cell

Features:

* Stainless steel IP68/IP69K single point load cell;
* Suitable for platform,belt scales and other weighing devices;
* Maximum platform size 800*800mm(for 100~500kg);
* Maximum platform size 400*400mm(for 10~50kg);
* 10kg only available with PTB certificate D09-10.06 revision 1 of C R60/2000 DE1-10.02;
* 10kg,20kg,50kg also available with C4MR approval with PTB certificate D09-10.06 revision 1, C of C R60/2000 DE1-10.02(Y-4000 Z=6000).

Specifications:

Capacity kg 10/20/50/60/75/100/150/200/300/400/500/600
Accuracy 　 C3 C4 A6M A6S
Accuracy class 　 OIML R60 C3 OIML R60 C4 　 　
Maximum number of load cell intervals(nLC) 　 3000 4000 　 　
Ratio of minimum LC Verification interval Y=Emax/Vmin 　 10000 15000 15000 20000
Combined error %FS ±0.0200 ±0.0173 ±0.0113 ±0.009
Creep %FS/30min ±0.0245 ±0.0184 ±0.0184 ±0.008
Temperature effect on sensitivity %FS/10℃ ±0.0117 ±0.0088 ±0.0088 ±0.006
Temperature effect on zero %FS/10℃ ±0.0140 ±0.0093 ±0.0093 ±0.007
Output sensitivity(=FS) mV/V 2.0±0.2
Input resistance Ω 10kg/20kg/50kgSE/75kgSE/100kgSE 100kg~600kg
380±15 350±3.5
Output resistance Ω 351±3.5
Insulation resistance MΩ ≥5000(50VDC)
Zero balance %FS ±2.0
Compensated temperature ℃ 　
Operating temperature ℃ 　
Storage temperature ℃ 　
Excitation,recommended voltage V 5~12(DC)
Excitation maximum V 18(DC)
Safe overload %FS 150
Ultimate overload %FS 300
Remmended torque on fixation N.m 10kg/20kg/50kgSE/75kgSE/100kgSE 100kg~600kg
10 20
Ingress protection(according to EN 60529) 　 IP68/IP69K
ATEX classification(optional) 　 II1G Ex ia II1C T4 II1D Ex iaD20 T73℃ II3G Ex nL II C T4
Note:"S1" output sensitivity is 2.0±0.002mV/V
