30t Truck Scale Beam Load Cell Insulation Resistance
30t Truck Scale Beam Load Cell Insulation Resistance
30t Truck Scale Beam Load Cell Insulation Resistance
30t Truck Scale Beam Load Cell Insulation Resistance
30t Truck Scale Beam Load Cell Insulation Resistance
30t Truck Scale Beam Load Cell Insulation Resistance
Specifications
Brand Name :
KELI
Model Number :
QS
Certification :
OIML
Place of Origin :
China
MOQ :
8pcs
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
large quantity
Delivery Time :
5~25 days
Packaging Details :
carton
Material :
Alloy Steel
Capacity :
30T
Type :
Beam load cell
Waterproof :
IP68
Accuracy :
C3
Description

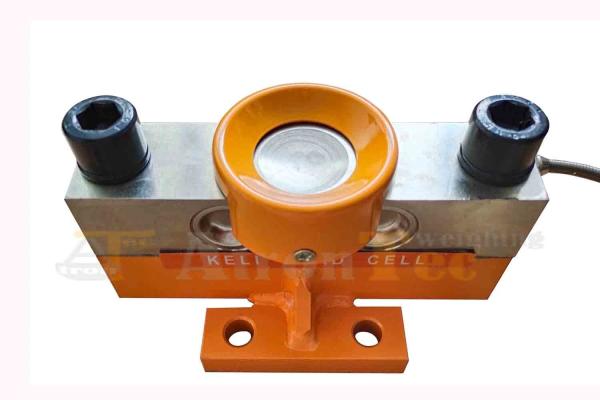

QS Stainless Steel Load Cell for Truck Scale


Load Cell Features:

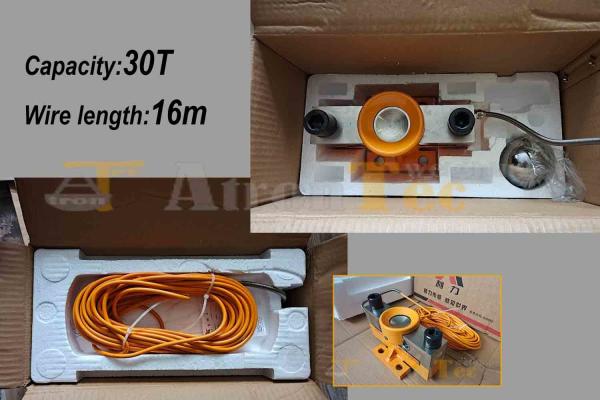

* Capacity: 30T

* Wire length: 12m or 16m

* Steel ball loading, strong restoration ability

* Easy complete installation, high weighing accuracy

* OIML C3 certificate

* Alloy Steel


Load Cell Specifications:

Rated capacity: 5ton to 50ton Operating temperature range: -30 to +70℃
Rated output:2.0±0.002mv/v Maximum safe overload；150% OF R.C
Combined error:±0.03% F.S Ultimate safe overload；200% OF R.C
Non-repeatability:±0.02% F.S Recommended Excitation；10 to 12V DC
Non-linearity:±0.02% F.S Maximum Excitation；15V DC
Hysteresis error:±0.02% F.S Environment protection: IP68
Zero balance: ±1% F.S Input impedance: 750±10Ω
Creep error(30minutes): ±0.02% F.S Output impedance: 702±3Ω; 703±5Ω(cable≥15m)；
Temperature effect on zero: ±0.02% F.S Insulation resistance at 50V DC: ≥5000MΩ
Temperature effect on output: ±0.02% F.S Material: nickel-plated alloy steel；
Compensated temperature range: -10 to +40℃

Cable length: 5.2meter(5t);8meter(10t); 10meter(15t);

10/12meter(20t);12/16meter(25t~50t),diameter 6mm


Load Cell Wiring and Dimensions:
30t Truck Scale Beam Load Cell Insulation Resistance

Load Cell Application:

30t Truck Scale Beam Load Cell Insulation Resistance
