1T Load Cell Module Nickel Plated IP67 Shear Beam Load Cell
1T Load Cell Module Nickel Plated IP67 Shear Beam Load Cell
1T Load Cell Module Nickel Plated IP67 Shear Beam Load Cell
1T Load Cell Module Nickel Plated IP67 Shear Beam Load Cell
1T Load Cell Module Nickel Plated IP67 Shear Beam Load Cell
1T Load Cell Module Nickel Plated IP67 Shear Beam Load Cell
1T Load Cell Module Nickel Plated IP67 Shear Beam Load Cell
1T Load Cell Module Nickel Plated IP67 Shear Beam Load Cell
Specifications
Brand Name :
ZEMIC
Model Number :
H8C
Certification :
OILM,NTEP,CE,ROHS
Place of Origin :
China
MOQ :
5pcs
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
large quantity
Delivery Time :
5~15 days
Packaging Details :
carton
Material :
Alloy steel plated with nickel
Capacity :
0.5/1/2/2.5/3/4/5/6/7.5T
Type :
Shear beam
IP :
IP67
Cable length :
4m or 6m
Wiring :
4-wires
Description

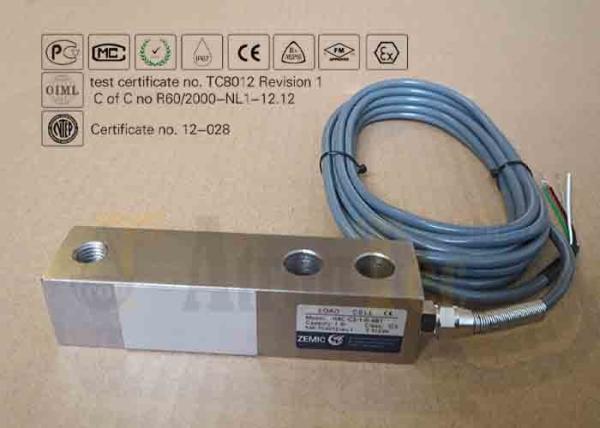

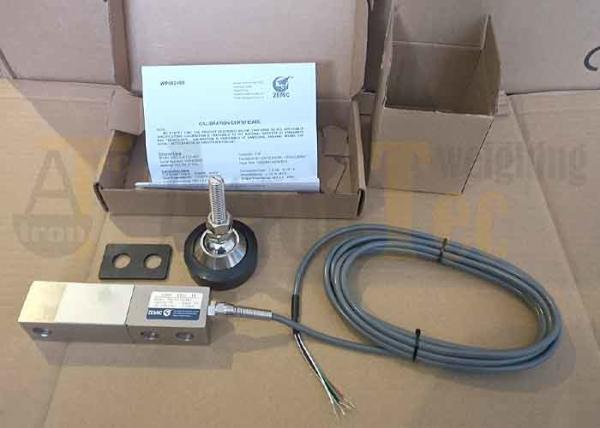

Shear Beam Alloy Steel Load Cell ZEMIC H8C

Features:

* Nickel plated alloy steel IP67 shear beam load cell (100 kg, 250kg are bending beam load cells)
* Adhesive sealed
* Suitable platform weighing, bed weighing, etc.
* High accuracy
* High reliability
* Current calibrated (sc-option)

Wiring:

- Shielded, 4 conductor cable
- Cable diameter: Φ5mm.
- Standard cable length for 100kg - 2t: 4m and 6m for the higher capacities.
- Shield in not connected to the element.

1T Load Cell Module Nickel Plated IP67 Shear Beam Load Cell

Specifications:

Maximum capacity ( Emax ) t 0.5/1/2/2.5/3/4/5/6/7.5
klb 1/1.5/2/2.5/3/4/5/7.5/10/20
Accuracy class C3 C4 C5 A5M B10M
Approvals OIML R60 C3 OIML R60 C4 OIML R60 C5 Ⅲ 5000 Multiple Ⅲ L 10000 Multiple
Maximum number of load cell intervals ( nLC ) 3000 4000 5000 5000 10000
Ratio of minimum LC verification interval Y=Emax/vmin 10000 14000 18000 15000 10000
Combined error %FS ±0.020 ±0.018 ±0.010 ±0.0267 ±0.050
Creep %FS/30min ±0.016 ±0.012 ±0.010 ±0.017 ±0.040
Temperature effect on sensitivity %FS/10℃ ±0.011 ±0.009 ±0.008 ±0.013 ±0.040
Temperature effect on zero %FS/10℃ ±0.015 ±0.010 ±0.007 ±0.014 ±0.020
Output sensitivity ( = FS ) mV/V 3.0±0.003 2.0±0.002
Input resistance Ω 350±3.5
Output resistance Ω 350±3.5
Insulation resistance MΩ ≥ 5000(50VDC)
Zero balance %FS ±1.0
Compensated temperature ℃ -10～+40
Operating temperature ℃ -35 ～ +70
Excitation, recommended voltage V 5 ～ 12(DC)
Excitation maximum V 18(DC)
Safe overload %FS 150
Ultimate overload %FS 300
Recommended torque on fixation N.m M12: 100, M18: 200, M24: 700
Ingress protection (according to EN 60529) IP67
ATEX classification (optional) Operating temperature ℃ -20 ～ +40
II1G Ex ia II1C T4 II1D Ex iaD20 T73℃ II3G Ex nL II C T4
"S1" Output Sensitivity is 2.0±0.002MV/V

Dimensions:

1T Load Cell Module Nickel Plated IP67 Shear Beam Load Cell

1T Load Cell Module Nickel Plated IP67 Shear Beam Load Cell
