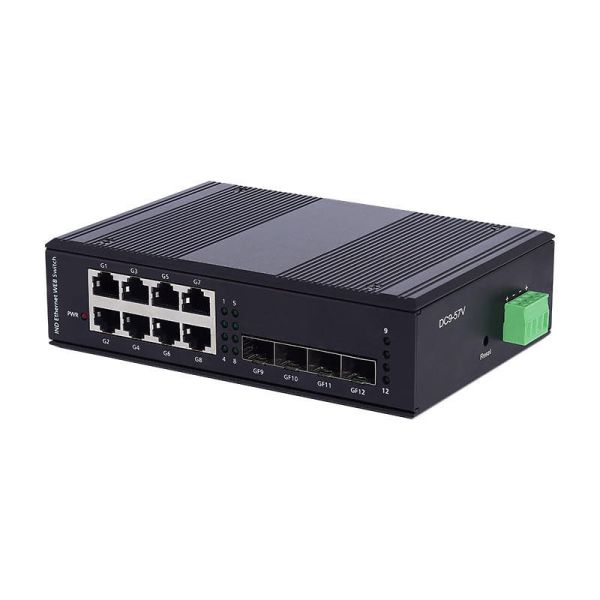

DIN Rail Web Managed Switch Industrial 4 SFP Fiber Slot 8 Gigabit RJ45 PoE Ports
DIN Rail Web Managed Switch Industrial 4 SFP Fiber Slot 8 Gigabit RJ45 PoE Ports
DIN Rail Web Managed Switch Industrial 4 SFP Fiber Slot 8 Gigabit RJ45 PoE Ports
DIN Rail Web Managed Switch Industrial 4 SFP Fiber Slot 8 Gigabit RJ45 PoE Ports
Specifications
Delivery Time :
5-7 days
Brand Name :
OEM
Certification :
CE ROSH FCC ISO
Supply Ability :
20000pcs/Month
Model Number :
ATD-IDSP4SF8G-WEB
Packaging Details :
1pcs/box
Payment Terms :
T/T
Place of Origin :
CHINA
Description

Industrial Web Managed PoE Switch, 4 SFP Fiber Slots + 8 Gigabit RJ45 PoE Ports, PoE+ 802.3af/at, IP40 DIN Rail, Wide Temp for Multi-Fiber Network & High-Density Surveillance

Product Description

This high-port-density industrial switch is engineered for projects that demand multiple fiber connections and mass PoE device access. It acts as an ideal network convergence node for large-scale surveillance, factory networking and outdoor IoT solutions.
Four universal SFP slots support various fiber modules, enabling multi-channel long-distance data transmission and flexible network expansion. The eight gigabit PoE ports follow IEEE 802.3af/at specifications, powering IP cameras, wireless APs and PoE sensors directly without separate power adapters, greatly simplifying on-site wiring. The built-in web management page lets you check port status and modify basic settings anytime via a browser.
Featured with reinforced IP40 aluminum alloy casing, the device is dust-proof and anti-interference. Fanless passive cooling ensures silent operation and reliable long-term use. Designed for DIN-rail installation, it saves cabinet space and works steadily from -40℃ to 75℃. Dual redundant DC power input prevents unexpected network interruptions in rigorous working scenarios.

Key Features

  • 4 Gigabit SFP slots, wide compatibility with fiber modules for multi-link long-range transmission
  • 8 auto-negotiation gigabit PoE ports, fully compliant with IEEE 802.3af/at PoE+ standards
  • Simplified web management, effortless port monitoring and daily parameter configuration
  • Heavy-duty IP40 metal enclosure, dustproof and shock-resistant for industrial applications
  • Fanless cooling design, no operational noise, low failure rate and longer service life
  • Standard DIN-rail mounting, easy installation and flexible layout in equipment cabinets
  • Extended working temperature: -40℃ ~ 75℃, adapts to indoor and outdoor harsh conditions
  • Dual redundant DC power input, guarantees continuous and stable network operation
  • Auto MDI/MDIX, plug-and-play design, excellent compatibility with mainstream PoE terminals

Product Specifications

Item Specification
Product Name Industrial Gigabit Switch (4 SFP + 8 PoE Ports)
Port Configuration 4 × Gigabit SFP Slots, 8 × 10/100/1000Mbps PoE RJ45 Ports
PoE Protocol IEEE 802.3af / IEEE 802.3at (PoE+)
Single Port Max PoE Output 30W
Total PoE Power Budget af＜120W,at＜240W
Management Mode Web Management Only
Main Functions Port status monitoring, basic network configuration
Protection Class IP40
Housing Material Aluminum Alloy
Cooling Mode Fanless Passive Heat Dissipation
Installation DIN-Rail Mount
Operating Temperature -40℃ ~ 75℃
Power Supply Dual Redundant DC 12V ~ 56V
Certifications CE, FCC, RoHS
