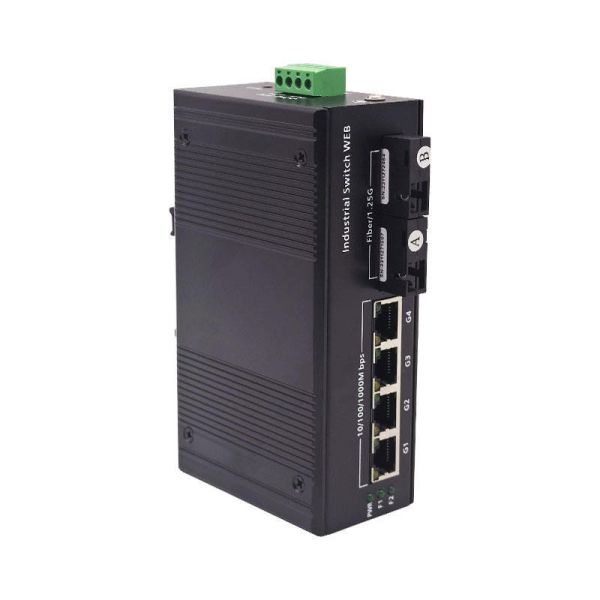

IP40 Web Managed Switch Industrial Gigabit PoE Switch 2 SC Fiber Port 4 RJ45 PoE Ports
IP40 Web Managed Switch Industrial Gigabit PoE Switch 2 SC Fiber Port 4 RJ45 PoE Ports
IP40 Web Managed Switch Industrial Gigabit PoE Switch 2 SC Fiber Port 4 RJ45 PoE Ports
IP40 Web Managed Switch Industrial Gigabit PoE Switch 2 SC Fiber Port 4 RJ45 PoE Ports
IP40 Web Managed Switch Industrial Gigabit PoE Switch 2 SC Fiber Port 4 RJ45 PoE Ports
IP40 Web Managed Switch Industrial Gigabit PoE Switch 2 SC Fiber Port 4 RJ45 PoE Ports
IP40 Web Managed Switch Industrial Gigabit PoE Switch 2 SC Fiber Port 4 RJ45 PoE Ports
IP40 Web Managed Switch Industrial Gigabit PoE Switch 2 SC Fiber Port 4 RJ45 PoE Ports
Specifications
Packaging Details :
1pcs/box
Supply Ability :
20000pcs/Month
Brand Name :
OEM
Model Number :
ATD-IDSP2F4G-WEB
Certification :
CE ROSH FCC ISO
Payment Terms :
T/T
Delivery Time :
5-7 days
Description

Web Managed Industrial Gigabit PoE Switch, 2 SC Fiber Ports + 4 RJ45 PoE Ports, IEEE 802.3af/at, IP40 Metal Case, DIN Rail Mount for Outdoor Surveillance & Industrial Network

Product Description

This industrial hybrid switch combines SC fiber access and PoE power supply, a practical choice for medium and short-range fiber networking and centralized power deployment.
Equipped with 2 standard SC fiber ports, it works seamlessly with mainstream fiber cables to achieve stable long-distance signal transmission. The 4 gigabit PoE ports integrate data transfer and power delivery, directly powering IP cameras, wireless access points and PoE sensors without extra power adapters. You can easily check port status and adjust basic parameters via the built-in web management page.
Crafted with reinforced IP40 aluminum alloy housing, the device features dustproof and anti-shock performance. Fanless cooling ensures silent operation and long service life. It adopts DIN-rail installation for easy deployment, and operates normally at -40℃ to 75℃. Dual DC redundant power input effectively prevents network interruptions in complex industrial and outdoor environments.

Key Features

  • 2 standard SC fiber ports, great compatibility with general fiber cables for reliable long-range transmission
  • 4*10/100/1000Mbps auto-adaptive PoE ports, compliant with IEEE 802.3af/at PoE+ protocol
  • Intuitive web management system, one-click access to port monitoring and simple configuration
  • Rugged IP40 dustproof & anti-vibration enclosure, specially engineered for industrial scenarios
  • Fanless passive heat dissipation, noise-free operation and lower maintenance costs
  • Space-saving DIN-rail mounting, simple installation and flexible layout
  • Extended operating temperature: -40℃ ~ 75℃, adapts to indoor, outdoor and cabinet environments
  • Dual redundant DC power supply, guarantees continuous network running
  • Auto MDI/MDIX function, plug and play, wide compatibility with PoE terminals

Product Specifications

Item Details
Product Model Industrial Gigabit Switch (2 SC Fiber + 4 PoE Ports)
Port Configuration 2 × SC Gigabit Fiber Ports, 4 × 10/100/1000Mbps PoE RJ45 Ports
PoE Standard IEEE 802.3af / IEEE 802.3at (PoE+)
Max Power per PoE Port 30W
Total PoE Power Budget af＜60W,at＜120W
Management Mode Web Management Only
Main Functions Port status check, basic parameter configuration
Protection Level IP40
Housing Material Aluminum Alloy
Cooling Mode Fanless Passive Cooling
Installation DIN-Rail Mount
Operating Temperature -40℃ ~ 75℃
Power Input Dual Redundant DC 12V - 56V
Certifications CE, FCC, RoHS
