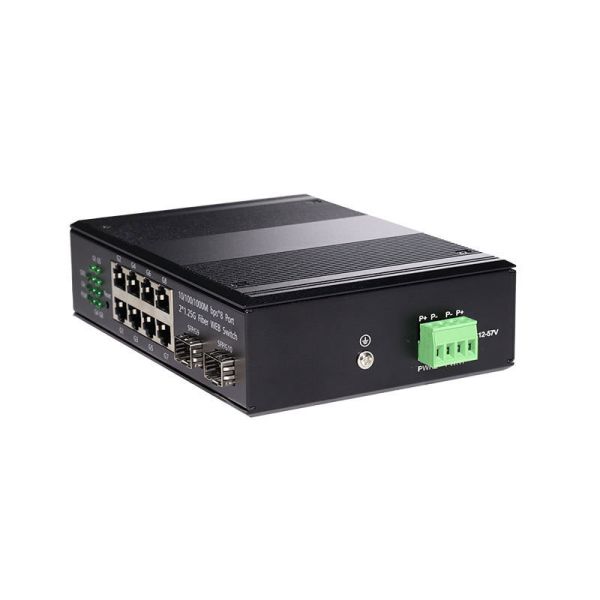

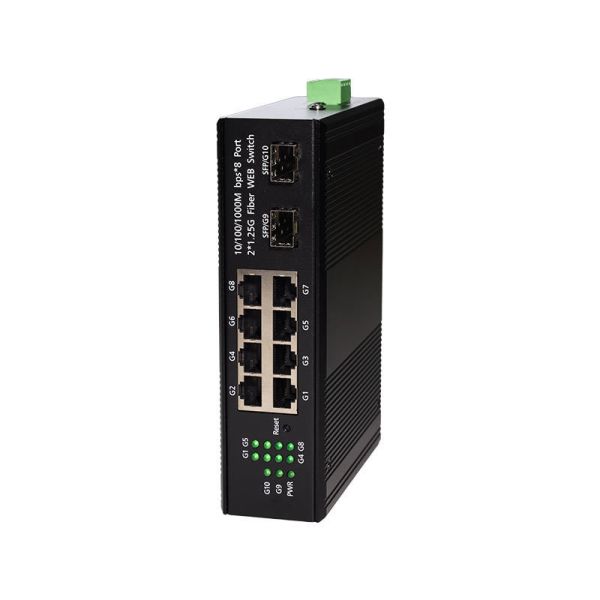

Industrial Web Managed PoE Switch 2 SFP Slots 8 Gigabit PoE Ports
Industrial Web Managed PoE Switch 2 SFP Slots 8 Gigabit PoE Ports
Industrial Web Managed PoE Switch 2 SFP Slots 8 Gigabit PoE Ports
Industrial Web Managed PoE Switch 2 SFP Slots 8 Gigabit PoE Ports
Industrial Web Managed PoE Switch 2 SFP Slots 8 Gigabit PoE Ports
Industrial Web Managed PoE Switch 2 SFP Slots 8 Gigabit PoE Ports
Specifications
Supply Ability :
20000pcs/Month
Model Number :
ATD-IDSP2SF8G-WEB
Place of Origin :
CHINA
Certification :
CE ROSH FCC ISO
Delivery Time :
5-7 days
Packaging Details :
1pcs/box
Brand Name :
OEM
Payment Terms :
T/T
Description

Web Managed Industrial PoE Switch, 2 SFP + 8 Gigabit PoE Ports, IP40, -40℃~75℃, Harsh Environment Network Solution

Product Description

This hybrid industrial switch integrates fiber uplink and PoE power supply, an ideal solution for long-distance network deployment and centralized power supply in industrial sites, road monitoring and outdoor cabinet applications.
Equipped with 2 gigabit SFP slots, it supports flexible fiber module matching to realize long-range data transmission and network expansion. The 8 gigabit PoE ports follow IEEE 802.3af/at standards, delivering data and power simultaneously to IP cameras, wireless access points and PoE sensors, simplifying on-site wiring greatly.
The intuitive web-based management system allows users to view port status and adjust basic settings effortlessly via common browsers. Adopting fanless aluminum alloy housing with IP40 protection, the device runs silently and resists dust. It supports DIN-rail installation and works steadily across -40℃ to 75℃. Dual redundant DC power input further safeguards continuous network operation under complex working conditions.

Key Features

  • 2 Gigabit SFP slots, flexible fiber connection for long-distance network extension
  • 8 auto-adaptive gigabit PoE RJ45 ports, compliant with IEEE 802.3af/at PoE+ protocol
  • Dedicated web management system, simple operation for daily port configuration and status check
  • High-strength IP40 aluminum shell, dust-proof and anti-interference for industrial use
  • Fanless passive cooling, no noise, lower failure rate and longer service life
  • Standard DIN-rail installation, compact structure, easy to install and maintain
  • Ultra-wide operating temperature range, adaptable to indoor and outdoor harsh environments
  • Dual redundant DC power input design, effectively avoid sudden network outages
  • Built-in Auto MDI/MDIX, plug and play, excellent compatibility with various PoE terminals

Product Specifications

Item Specification
Product Name Industrial Gigabit Switch (2 SFP + 8 PoE Ports)
Port Configuration 2 × Gigabit SFP Slots, 8 × 10/100/1000Mbps PoE RJ45 Ports
PoE Standard IEEE 802.3af / IEEE 802.3at (PoE+)
Single Port PoE Output Max 30W
Total PoE Budget af＜120W,at＜240W
Management Web Management Only
Basic Functions Port status monitoring & simple parameter configuration
Protection Grade IP40
Enclosure Material Aluminum Alloy
Cooling Mode Fanless Passive Heat Dissipation
Installation Type DIN-Rail Mount
Operating Temperature -40℃ ~ 75℃
Power Input Dual Redundant DC 12V ~ 57V
Certifications CE, FCC, RoHS
