100Mbps Fiber Media Converter 1 Fiber 8 RJ45 High Speed Ethernet To Fiber Network
100Mbps Fiber Media Converter 1 Fiber 8 RJ45 High Speed Ethernet To Fiber Network
100Mbps Fiber Media Converter 1 Fiber 8 RJ45 High Speed Ethernet To Fiber Network
100Mbps Fiber Media Converter 1 Fiber 8 RJ45 High Speed Ethernet To Fiber Network
100Mbps Fiber Media Converter 1 Fiber 8 RJ45 High Speed Ethernet To Fiber Network
100Mbps Fiber Media Converter 1 Fiber 8 RJ45 High Speed Ethernet To Fiber Network
Specifications
Standards Compliance :
IEEE 802.3, IEEE 802.3u
Power Supply :
External DC 5V or 12V
Place of Origin :
CHINA
Payment Terms :
T/T
Connector Type :
SC, ST, or LC
Storage Temperature :
-40°C to 85°C
Supply Ability :
20000pcs/Month
Data Rate :
100Mbps
Wavelength :
1310nm or 1550nm
Fiber Type :
Single-mode or Multi-mode
Delivery Time :
5-7 days
Interface :
RJ45 for Ethernet
Led Indicators :
Power, Link/Act, FDX/Col
Operating Temperature :
-10°C to 60°C
Media Type :
Fiber to Ethernet
Model Number :
ATD-MC1F8E
Certification :
CE ROSH FCC ISO
Transmission Distance :
Up to 20km (depending on fiber type)
Packaging Details :
1pcs/box
Humidity :
5% to 95% non-condensing
Brand Name :
OEM
MOQ :
2
Description

Fiber Media Converter 100Mbps 1 Fiber 8 RJ45– High-Speed Ethernet-to-Fiber Network

Product Overview

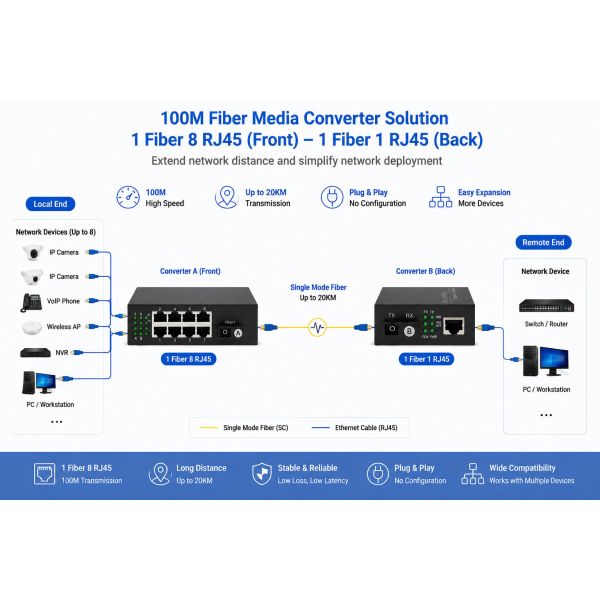

Reliable 100Mbps media converter with 1 SC fiber port and 8 RJ45 ports. Extends Ethernet networks up to 20KM. Ideal for IP cameras, VoIP, access points, and small office networks. Plug-and-play, compact, and compatible with standard fiber and network devices.

Product Description:
This 100Mbps 1 Fiber 8 RJ45 media converter enables smooth conversion between fiber optic and Ethernet networks. Supporting distances up to 20KM via single-mode fiber, it provides stable, low-latency, and reliable connections. The plug-and-play design allows quick deployment for IP surveillance systems, VoIP phones, access points, and other network devices. Its durable metal housing ensures heat dissipation and reliable operation in various environments.

Key Features:

  • 1 SC fiber port and 8 RJ45 ports (100Mbps)
  • Transmission distance up to 20KM over single-mode fiber
  • Plug-and-play, no configuration required
  • Compatible with standard Ethernet and fiber devices
  • Low latency, anti-interference design for stable connections
  • Durable metal housing with excellent heat dissipation
  • Ideal for IP cameras, VoIP, access points, and Ethernet network expansion

Specifications Table:

Feature Specification
Fiber Port Type 1 × SC Single-Mode
Ethernet Port Type 8 × RJ45 (10/100Mbps)
Fiber Transmission Distance Up to 20KM (single-mode fiber)
Media Type Supported Ethernet, IEEE802.3/802.3u
Power Supply DC 5V / 12V
Operating Temperature -10°C to 70°C
Storage Temperature -40°C to 85°C
Dimensions 150 × 105 × 30 mm (L×W×H)
Housing Material Metal, durable design
Plug & Play Yes
Application IP Surveillance, VoIP, Access Points, Ethernet Extension
