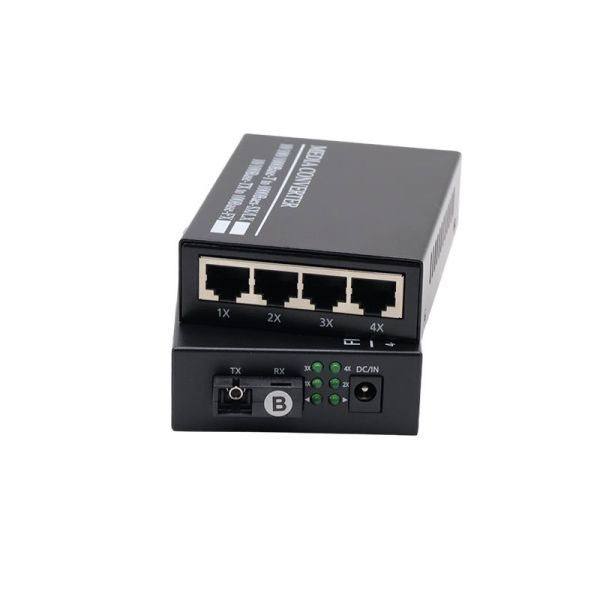

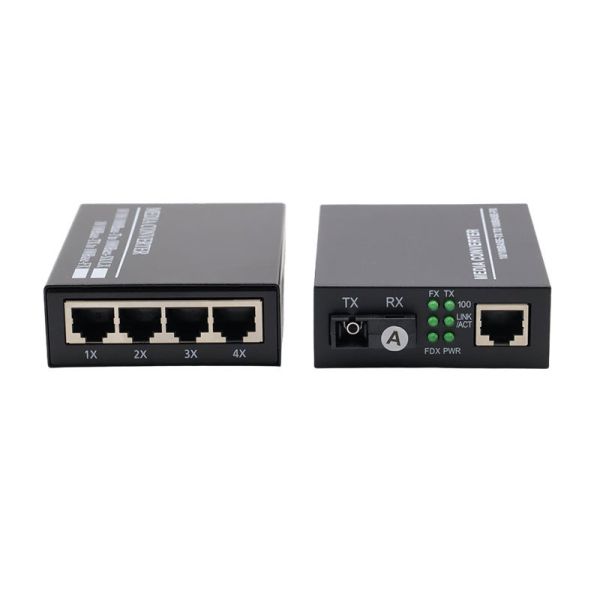

Fiber 100Mbps Media Converter 1 SC Fiber 4 RJ45 Port 20KM Single Mode
Fiber 100Mbps Media Converter 1 SC Fiber 4 RJ45 Port 20KM Single Mode
Fiber 100Mbps Media Converter 1 SC Fiber 4 RJ45 Port 20KM Single Mode
Fiber 100Mbps Media Converter 1 SC Fiber 4 RJ45 Port 20KM Single Mode
Fiber 100Mbps Media Converter 1 SC Fiber 4 RJ45 Port 20KM Single Mode
Fiber 100Mbps Media Converter 1 SC Fiber 4 RJ45 Port 20KM Single Mode
Fiber 100Mbps Media Converter 1 SC Fiber 4 RJ45 Port 20KM Single Mode
Fiber 100Mbps Media Converter 1 SC Fiber 4 RJ45 Port 20KM Single Mode
Specifications
Standards Compliance :
IEEE 802.3, IEEE 802.3u
Place of Origin :
CHINA
Fiber Connector Type :
SC/FC/ST (optional)
Brand Name :
OEM
Payment Terms :
T/T
Operating Temperature :
-10°C to 60°C
Data Rate :
100Mbps
Model Number :
ATD-MC1F4E
Supply Ability :
50000PCS/Month
Distance :
Up to 20km (single-mode), 2km (multi-mode)
Fiber Cable Type :
Single-mode or Multi-mode
Media Type :
Fiber to Ethernet
Humidity :
5% to 95% non-condensing
Ethernet Connector :
RJ45
Storage Temperature :
-40°C to 85°C
Led Indicators :
Power, Link/Act for fiber and Ethernet
Delivery Time :
5-7 days
Packaging Details :
1PCS/box
Transmission Mode :
Full Duplex / Half Duplex
Certification :
CE ROSH FCC ISO
Power Supply :
External 5V/12V DC adapter
Description

Fiber Media Converter 100Mbps 1 SC Fiber 4 RJ45 Port

Product Overview

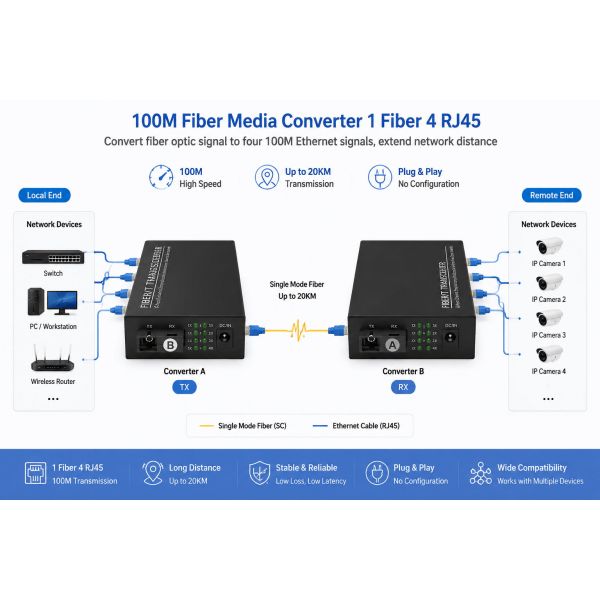

Reliable 100Mbps media converter with 1 SC fiber and 4 RJ45 ports. Extends Ethernet networks up to 20KM. Ideal for IP cameras, VoIP, access points, and small office networks. Plug-and-play, compact, and compatible with standard fiber and network devices.

Product Description:
This 100Mbps 1 Fiber 4 RJ45 media converter allows seamless conversion between fiber optic and Ethernet networks. Supporting distances up to 20KM via single-mode fiber, it ensures stable, low-latency connections. Plug-and-play design enables easy deployment for IP surveillance, VoIP phones, wireless access points, and other network devices. Durable metal housing provides heat dissipation and reliable operation in various environments.

Key Features:

  • 1 SC fiber port and 4 RJ45 ports (100Mbps)
  • Transmission distance up to 20KM over single-mode fiber
  • Plug-and-play, no configuration required
  • Compatible with standard Ethernet and fiber devices
  • Low latency and anti-interference design for stable connections
  • Durable metal housing with effective heat dissipation
  • Ideal for IP cameras, VoIP, access points, and Ethernet network expansion

Specifications Table:

Feature Specification
Fiber Port Type 1 × SC Single-Mode
Ethernet Port Type 4 × RJ45 (10/100Mbps)
Fiber Transmission Distance Up to 20KM (single-mode fiber)
Media Type Supported Ethernet, IEEE802.3/802.3u
Power Supply DC 5V / 12V
Operating Temperature -10°C to 70°C
Storage Temperature -40°C to 85°C
Dimensions 105 × 70 × 25 mm (L×W×H)
Housing Material Metal, durable design
Plug & Play Yes
Application IP Surveillance, VoIP, Access Points, Ethernet Extension
