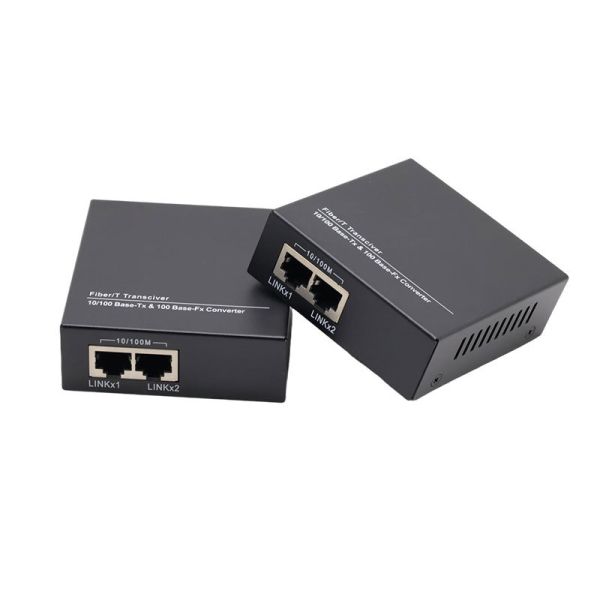

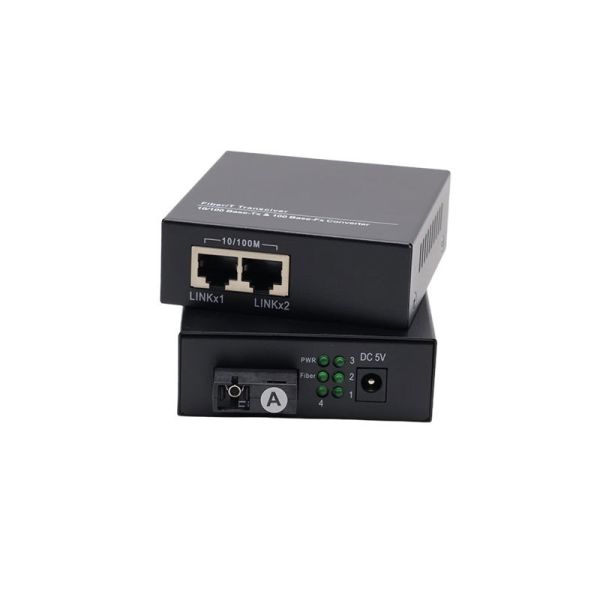

100 Mbps Fiber Media Converter 1 SC Fiber 2 RJ45 Long Distance Ethernet To Fiber Converter
100 Mbps Fiber Media Converter 1 SC Fiber 2 RJ45 Long Distance Ethernet To Fiber Converter
100 Mbps Fiber Media Converter 1 SC Fiber 2 RJ45 Long Distance Ethernet To Fiber Converter
100 Mbps Fiber Media Converter 1 SC Fiber 2 RJ45 Long Distance Ethernet To Fiber Converter
100 Mbps Fiber Media Converter 1 SC Fiber 2 RJ45 Long Distance Ethernet To Fiber Converter
100 Mbps Fiber Media Converter 1 SC Fiber 2 RJ45 Long Distance Ethernet To Fiber Converter
Specifications
Delivery Time :
5-7 days
Connector Type :
SC, ST, or LC
Transmission Distance :
Up to 20km (depending on fiber type)
Humidity :
5% to 95% non-condensing
Data Rate :
100Mbps
Certification :
CE ROSH FCC ISO
Standards Compliance :
IEEE 802.3, IEEE 802.3u
Led Indicators :
Power, Link/Act, Fiber Link
Mtbf :
Over 100,000 hours
Model Number :
ATD-MC1F2E
Supply Ability :
50000PCS/Month
Storage Temperature :
-40°C to 85°C
Payment Terms :
T/T
Media Type :
Fiber to Ethernet
Interface :
RJ45 for Ethernet, Fiber port for fiber
Place of Origin :
CHINA
Fiber Type :
Single-mode or Multi-mode
Brand Name :
OEM
Packaging Details :
1PCS/box
Power Supply :
External DC 5V/12V adapter
Description

100Mbps 1 Fiber 2 RJ45 Media Converter – Long-Distance Ethernet-to-Fiber

Product Overview

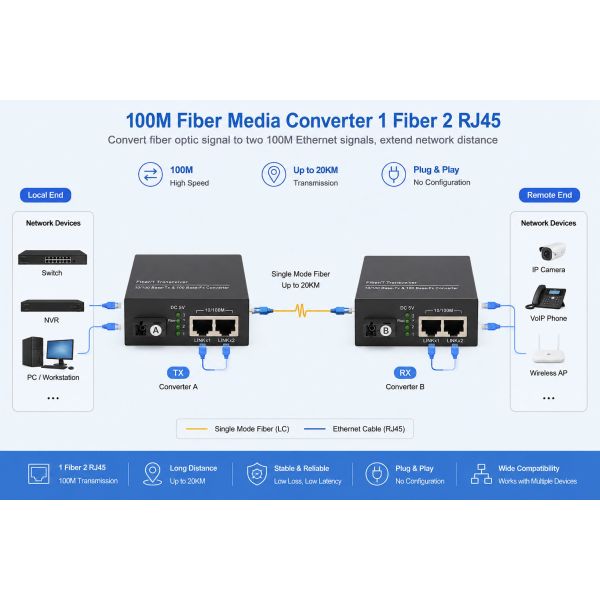

Reliable 100Mbps media converter with 1 SC fiber and 2 RJ45 ports. Extends Ethernet networks up to 20KM, perfect for IP cameras, VoIP, and access points. Plug-and-play, compact, and compatible with standard fiber and network devices for stable connections.

Product Description:
This 100Mbps 1 Fiber 2 RJ45 media converter enables seamless conversion between fiber and Ethernet networks. Designed for long-distance transmission of up to 20KM using single-mode fiber, it ensures stable and low-latency connections. Plug-and-play setup allows easy deployment for IP surveillance systems, VoIP phones, access points, and other network devices. The durable metal housing improves heat dissipation and ensures reliable operation in various environments.

Key Features:

  • 1 SC fiber port and 2 RJ45 ports (100Mbps)
  • Transmission distance up to 20KM (single-mode fiber)
  • Plug-and-play installation, no configuration needed
  • Compatible with Ethernet and fiber network devices
  • Low latency, anti-interference design for stable connections
  • Durable metal housing with excellent heat dissipation
  • Ideal for IP cameras, VoIP, access points, and Ethernet network extension

Specifications Table:

Feature Specification
Fiber Port Type 1 × SC Single-Mode
Ethernet Port Type 2 × RJ45 (10/100Mbps)
Fiber Transmission Distance Up to 20KM (single-mode fiber)
Media Type Supported Ethernet, IEEE802.3/802.3u
Power Supply DC 5V / 12V
Operating Temperature -10°C to 70°C
Storage Temperature -40°C to 85°C
Dimensions 105 × 70 × 25 mm (L×W×H)
Housing Material Metal, durable design
Plug & Play Yes
Application IP Surveillance, VoIP, Access Points, Ethernet Extension
