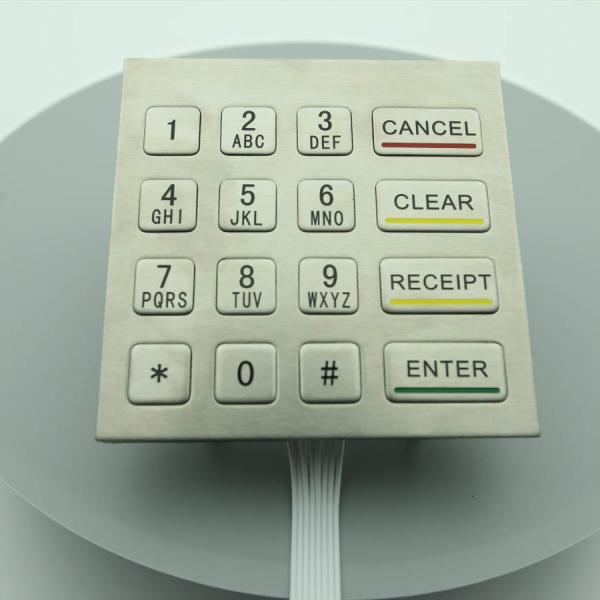

16 Keys Stainless Steel Vending Machine Keypad Waterproof Ip65
16 Keys Stainless Steel Vending Machine Keypad Waterproof Ip65
Specifications
Brand Name :
KMY
Model Number :
KMY3502A
Certification :
CE,ROHS,FCC
Place of Origin :
China
MOQ :
1 unit
Price :
40USD~80USD
Payment Terms :
T/T.west union
Supply Ability :
3000pcs per month
Delivery Time :
Within 3 working days for sample(US layout)
Packaging Details :
High quality carton with customized foam inside
Application :
Vending Machine
Size :
100x100 mm
Material :
304 Stainless Steel
Protection level :
IP65, IK07
Interface :
USB, PS/2
Warranty :
1 Year
Description

16 Keys Stainless Steel Vending Machine Keypad Waterproof Ip65

Dustproof Waterproof IP65 Stainless Steel 16 Keys Keypad 100x100mm Vending Machine Metal Numeric Keypad

Faceplate Dimensions(W×H):100×100mm

Product Introduction

  1. KMY3502A is a stainless steel keypad with both numeric and function keys .

  2. The layout could be any language and function keys could be customized .

  3. Front mounting installation .

Application

Ø Check-in Kiosk

Ø Boarding Kiosk

Ø Info-Kiosk

Ø Internet Kiosk

Ø Medical Kiosk

Ø Industrial control platform

Ø Gaming machine

Ø Access control platform

Physical Features

Ø Keypad made of high quality stainless steel

Ø Customizable layout, dimension and installation design

Ø Dustproof, waterproof, shake-proof, pickproof, drill-proof, bombproof

Ø Ports for optional eight external function keys, beeper and guide light

Ø IP Protection Class IEC/DIN/EN/ 60529:IP65

Ø IK Protection Class DIN EN 50102:IK07

Ø GW: 0.5KG

Environment Requirements

Ø Only the front panels shall be exposed to outdoor climate. The panels are dustproof, waterproof, shake-proof, pickproof, drill-proof and bombproof.

Ø Operating temperature range: 0℃‑ 45℃

Ø Storage temperature range: –25℃ - 65℃

Ø Maximum humidity in operating environment: 80%

Mechanical Performance

Running lifetime

> 5 years

Keys

Stainless steel material

Key lifetime

> 2,000,000 cycles per key

Force on keys

3~5N

Key Travel

0.45mm

Wide voltage input

5V DC +/- 20%

16 Keys Stainless Steel Vending Machine Keypad Waterproof Ip65
