Dustproof Waterproof 16 Keys Kiosk Metal Keypad IK07 ATM Machine Pad
Dustproof Waterproof 16 Keys Kiosk Metal Keypad IK07 ATM Machine Pad
Dustproof Waterproof 16 Keys Kiosk Metal Keypad IK07 ATM Machine Pad
Dustproof Waterproof 16 Keys Kiosk Metal Keypad IK07 ATM Machine Pad
Specifications
Model Number :
KMY3502H-YJ
Place of Origin :
China
Brand Name :
KMY
Certification :
CE,ROHS,FCC
MOQ :
1
Price :
It depends on quantity
Packaging Details :
High quality carton with customized foam inside
Delivery Time :
Within 3 working days for sample(US layout)
Payment Terms :
T/T.west union
Supply Ability :
3000pcs per month
Material :
Stainless Steel
Number Of Keys :
16
IP Protection Class :
IEC/DIN/EN/ 60529:IP65
IK Protection Class :
DIN EN 50102:IK07
Feature :
Drill-proof|Panel mount|Pickproof|Shake-proof|Waterproof
Description

Dustproof Waterproof Stainless Steel 16 Keys Kiosk Metal Keypad with LCD Display

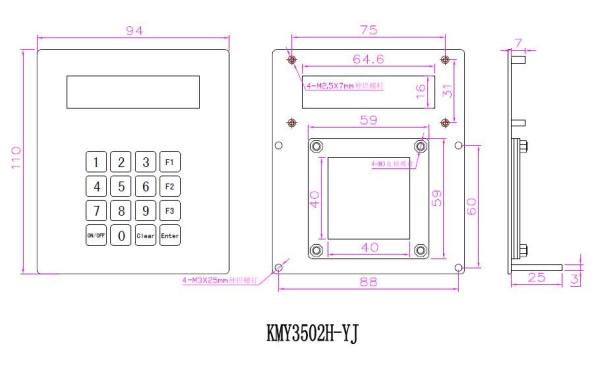

Faceplate Dimensions(W×H):94×110mm

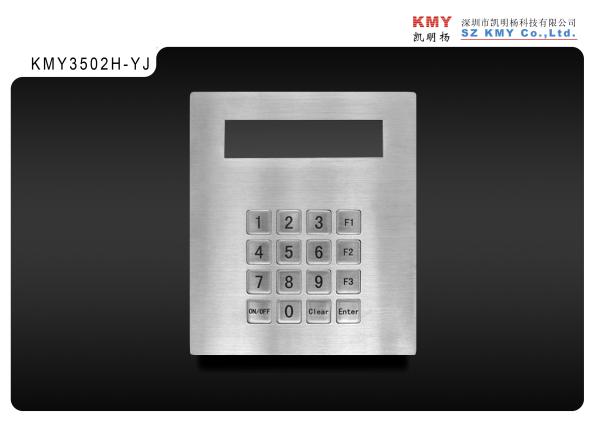

KMY3502H-YJ is a stainless steel keypad with both numeric and function keys .

The layout could be any language and function keys could be customized .

rear mounting installation .

Application

Ø Check-in Kiosk

Ø Boarding Kiosk

Ø Info-Kiosk

Ø Internet Kiosk

Ø Medical Kiosk

Ø Industrial control platform

Ø Gaming machine

Ø Access control platform

Features:

Ø Mini Keypad made of high quality stainless steel:

Ø Customizable layout, dimension and installation design

Ø 16 keys: 10 numeric keys and 6 function keys

Ø A LCD display mounting is optional

Ø Dustproof, waterproof, shake-proof, pickproof, drill-proof, bombproof

Ø Ports for optional eight external function keys, beeper and guide light

Ø IP Protection Class IEC/DIN/EN/ 60529:IP65

Ø IK Protection Class DIN EN 50102:IK07

Reliability and Performance Data

Ø Key lifetime > 2,000,000 cycles per key

Ø Force on keys: 2.5~3.5 N

Ø Key travel: >0.45mm

Ø Wide voltage input: 5V DC +/- 10%

Ø Running lifetime > 5 years; Battery lifetime > 5 years (without external power supply)

Environment Requirements

Ø Only the front panels shall be exposed to outdoor climate. The panels are dustproof, waterproof, shake-proof, pickproof, drill-proof and bombproof.

Ø Operating temperature range: 0℃‑ 60℃

Ø Storage temperature range: –25℃ - 80℃

Ø Relative humidity: 30%～90%

Ø Atmospheric pressure: 60～106 KPa
