UHT Sterilizer / Juice Sterilizer /Milk Pasteurizer Machine

YGT Different Sterilizer Type:

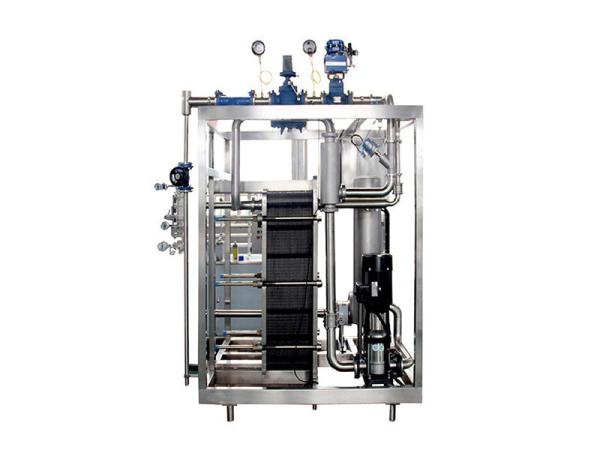

1. Pasteurizer

Technical data: 5℃→65℃(homogenization) →85~95℃(15S) →5℃

This Pasteurizer can be connect with separator, homogenizer and degasser . widely apply for dairy milk, fresh NFC juice, ice cream etc plant. This machine has features of high heat recovery, lower energy cost, compact structure for easy operation and simple maintenance.

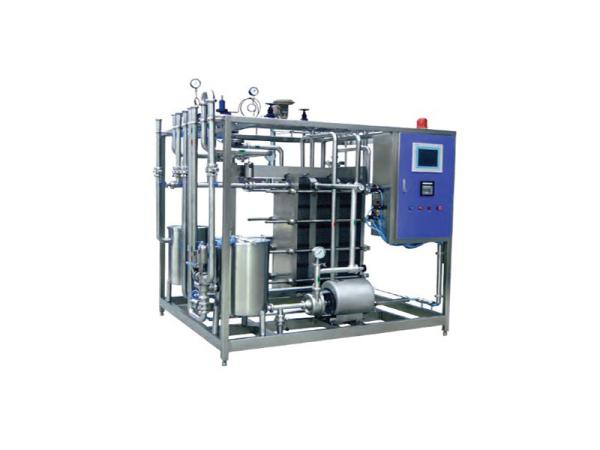

2.HTST sterilizer

HTST stands between the pasteurizer and the UHT.

Technicals35℃→65℃(homogenization)→120℃(15-20S)→85℃.

can be used for PET hot filling or gable carton box filling sterilize.

Widely apply for milk drink, beverage ,tea etc drink

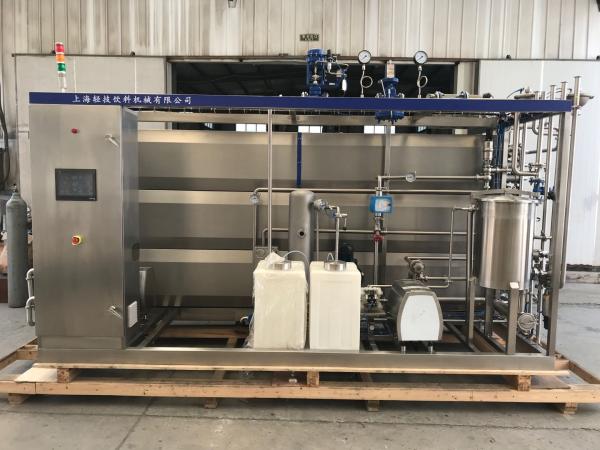

3. UHT sterilizer

Technical data: 5℃→65℃(homogenizer)→137℃(4S)→20℃-25℃ for aseptic filling；

UHT sterilizer adopts ultra high heat treatment to sterilize the ESL dairy products, tea

drink and juice beverage for the the aseptic filling production;

by this procedure to remain the nature nutrition and flavor of the milk and juice;

This machine has the features of :

high heat recovery efficiency, smooth structure appearance and accurate temperature control; could design two outlet temperature as per site request, to flexible achieve the cold aseptic filling and hot filling procedure transfer

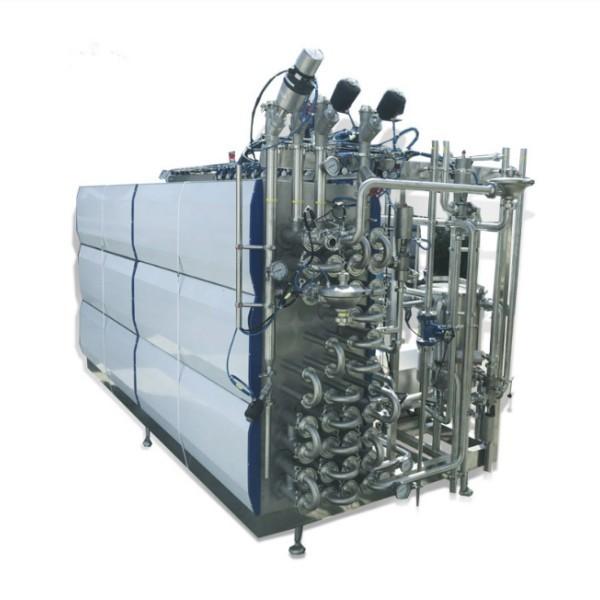

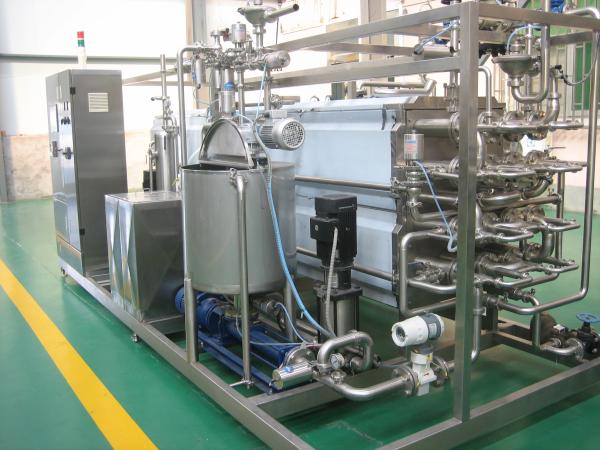

4. Tube-in-tube sterilizer

UHT Sterilizer Advantage:

Automatic control by: UK Spirax sarco steam pressure reduce valve, temperature control system, Denmark temperature sensor, Siemens temperature recorder without paper, Alfa Laval centrifugal pump; yuanan pipes and valves, Program with PLC touch screen, the precision of temperature control is ±0.5 degree. with self CIP and SIP system

Tubular/Plate sterilizer performs the processing on the foods and beverage, it has the following characteristics:

1. High heat efficiency, 90% of energy can be recycle during the product process;

2. By overheat water to heat exchange milk/juice, to guarantee the temperature steady.

3. Precise sterilizing temperature control; all the key factors such as steam pressure, flow rate are PLC controllable;

4. Full automatic, can automatically control the CIP cleaning, self sterilizing, and the whole procedures steps; all the procedures are recorded and controllable;

5. The system is strong safety, the fittings all adopts reliable materials to guarantee quality and sanitary standard.

6. High reliable system, main parts such as product pump, water pump, all valves, electrics elements are world known brands.

7. Pipe adopts advanced polish procedure, all tubes can perform fully cleaning, self sterilizing ensures the system at aseptic state;

Technology Data

YGT Pre-sale service:

1. Free of making technical consultant and technical proposal.

2. Free provide PID and layout drawings as per factory demand

3. We can do the lab equipment test and OEM machine as per different technnical .

YGT After-sale service:

1. We provide long-term spare parts

2. We provide engineer to site for equipment connection and commisionning

3. We could do project transform when future technical update

4. We are acitive to set agent channel to provide local service
