Pineapple Juice / Tea Drink UHT Sterilization Machine SUS304 / SUS316L
Pineapple Juice / Tea Drink UHT Sterilization Machine SUS304 / SUS316L
Pineapple Juice / Tea Drink UHT Sterilization Machine SUS304 / SUS316L
Pineapple Juice / Tea Drink UHT Sterilization Machine SUS304 / SUS316L
Pineapple Juice / Tea Drink UHT Sterilization Machine SUS304 / SUS316L
Pineapple Juice / Tea Drink UHT Sterilization Machine SUS304 / SUS316L
Specifications
Brand Name :
YGT
Model Number :
UHT-JUICE
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 sets
Price :
CUSTOM MADE
Payment Terms :
L/C, T/T
Supply Ability :
10 SETS PER MONTH
Delivery Time :
45 WORKING DAYS
Packaging Details :
export standard
Name :
UHT sterilizer
Application :
for pineapple juice, mango juice,tea drink etc
Material :
SUS304 /SUS316L
Capacity :
500kgs/H-20T/H
Heat Energy :
by steam
Advantage :
energy save
Description

Pineapple Juice / Tea Drink UHT Sterilization Machine SUS304 / SUS316L

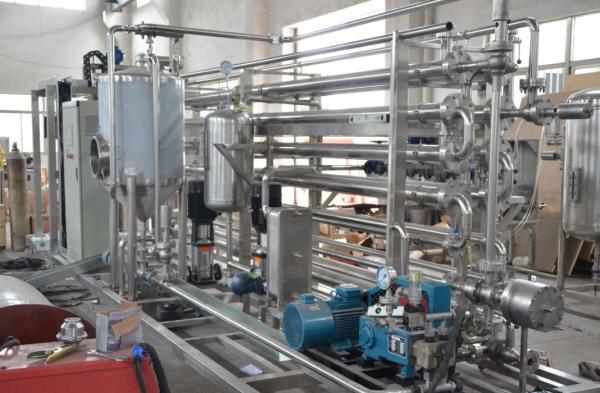

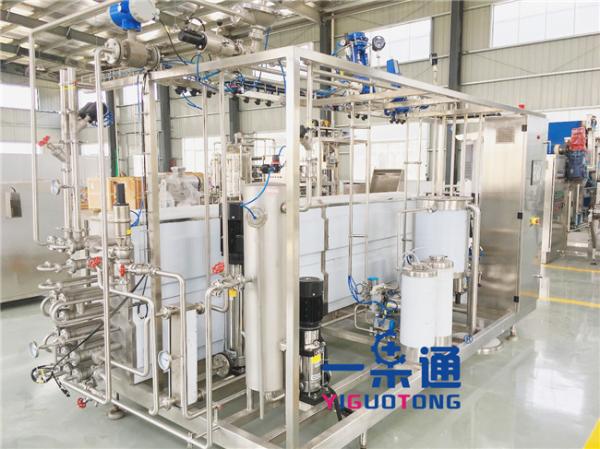

UHT Sterilizer

1. The robust and flexible UHT plant can withstand a pressure of 60 bar, and heat regeneration is about 85%.

2. YGT Milk /Juice UHT Sterilizer steriliing temperature can be reached to 115-140 degree celsius.

3. YGT Milk /Juice UHT Sterilizer has a buffer tank and hot water tank. The steam valves that we use is Spirax Sarco.

4. Some of Valves and pumps used in Milk /Juice UHT Sterilizer is imported. And this part can use based on customers' requirements.

Technology Data

Tubular sterilization machine
type and specification

capacity

(t/h)

steam

consumption

(kg/h)

steam

pressure

(kg)

power

(kw)

dimension

l*h*d

weight

(kg)

 diameter(mm)
material steam medium
YGT-UHT-CH-1MJ 1 120 6.0 2.8 3.3×1.8×2.0 1680 25 1" 25
YGT-UHT-CH-2MJ 2 240 6.0 3.0 3.5×1.8×2.0 1780 25 1" 25
YGT-UHT-CH-3MJ 3 360 6.0 3.7 3.5×1.8×2.0 1900 38 DN32 38
YGT-UHT-CH-4MJ 4 480 6.0 3.7 3.5×1.8×2.0 2060 38 DN40 38
YGT-UHT-CH-5MJ 5 600 6.0 3.7 3.5×1.8×2.0 2200 38 DN40 38
YGT-UHT-CH-6MJ 6 720 6.0 3.7 3.5×1.8×2.0 2360 51 DN50 51
YGT-UHT-CH-8MJ 8 960 6.0 4.4 3.5×2.0×2.2 2520 51 DN50 51
YGT-UHT-CH-10MJ 10 1200 6.0 7.0 3.5×2.0×2.2 2780 51 DN60 51
YGT-UHT-CH-15MJ 15 1800 6.0 8.0 3.5×2.0×2.2 3020 63 DN65 63
YGT-UHT-CH-20MJ 20 2400 6.0 11.0 3.5×2.0×2.2 3300 63 DN80 63
Process:30℃→140℃(4s)→90℃→(40℃return) (Cooling water)1:2≤30℃

Pineapple Juice / Tea Drink UHT Sterilization Machine SUS304 / SUS316L

Pineapple Juice / Tea Drink UHT Sterilization Machine SUS304 / SUS316L
