Citrus Juice Tube UHT Sterilization Machine Full Auto With Large Capacity
Citrus Juice Tube UHT Sterilization Machine Full Auto With Large Capacity
Citrus Juice Tube UHT Sterilization Machine Full Auto With Large Capacity
Citrus Juice Tube UHT Sterilization Machine Full Auto With Large Capacity
Citrus Juice Tube UHT Sterilization Machine Full Auto With Large Capacity
Citrus Juice Tube UHT Sterilization Machine Full Auto With Large Capacity
Specifications
Brand Name :
YGT
Model Number :
UHT-JUICE
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 sets
Price :
CUSTOM MADE
Payment Terms :
L/C, T/T
Supply Ability :
10 SETS PER MONTH
Delivery Time :
45 WORKING DAYS
Packaging Details :
export standard
Name :
tubular sterilizer
Application :
for orange juice, mango juice,tea drink etc
Material :
SUS316L
Capacity :
500kgs/H-20T/H
Heat Energy :
by steam
Advantage :
energy save
Structure :
tube type
Consist :
tubular heat exchange, tank, pump, PLC
Description

Citrus Juice Tube UHT Sterilization Machine Full Auto With Large Capacity

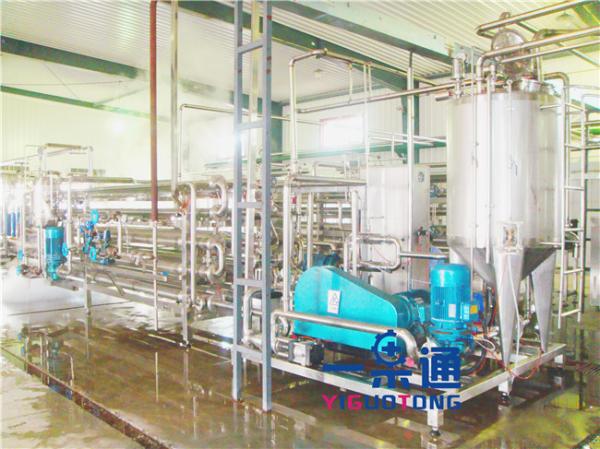

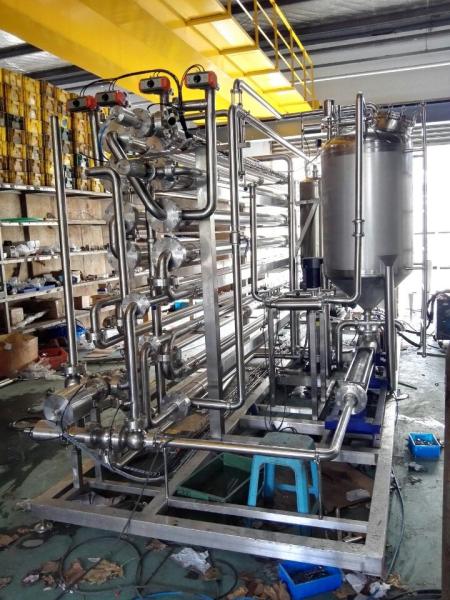

Tubular sterilizer

Product Application

designed to use sterilization and cooling method to prolong preservation period of tomato paste , juice , beverage and other liquid materials . Tubular sterilizer adopts different sterilizing method and technology to different materials which need different sterilizing temperature.

Main Feature

1) Tubular pasteurizer
2) Self-provided CIP cleaning system
3) Safety protection
4) High automation&accurate control

Technical Data:

Flow: 1-10T/h

Sterilizing Temperature: 90-125°c, as per request

Holding Time: 4/10/20s as per production request

Outlet Temperature: 30-40°c

The system consist of:

-- Stainless steel pipe(heating/cooling)

Material : SUS 304 or 316 L

Advantage:

1.High pressure resistance and corrosion resistance

2.Working in -5°C-150°C , does not precipitate harmful substances , safe non-toxic

3. Tube in tube design , improve heating area, protect liquid color and prevent burn

Screw pump

Advantage:

1.Food grade rubber stator

2.Stainless steel rotor

3.Transport high viscosity media

Custom made Flange

Material : stainless steel 304/ 316

Advantage:

1. with steam protect, guarantee aseptic state

2.Able to work under pressure
Stainless steel tank(water tank& material tank)
Material : SUS 304 or 316 L

Advantage:

1.Made by stainless steel material , high wear resistance and corrosion resistance

2.Good sealing , reduce external pollution

3.Lightweight and durable , easy cleaning

Control cabinet

Material : Stainless steel control cabinet

Advantage:

1.Electrical equipment : Schneider / Siemens

2.Frequency converter : Danfoss/ Invt

3.Pneumatic components: AirTAC

4.Temperature control instrument :PT100

Citrus Juice Tube UHT Sterilization Machine Full Auto With Large Capacity

Citrus Juice Tube UHT Sterilization Machine Full Auto With Large Capacity

Citrus Juice Tube UHT Sterilization Machine Full Auto With Large Capacity

Citrus Juice Tube UHT Sterilization Machine Full Auto With Large Capacity

Citrus Juice Tube UHT Sterilization Machine Full Auto With Large Capacity
