PLC Controlled UHT Milk Sterilizer High Effeciency Automatic
PLC Controlled UHT Milk Sterilizer High Effeciency Automatic
PLC Controlled UHT Milk Sterilizer High Effeciency Automatic
PLC Controlled UHT Milk Sterilizer High Effeciency Automatic
PLC Controlled UHT Milk Sterilizer High Effeciency Automatic
PLC Controlled UHT Milk Sterilizer High Effeciency Automatic
PLC Controlled UHT Milk Sterilizer High Effeciency Automatic
PLC Controlled UHT Milk Sterilizer High Effeciency Automatic
Specifications
Brand Name :
QJ
Place of Origin :
shanghai
MOQ :
≧1unit
Price :
FOB$30000-200000/unit
Supply Ability :
1-3units/45days
Delivery Time :
45days
Packaging Details :
standard package details according to your request
Material :
SUS304/SUS316
ussage :
Fresh milk, thick juice, ice cream, fresh milk, seasoning.
Effeciency :
high effeciency
control type :
automatic
Capacity :
1.5T/h
Sterilization Temperature :
5-140
Description

Quality Sterilizer UHT Machine For Milk

Product Overview

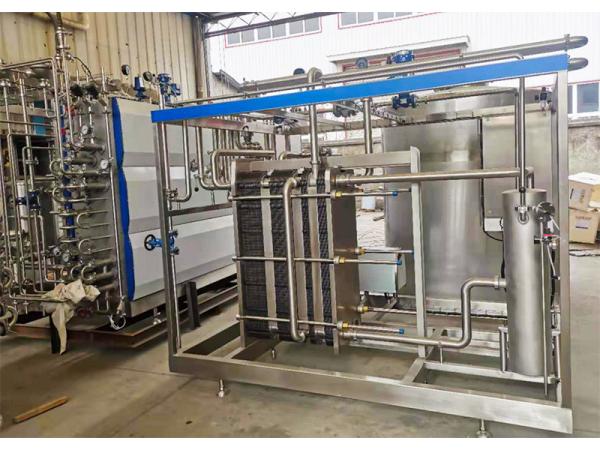

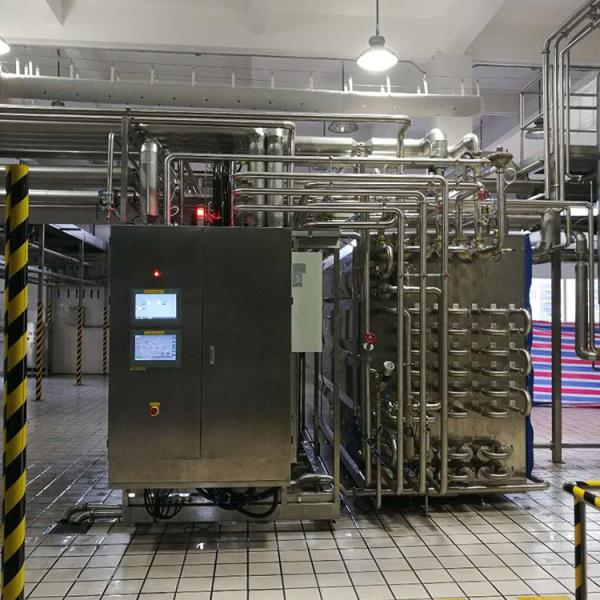

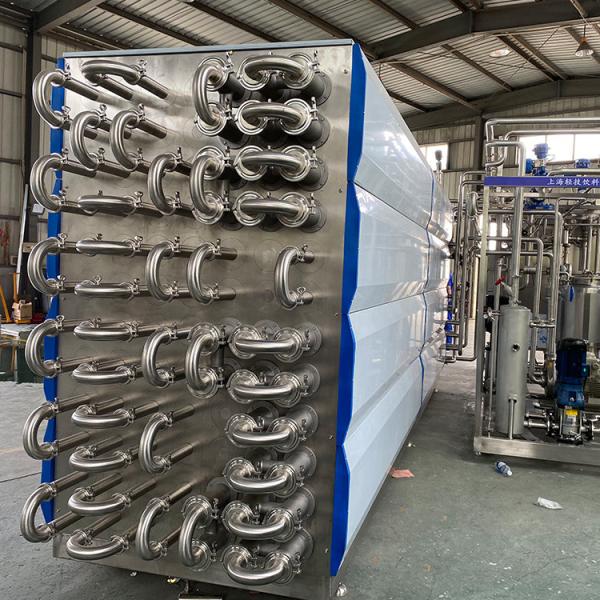

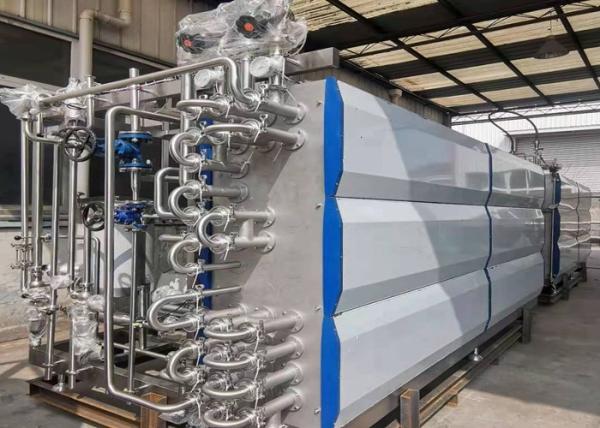

This UHT tubular sterilizer is based on tubular heat exchanger. It is suited for dairy, tea drink, fruit juice , milk , beverage
and other liquid products and can be used to mate with kinds of filing machines .

FEATURES AT A GLANCE

UHT sterilizer advantage

-provide lab sterilizer for new product test
-95% heat recovery, high energy save
-pipeline connection design convenient link
-friendly PLC program for site operation
-provide engineer for site installation and commissioning, training
-with skilled worker to guarantee equipment details(welding, polish, accuracy etc)
PLC Controlled UHT Milk Sterilizer High Effeciency Automatic
PRODUCT SPECIFICATION

No
Item
Data
Data
Data
1
Capacity
1000lph
3000lph
8000lph
2
Power
5.5kw
8.5kw
12.5kw
3
Steam consumption
80kgs/h
120kgs/h
180kgs/h
4
Cooling water consumption
3000lph
9000lph
24000lph
5
Steam pressure
0.6Mpa
0.6Mpa
0.6Mpa
6
Compressed air consumption
0.6Mpa
0.6Mpa
0.6Mpa
7
Material
SUS316L
SUS316L
SUS316L
8
Size(mm)
4500×2000×2700
4500x2200x2700
5000x2200x2700
