1T/H Fruit Juice Tube UHT Sterilizer Machine
1T/H Fruit Juice Tube UHT Sterilizer Machine
1T/H Fruit Juice Tube UHT Sterilizer Machine
1T/H Fruit Juice Tube UHT Sterilizer Machine
1T/H Fruit Juice Tube UHT Sterilizer Machine
1T/H Fruit Juice Tube UHT Sterilizer Machine
1T/H Fruit Juice Tube UHT Sterilizer Machine
1T/H Fruit Juice Tube UHT Sterilizer Machine
1T/H Fruit Juice Tube UHT Sterilizer Machine
1T/H Fruit Juice Tube UHT Sterilizer Machine
1T/H Fruit Juice Tube UHT Sterilizer Machine
1T/H Fruit Juice Tube UHT Sterilizer Machine
Specifications
Brand Name :
YGT
Model Number :
UHT-JUICE
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 sets
Price :
CUSTOM MADE
Payment Terms :
L/C, T/T
Supply Ability :
10 SETS PER MONTH
Delivery Time :
45 WORKING DAYS
Packaging Details :
export standard
Material :
Stainless Steel 304/316
Capacity :
500-20,000l/h
Voltage :
220V/380V/Customized
Power :
3000W
Warranty :
1
Control system :
Fully Automatic/Semi-automatic
Description
Detailed Product Description

UHT Sterilizer

Product Application

This UHT tubular sterilizer is based on tubular heat exchanger . It is suited for dairy, tea drink, coffee drink,fruit juice , milk, beverage and other liquid products and can be used to mate with kinds of filing machines .

UHT pasteurizer is equipment designed to use sterilization and cooling method to prolong preservation period of dairy, juice , beverage and other liquid materials .

Main Feature

1) Tubular pasteurizer
2) Self-provided CIP cleaning system
3) Safety protection
4) High automation&accurate control

Technical Data:

Flow: 1-10T/h

Material : SUS 304 or 316 L

Sterilizing Temperature: 110-140°c, as per request

Holding Time: 4/10/20/60s as per production request

Outlet Temperature: 30-40°c

UHT sterilizer system consist of:

Stainless steel pipe(heating/cooling)

Advantage:

1.High wear resistance and corrosion resistance

2.Working in -5°C-150°C , does not precipitate harmful substances , safe non-toxic

3.Compact design , save energy
Sanitary Centrifugal pump

Advantage:

1.Food grade rubber stator

2. Mechanical sealing

3.Transport good flow liquid(juice/ milk etc)
Stainless steel tank(water tank& material tank)

Advantage:

1.Made by stainless steel material , high wear resistance and corrosion resistance

2.Good sealing , reduce external pollution

3.Lightweight and durable , easy cleaning
Control cabinet

Advantage:

1.Electrical equipment : Schneider / Siemens

2.Frequency converter : Danfoss/ Invt

3.Pneumatic components: AirTAC

4.Temperature control instrument :PT100

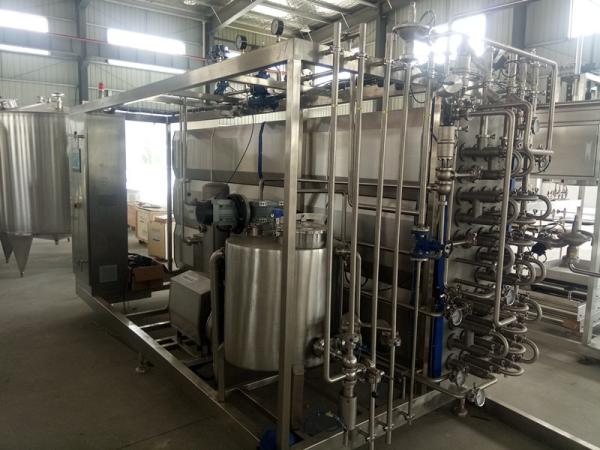

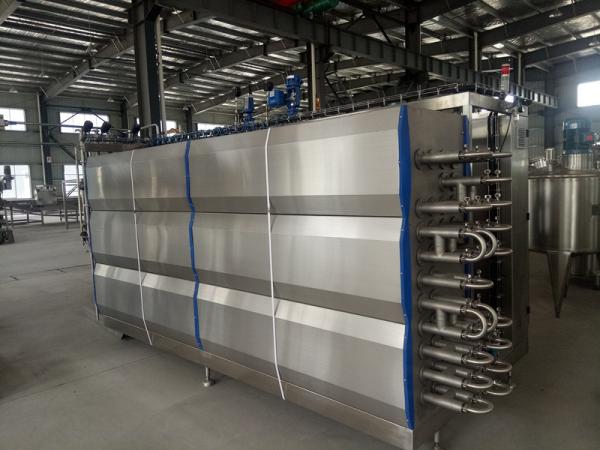

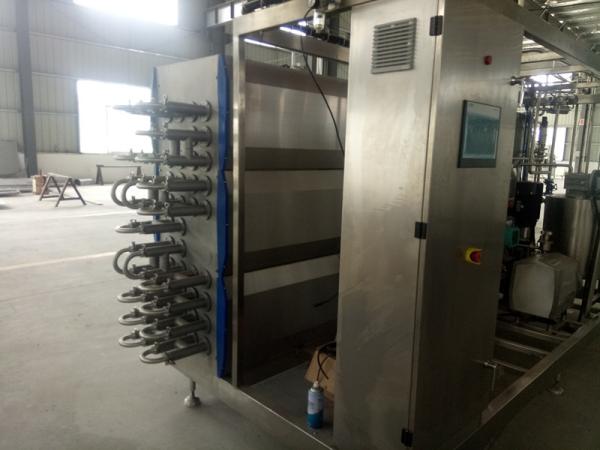

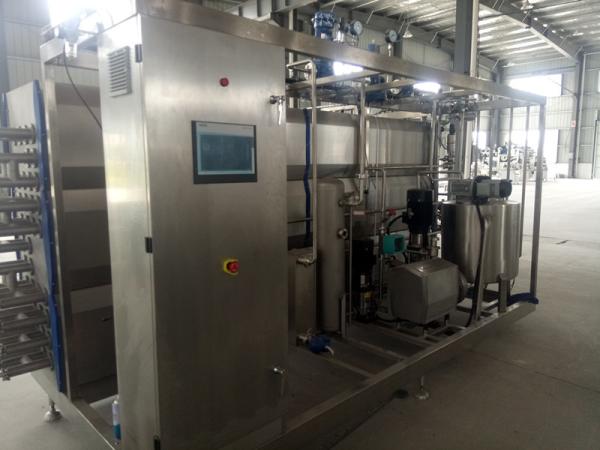

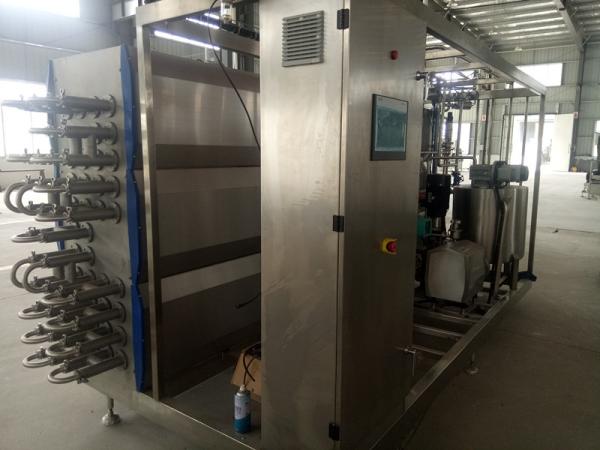

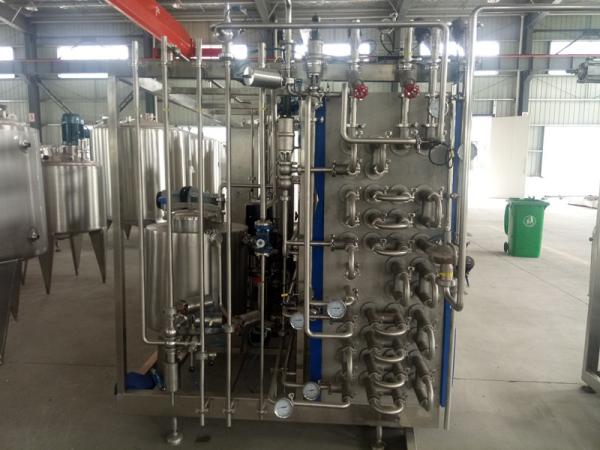

UHT sterilizer Picture:

1T/H Fruit Juice Tube UHT Sterilizer Machine

1T/H Fruit Juice Tube UHT Sterilizer Machine
