Potential Transformer
Potential Transformer
Specifications
Place of Origin :
China
MOQ :
5pcs
Payment Terms :
T/T
Delivery Time :
30days
Description

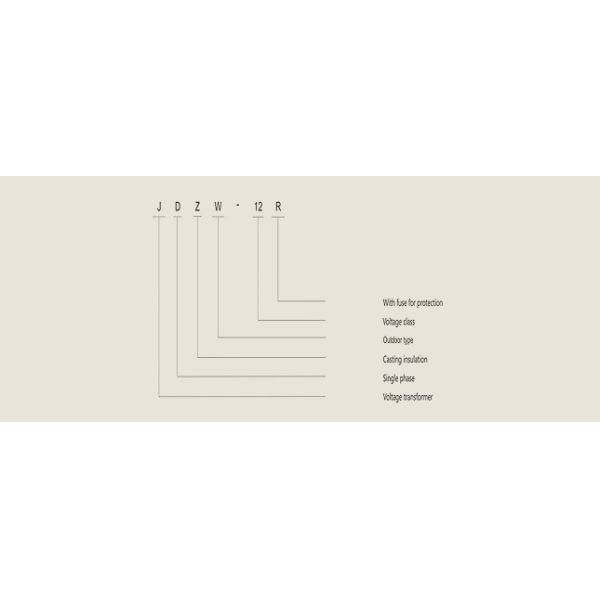

Model meaning:

Potential Transformer

Technical Specifications:

Type Rated voltage ratio(KV) Preparation level or accuracy level combination Rated output(VA) Thermal limit output(VA) Rated insulation level(KV)
JDZWR2-10 10/0.1

0.2

0.5

1

15

30

50

300

 12/42/75
10/0.1/0.1

0.2/0.2

0.2/0.5

0.5/0.5

10/10

10/15

15/15

 150 12/42/75
10/0.1/0.22

0.2

0.2

1

10

15

30

Operating power output

500

 12/42/75

Note: Our company can customize transformers with special requirements such as large capacity, high precision, and low partial discharge for customers.

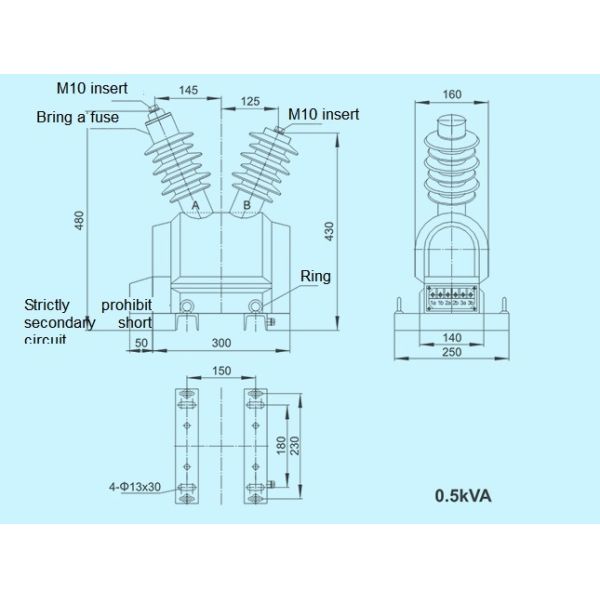

Outline drawing:

Potential Transformer

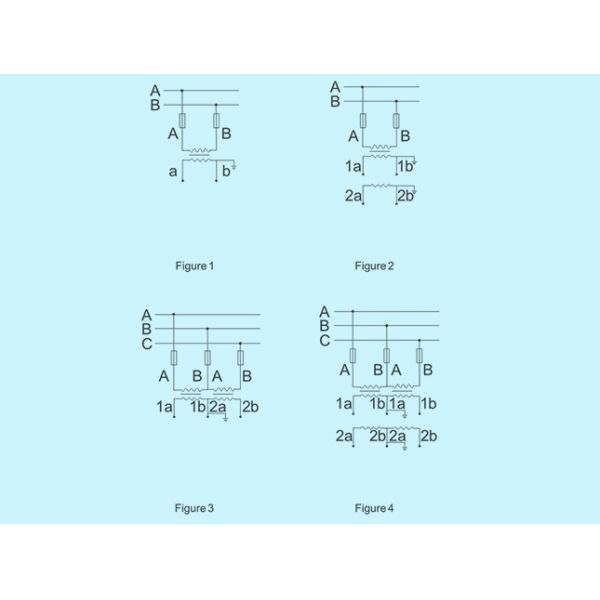

Wiring diagram:

Potential Transformer
