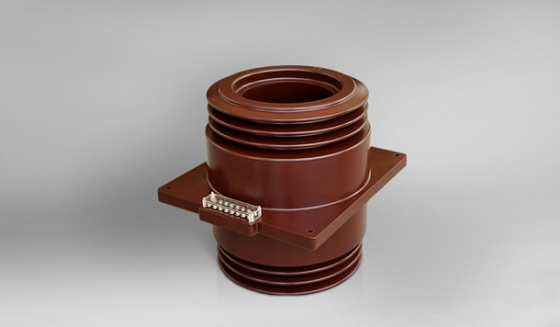

Current transformer--3.6~12KV
Current transformer--3.6~12KV
Specifications
Place of Origin :
China
MOQ :
5pcs
Payment Terms :
T/T
Delivery Time :
30days
Description

A current transformer is an instrument that converts high primary current into low secondary current based on the principle of electromagnetic induction for measurement.

A current transformer is composed of a closed iron core and winding. Its primary winding has very few turns and is connected in series in the circuit where the current needs to be measured. Therefore, it often has all the current flowing through the circuit, and the secondary winding has a relatively large number of turns. It is connected in series between the measuring instrument and the protection circuit. When the current transformer is working, its secondary circuit is always closed. Therefore, the impedance of the series coil between the measuring instrument and the protection circuit is very small, and the working state of the current transformer is close to a short circuit. A current transformer is used to measure by converting the high current on the primary side into a low current on the secondary side, and the secondary side must not be open circuited.

Technical parameters:

Type Rated Primary current(A) Rated secondary output(VA) Accuracy classes combination Rated output(VA)
LMZB0-10Q

1000

1200

1500

1600

5,1

0.2/0.2

0.2/0.5

0.5/0.5

0.2/10P15

0.5/10P15

10P15/10P15

10/10

10/20

20/20

10/15

20/15

15/15

2000

3000

4000

5000

6000

0.2/0.2

0.2/0.5

0.5/0.5

0.2/10P15

0.5/10P15

10P15/10P15

20/20

20/30

30/30

20/20

30/20

20/20
Remarks:We can make the products of special request for user.

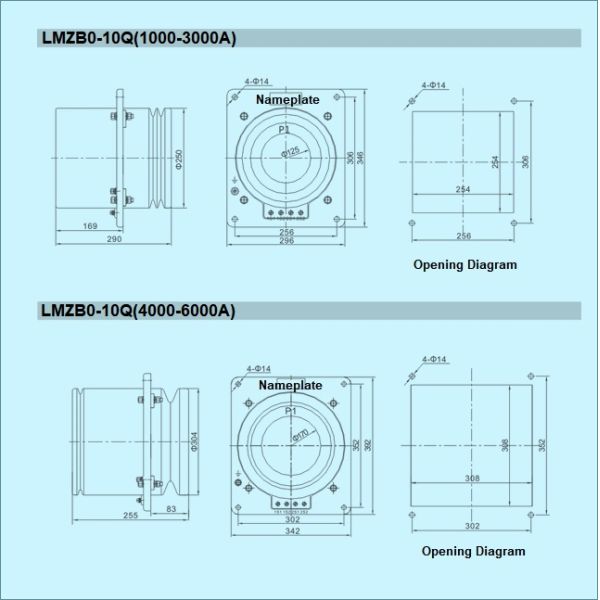

Outline drawing:

Current transformer--3.6~12KV
