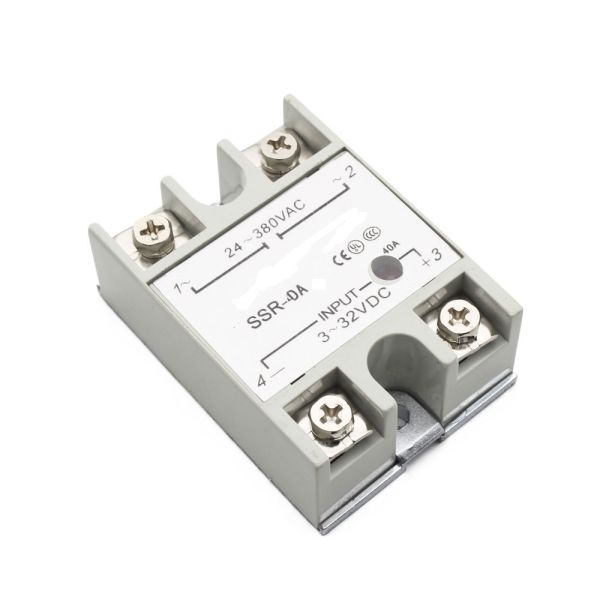

Relay--Solid State Relay
Relay--Solid State Relay
Specifications
Model Number :
AZ01
Certification :
CE
Place of Origin :
China
MOQ :
50
Delivery Time :
30days
Description

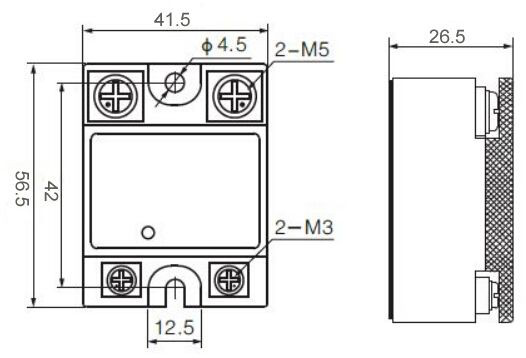

Appearance and opening size:

Relay--Solid State Relay

Model

AZ01(SSR-D/A) 10-80A

Input voltage

3-32VDC

Input current

6-35MA

Pick-up voltage

3VDC

Release voltage

1VDC

Reverse voltage

32VDC

Output voltage

22:24-240VAC, 38:40-440VAC

Output current

10A,15A,20A,25A,30A,40A, 60A, 80A

Instantaneous voltage

22: 600VAC, 38:900VAC

Generalized hypotension

1.6VDC

Switching time

10MS

leakage current

10MA

Insulation strength

2500VAC

Insulation resistance

500MΩ,500VDC

Ambient temperature

-30℃ to 80℃

Display

LED

Attention

When the output current is greater than 10A, a radiator is required, and when the output current is greater than 80A, a fan is required.
