Specifications
Brand Name :
ABB
Model Number :
GoFa™ CRB 15000
Certification :
CE
Place of Origin :
CHINA
MOQ :
2
Price :
800
Payment Terms :
L/C, T/T
Supply Ability :
100sets/month
Delivery Time :
6-8 WEEKS
Packaging Details :
Foam fixation+bubble film protection+wooden box
Warranty :
1 Year
Screw Type :
Flat-end/Sunk screw
Storage :
200-3000pcs
Accuracy :
±0.02mm
Screw range :
M1-M4
Screwing Efficiency :
1-2s/piece
Extend :
MES
Z Axis Travel :
100mm
Description

Universal Automatic Screwdrivers For Auto Parts Assembly With Robot.Screw range:M1-M4

Products Description
Developed our Intelligent Screwing Work Station based on our self-developed integrated control system. The appearance is generous and simple, with high integration, high precision, high flexibility, and other characteristics, to meet the automation application needs of industry customers. It is flexible, modular design with strong versatility, high efficiency, low defect rate, simple operation, greatly reduce hardware and software cost for screwing machine.

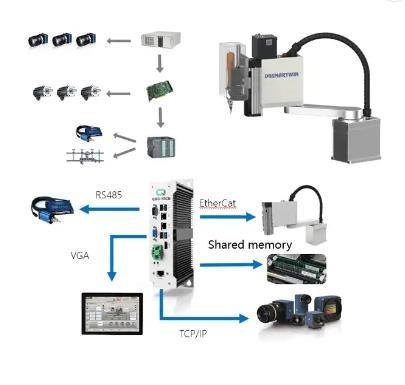

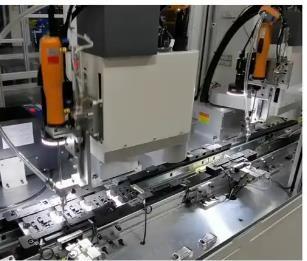

This intelligent screwing work station consists of SCARA mechanical arm, CCD vision system, and intelligent control system, conveyor system, etc. There are three types of the screwing work station: embedded type, desktop type( semi-automatic), real-time type(fully automatic).

Universal Robot Screwdriver Automatic Auto Parts Nut Bolt Assembly Machine M1-M4

About the company

Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.


Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!


Company Product Supply
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China


Product specifications

Machine Parameter
Type
real-time type
desktop type
embedded type
SCARA Arm Length
600mm
600mm
800mm
Number of Screwing Stations
2
1
1
Accuracy
±0.02mm
±0.02mm
±0.02mm
Z Axis Travel
100mm
100mm
100mm
Screwing Efficiency
1-2s/piece
Feeding Methods
waftage
suck
waftage
Control System
IVC-K series
Fault Detection
floating lock, sliding teeth, leaking lock, etc.
Extend
MES system
Feeding System
Storge
200-3000pcs
Screw Range
M1-M4
Screw Type
flat-end/sunk screw
Vision System
Supported Camera Numbers
4
Camera Pixel
130W/500W/1000W
Camera Accuracy
±0.01mm
Positioning Function
mark point/CAD import/teach
Screwing System
Screwdriver Type
intelligent screwdriver
servo screwdriver
servo screwdriver
Screwdriver Number
1
1
2

Machine Specification
Size
customized
Power
1kw
1kw
1kw
Power Source
AC 220V ,50/60 Hz
Environment
Temperature
5~40℃
Humidity
10~80%(no condensation)
Air Pressure
0.4~0.7Mpa

Product parameters table

The real-time type screwing machine requires no fixture for positioning, it can compatible with multiple
products, and can adopt to the existing line easily.
The desktop type screwing machine can realize human-machine cooperation, it is with dual vision
positioning, no manual teaching needed, it is with high efficiency, strong versatility.
The embedded type screwing machine is with visual positioning of incoming materials, plug and play
function, modular configuration, can be connected with any production line.
