EIMD-10SP Dedicated Electrodeionization Module Resilient to Water Quality Fluctuations
EIMD-10SP Dedicated Electrodeionization Module Resilient to Water Quality Fluctuations
Specifications
Compliance :
Meets industry EDI compliance standards
User interface :
Web-based dashboard for monitoring and management
Error handling :
Real-time alerts and error correction tools
Product name :
Dedicated EDI Module
Scalability :
Supports small to enterprise-level transaction volumes
Model Number :
EIMD-10SP
Type :
Software Module
Function :
Electronic Data Interchange (EDI) processing
Security :
Data encryption and secure transmission
Brand Name :
Aquacells
Support :
24/7 technical support and regular updates
Customization :
Configurable mapping and workflows
Automation features :
Automated document translation and routing
Certification :
FDA，EU，CE，RoHS，REACH
Place of Origin :
China
Integration :
Seamless integration with existing ERP systems
Description

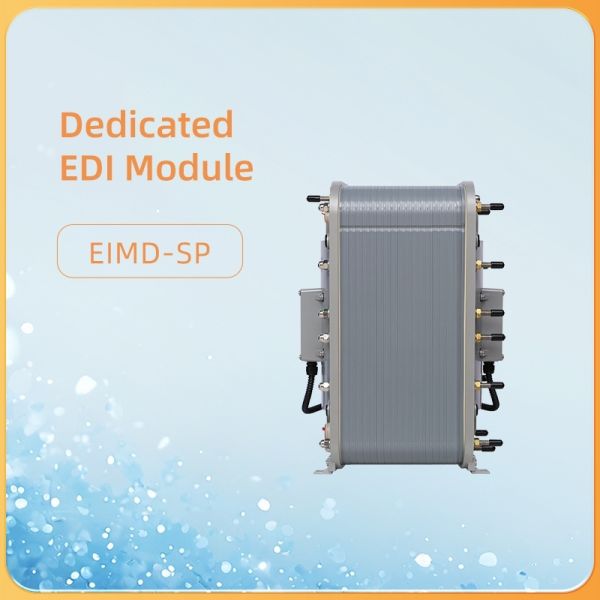

EIMD-10SP Electrodeionization Module with High Recovery Rate Resilient to Water Quality Fluctuations and Low Operating Costs

The Aquacells EIMD-SP module is specifically designed for effluent from single-stage reverse osmosis (RO) systems. This module demonstrates exceptional resilience to water quality fluctuations while significantly reducing both investment and operating costs.

Feed Water Specifications
Parameter Specification
FCE (including CO2 and Silica) < 80 µS/cm
Feed Water Source Condensate water
Temperature 5-45 ℃ (40-113 ℉)
Feed pressure 1.4-7 bar (20-100 psi)
Total Chlorine (as CI2) <0.05 ppm
Fe <0.01 ppm
Mn <0.01 ppm
S2- <0.01 ppm
pH 4-11
Total Hardness (as CaCO3) <1.0 ppm
Dissolved Organics (TOC as C) <0.5 ppm
Silica (SiO2) <1.0 ppm
Typical Module Performance
Parameter Specification
Typical Recovery >85%
Maximum Feed Pressure 7 bar (100 psi)
Maximum Feed Temperature 45 ℃ (113 ℉)
Minimum Discharge pressure > 1 bar
DC Voltage* 0-300 V
DC Amperage 0-6 A
Product Resistivity >10 MΩ·cm
Silica (SiO2) Removal 90-99% depending on feed water
*Voltage required depends on module size
The information provided in this brochure contains general descriptions or performance characteristics that may not always apply as described in actual use cases or may change due to further product development. An obligation to provide the respective characteristics shall only exist if expressly agreed upon in the terms of the contract.
