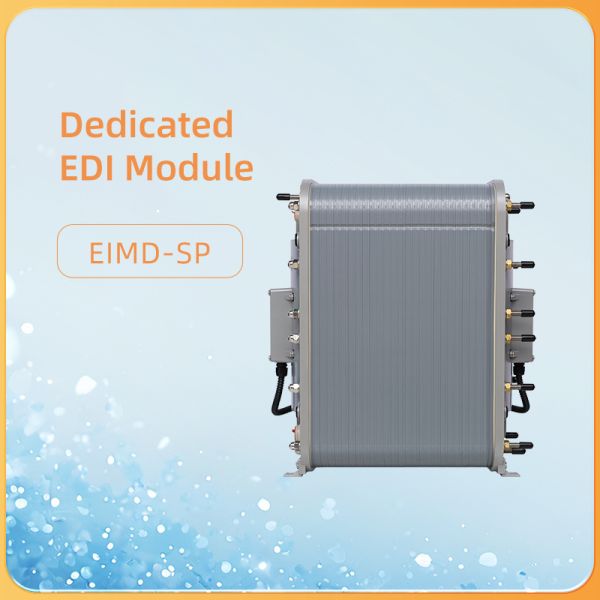

EIMD-20SP Electrodeionization Module High Recovery Rate RO EDI Water Treatment
EIMD-20SP Electrodeionization Module High Recovery Rate RO EDI Water Treatment
Specifications
Compatibility :
Integrates with existing ERP and business systems
User interface :
Web-based dashboard with real-time monitoring
Scalability :
Supports small to large enterprise volumes
Automation level :
High - supports automated document exchange
Brand Name :
Aquacells
Certification :
FDA，EU，CE，RoHS，REACH
Place of Origin :
China
Product name :
Dedicated EDI Module
Reporting features :
Comprehensive reporting and analytics
Function :
Electronic Data Interchange (EDI) processing and management
Model Number :
EIMD-20SP
Error handling :
Automatic error detection and notification
Support and maintenance :
24/7 technical support and regular updates
Integration capabilities :
API support for custom integrations
Description

EIMD-20SP Electrodeionization Module With High Recovery Rate Resilient To Water Quality Fluctuations And Low Operating Costs

The Aquacells EIMD-SP module is tailor-made for the effluent from a single-stage reverse osmosis (RO) system. It demonstrates resilience to fluctuations in water quality and significantly reduces both investment and operating costs.

Feed Water Specifications

Parameter Specification
FCE (including CO2 and Silica) < 80 µS/cm
Feed Water Source Condensate water
Temperature 5-45 ℃ (40-113 ℉)
Feed pressure 1.4-7 bar (20-100 psi)
Total Chlorine (as CI2) <0.05 ppm
Fe <0.01 ppm
Mn <0.01 ppm
S2- <0.01 ppm
pH 4-11
Total Hardness (as CaCO3) <1.0 ppm
Dissolved Organics (TOC as C) <0.5 ppm
Silica (SiO2) <1.0 ppm

Typical Module Performance

Parameter Specification
Typical Recovery >85%
Maximum Feed Pressure 7 bar (100 psi)
Maximum Feed Temperature 45 ℃ (113 ℉)
Minimum Discharge pressure > 1 bar
DC Voltage* 0-300 V
DC Amperage 0-6 A
Product Resistivity >10 MΩ·cm
Silica (SiO2) Removal 90-99% depending on feed water

*Voltage required depends on module size

The information provided in this brochure contains general descriptions or performance characteristics that may not always apply as described in actual use cases or may change due to further product development. An obligation to provide the respective characteristics shall only exist if expressly agreed upon in the terms of the contract.
