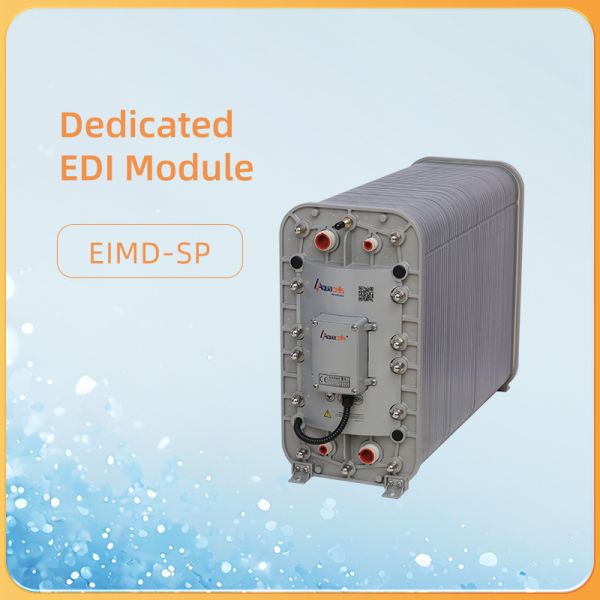

EIMD-05SP Dedicated EDI Module Water Treatment Electrodeionization Module
EIMD-05SP Dedicated EDI Module Water Treatment Electrodeionization Module
Specifications
Product name :
Dedicated EDI Module
Integration :
Seamless integration with existing ERP and business systems
Certification :
FDA，EU，CE，RoHS，REACH
Error handling :
Automated error detection and notification
Brand Name :
Aquacells
Scalability :
Supports small to enterprise-level transaction volumes
User interface :
Web-based dashboard for monitoring and management
Compliance :
Meets industry EDI compliance standards
Customization :
Configurable mapping and translation rules
Automation level :
High – supports automated document exchange
Support :
24/7 technical support and regular updates
Place of Origin :
China
Type :
Software Module
Model Number :
EIMD-05SP
Description
EIMD-05SP Electrodeionization Module with High Recovery Rate Resilient to Water Quality Fluctuations and Low Operating Costs
EIMD-SP Modules Overview

The Aquacells EIMD-SP module is tailor-made for the effluent from a single-stage reverse osmosis (RO) system. It demonstrates resilience to fluctuations in water quality and significantly reduces both investment and operating costs.

Feed Water Specifications
Parameter Specification
FCE (including CO2 and Silica) < 80 µS/cm
Feed Water Source Condensate water
Temperature 5-45 ℃ (40-113 ℉)
Feed pressure 1.4-7 bar (20-100 psi)
Total Chlorine (as CI2) <0.05 ppm
Fe <0.01 ppm
Mn <0.01 ppm
S2- <0.01 ppm
pH 4-11
Total Hardness (as CaCO3) <1.0 ppm
Dissolved Organics (TOC as C) <0.5 ppm
Silica (SiO2) <1.0 ppm
Typical Module Performance
Parameter Specification
Typical Recovery >85%
Maximum Feed Pressure 7 bar (100 psi)
Maximum Feed Temperature 45 ℃ (113 ℉)
Minimum Discharge pressure > 1 bar
DC Voltage* 0-300 V
DC Amperage 0-6 A
Product Resistivity >10 MΩ·cm
Silica (SiO2) Removal 90-99% depending on feed water

*Voltage required depends on module size

The information provided in this brochure contains general descriptions or performance characteristics that may not always apply as described in actual use cases or may change due to further product development. An obligation to provide the respective characteristics shall only exist if expressly agreed upon in the terms of the contract.
