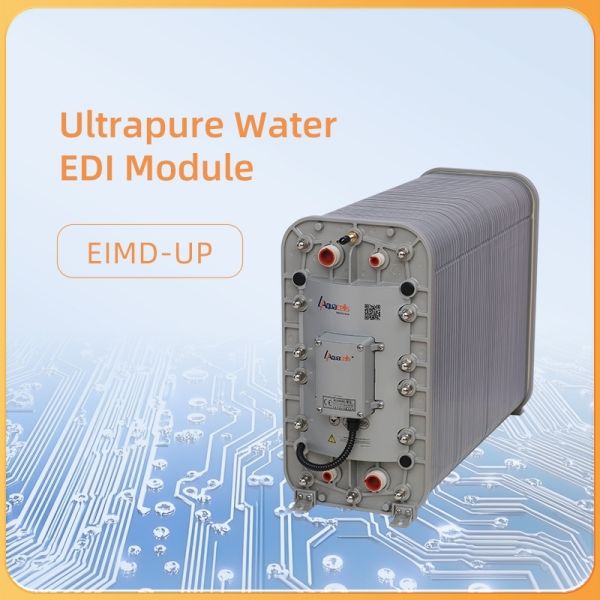

EIMD-50UP Ultrapure Water EDI Module For Semiconductor Chemical Power Industries
EIMD-50UP Ultrapure Water EDI Module For Semiconductor Chemical Power Industries
Specifications
Model Number :
EIMD-50UP
Installation type :
Inline or skid-mounted
Recovery rate :
95% or higher
Flow rate :
0.5 - 10 m³/h
Weight :
Approximately 50 - 100 kg
Material :
High-grade polymer and ion-exchange membranes
Electrical consumption :
Low power consumption, typically 0.5 - 2 kWh/m³
Maintenance :
Minimal, periodic cleaning recommended
Dimensions :
Varies by model, typically 1000 x 500 x 300 mm
Purity level :
18.2 MΩ·cm resistivity
Module lifespan :
3 - 5 years
Technology :
Electrodeionization (EDI)
Operating temperature :
5 - 45 °C
Brand Name :
Aquacells
Product name :
Ultrapure Water EDI Module
Certification :
FDA，EU，CE，RoHS，REACH
Place of Origin :
China
Input water quality :
RO water or DI water
Operating pressure :
0.1 - 0.6 MPa
Description
EIMD-50UP Ultrapure Water Module with 90-95% Recovery, >16MΩ*cm Resistivity, and 90-99% Silica Removal for Semiconductor and Power Industries
Product Overview

Aquacells EIMD-UP module are designed for ultrapure water applications,with a primary focus on meeting the high-standard water quality requirements of the semiconductor and pharmaceutical industries.

Feed Water Specifications
Parameter Specification
FCE (including CO2 and Silica) < 45 µS/cm
Temperature 5-45 ℃ (40-113 ℉)
Feed pressure 1.4-7 bar (20-100 psi)
Total Chlorine (as CI2) <0.05 ppm
Fe <0.01 ppm
Mn <0.01 ppm
S2- <0.01 ppm
pH 4-11
Total Hardness (as CaCO3) <1.0 ppm
Dissolved Organics (TOC as C) <0.5 ppm
Silica (SiO2) <1.0 ppm
Typical Module Performance
Parameter Specification
Typical Recovery 90-95%
Maximum Feed Pressure 7 bar (100 psi)
Maximum Feed Temperature 113 ℉ (45 ℃)
DC Voltage* 0-300 V
DC Amperage 0-6 A
Product Resistivity >16 MΩ·cm
Silica (SiO2) Removal 90-99% depending on feed water

*Voltage required depends on module size

The information provided contains general descriptions or performance characteristics that may not always apply as described in actual use cases or may change due to further product development. An obligation to provide the respective characteristics shall only exist if expressly agreed upon in the terms of the contract.
