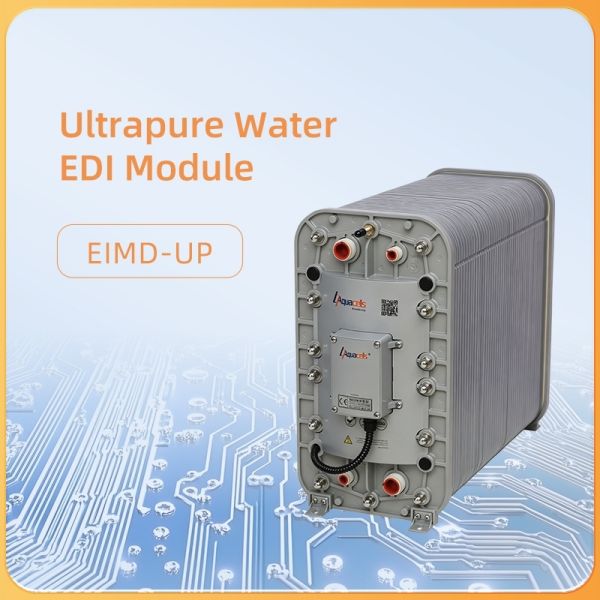

Ultrapure Water Treatment Electrodeionization Module For Semiconductor Power Industries
Ultrapure Water Treatment Electrodeionization Module For Semiconductor Power Industries
Specifications
Certification :
FDA，EU，CE，RoHS，REACH
Regeneration chemical :
None (chemical-free process)
Recovery rate :
Typically ≥90%
Installation type :
Inline or skid-mounted
Flow rate :
Variable (e.g., 1-10 m³/h)
Application :
Pharmaceutical, semiconductor, power plants, laboratories
Operating pressure :
0.1-0.6 MPa
Product name :
Ultrapure Water EDI Module
Water purity level :
Ultrapure
Place of Origin :
China
Module dimensions :
Customizable based on model
Maintenance interval :
Typically 1-2 years
Technology :
Electrodeionization (EDI)
Material :
High-grade ion exchange membranes and resins
Brand Name :
Aquacells
Resistivity :
≥18 MΩ·cm
Operating temperature :
5-45 °C
Model Number :
EIMD-30UP
Power supply :
AC 220 V/50 Hz or customized
Description
EIMD-30UP Ultrapure Water Module with 90-95% Recovery, >16MΩ*cm Resistivity, and 90-99% Silica Removal for Semiconductor and Power Industries

Aquacells EIMD-UP module are designed for ultrapure water applications,with a primary focus on meeting the high-standard water quality requirements of the semiconductor and pharmaceutical industries.

Feed Water Specifications
Parameter Specification
FCE (including CO2 and Silica) < 45 µS/cm
Temperature 5-45 ℃ (40-113 ℉)
Feed pressure 1.4-7 bar (20-100 psi)
Total Chlorine (as CI2) <0.05 ppm
Fe <0.01 ppm
Mn <0.01 ppm
S2- <0.01 ppm
pH 4-11
Total Hardness (as CaCO3) <1.0 ppm
Dissolved Organics (TOC as C) <0.5 ppm
Silica (SiO2) <1.0 ppm
Typical Module Performance
Parameter Specification
Typical Recovery 90-95%
Maximum Feed Pressure 7 bar (100 psi)
Maximum Feed Temperature 45 ℃ (113 ℉)
DC Voltage* 0-300 V
DC Amperage 0-6 A
Product Resistivity >16 MΩ·cm
Silica (SiO2) Removal 90-99% depending on feed water
*Voltage required depends on module size

The information provided in this brochure contains general descriptions or performance characteristics that may not always apply as described in actual use cases or may change due to further product development. An obligation to provide the respective characteristics shall only exist if expressly agreed upon in the terms of the contract.
