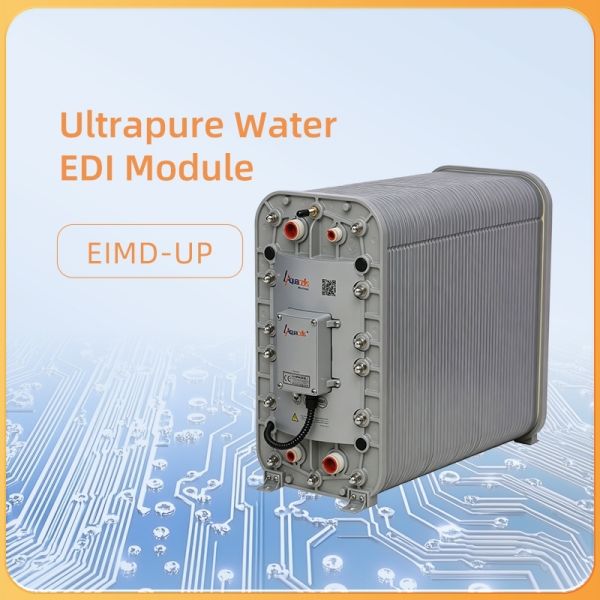

EIMD-70UP Ultrapure Water EDI Electrodeionization Module >16MΩ*cm Resistivity
EIMD-70UP Ultrapure Water EDI Electrodeionization Module >16MΩ*cm Resistivity
Specifications
Certification :
FDA，EU，CE，RoHS，REACH
Weight :
15 kg
Power supply :
220 V/50 Hz or 110 V/60 Hz
Product name :
Ultrapure Water EDI Module
Purity level :
18.2 MΩ·cm resistivity
Material :
High-grade ion exchange membranes and resins
Technology :
Electrodeionization (EDI)
Operating pressure :
0.1-0.4 MPa
Flow rate :
1-10 liters per minute
Application :
Pharmaceutical, electronics, laboratory, and power plants
Model Number :
EIMD-70UP
Dimensions :
500mm x 300mm x 200mm
Removal rate :
99.99% ionic contaminants
Operating temperature :
5-45 °C
Water source :
RO permeate or deionized water
Brand Name :
Aquacells
Place of Origin :
China
Maintenance interval :
6-12 months
Recovery rate :
90-95%
Description
EIMD-70UP Ultrapure Water Module with 90-95% Recovery >16MΩ*cm Resistivity and 90-99% Silica Removal for Semiconductor and Power Industries
Aquacells EIMD-UP module are designed for ultrapure water applications,with a primary focus on meeting the high-standard water quality requirements of the semiconductor and pharmaceutical industries.
Feed Water Specifications
Parameter Specification
FCE (including CO2 and Silica) < 45 µS/cm
Temperature 5-45 ℃ (40-113 ℉)
Feed pressure 1.4-7 bar (20-100 psi)
Total Chlorine (as CI2) <0.05 ppm
Fe <0.01 ppm
Mn <0.01 ppm
S2- <0.01 ppm
pH 4-11
Total Hardness (as CaCO3) <1.0 ppm
Dissolved Organics (TOC as C) <0.5 ppm
Silica (SiO2) <1.0 ppm
Typical Module Performance
Parameter Specification
Typical Recovery 90-95%
Maximum Feed Pressure 7 bar (100 psi)
Maximum Feed Temperature 45 ℃ (113 ℉)
DC Voltage* 0-300 V
DC Amperage 0-6 A
Product Resistivity >16 MΩ·cm
Silica (SiO2) Removal 90-99% depending on feed water
*Voltage required depends on module size
The information provided in this brochure contains general descriptions or performance characteristics that may not always apply as described in actual use cases or may change due to further product development. An obligation to provide the respective characteristics shall only exist if expressly agreed upon in the terms of the contract.
