High Temperature Resistant EDI Module Chemical Free Regeneration With 90-95% Recovery
High Temperature Resistant EDI Module Chemical Free Regeneration With 90-95% Recovery
Specifications
Water quality output :
Type II or Type I ultrapure water
Product name :
Hot Water Sanitizable EDI Module
Operating temperature :
Up to 85 °C
Connection type :
Standard sanitary fittings
Membrane material :
High-grade ion exchange membranes
Compliance standards :
FDA, USP, ISO 9001
Sanitization method :
Hot Water
Sanitization frequency :
Daily or as required
Brand Name :
Aquacells
Module dimensions :
Varies by model, typically compact size
Application :
Pharmaceutical, laboratory, and semiconductor industries
Module type :
EDI (Electrodeionization)
Flow rate :
Varies by model, typically 1-10 GPM
Warranty period :
1 year standard
Place of Origin :
China
Model Number :
EIMD-50HP
Electrical consumption :
Low, depends on model
Certification :
FDA，EU，CE，RoHS ，REACH
Maximum pressure :
100 psi
Description

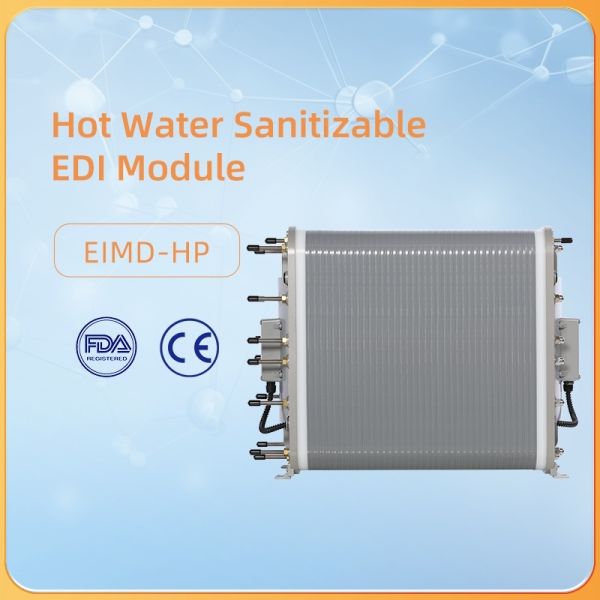

Aquacells EIMD-50HP High-Temperature Resistant Chemical-Free Regeneration EDI Module with 90-95% Recovery
EIMD-HP Modules

The Aquacells EIMD-HP module is specifically engineered for hot water sanitization applications and is widely utilized in Pharmaceutical, biotechnology, and cosmetics industries. Constructed from high-temperature resistant materials to accommodate instantaneous heating and cooling requirements, this module delivers a constant flowrate of high-purity water without the need for chemical regeneration.

Feed Water Specifications
Parameter Specification
FCE (including CO2 and Silica) < 45 µS/cm
Temperature 5-45 ℃ (40-113 ℉)
Feed pressure 1.4-7 bar (20-100 psi)
Total Chlorine (as CI2) <0.05 ppm
Fe <0.01 ppm
Mn <0.01 ppm
S2- <0.01 ppm
pH 4-11
Total Hardness (as CaCO3) <1.0 ppm
Dissolved Organics (TOC as C) <0.5 ppm
Silica (SiO2) <1.0 ppm
Typical Module Performance
Parameter Performance
Typical Recovery 90-95%
Maximum Feed Pressure 7 bar (100 psi)
Maximum Feed Temperature 45 ℃ (113 ℉)
Sanitization Temperature at 30 psi (2.0 bar) 85 ℃ (185 ℉)
DC Voltage* 0-600 V
DC Amperage 0-10 A
Product Conductivity <0.1 µS/cm
Silica (SiO2) Removal 90-99% depending on feed water
*Voltage required depends on module size

The information provided in this brochure contains general descriptions or performance characteristics that may not always apply as described in actual use cases or may change due to further product development. An obligation to provide the respective characteristics shall only exist if expressly agreed upon in the terms of the contract.
