High Temp Resistant EDI Module With Chemical Free Regeneration 90-95% Recovery
High Temp Resistant EDI Module With Chemical Free Regeneration 90-95% Recovery
Specifications
Maximum Pressure :
150 psi
Connection type :
Sanitary tri-clamp or threaded connections
Module type :
EDI (Electrodeionization)
Place of Origin :
China
Sanitizationcycleduration :
Typically 30-60 minutes
PH Range :
2-11
Maintenance interval :
Extended due to hot water sanitization capability
Certification :
FDA，EU，CE，RoHS ，REACH
Product name :
Hot Water Sanitizable EDI Module
Electrical consumption :
Low power consumption
Flow rate :
Varies by model, typically 1-10 GPM
Installation orientation :
Horizontal or vertical
Operatingtemperature :
Up to 85 °C
Model Number :
EIMD-30HP
Application :
Pharmaceutical, biotech, and food & beverage industries
Water quality output :
High purity water, resistivity > 15 MΩ·cm
Brand Name :
Aquacells
Material construction :
Sanitary-grade materials compatible with hot water
Sanitizationmethod :
Hot Water
Description

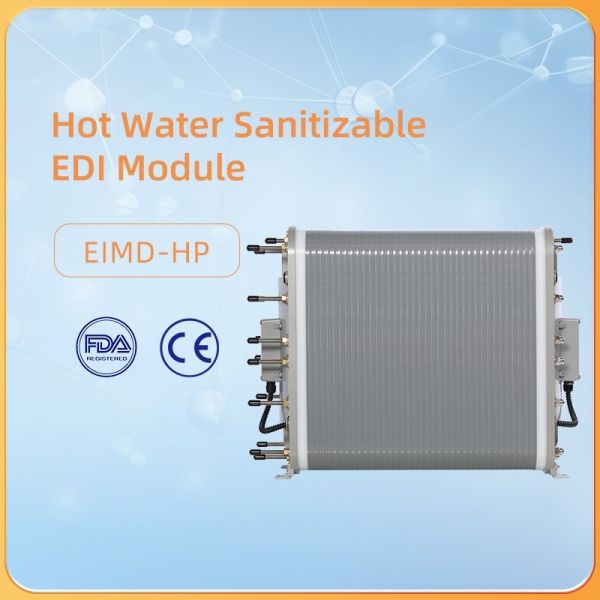

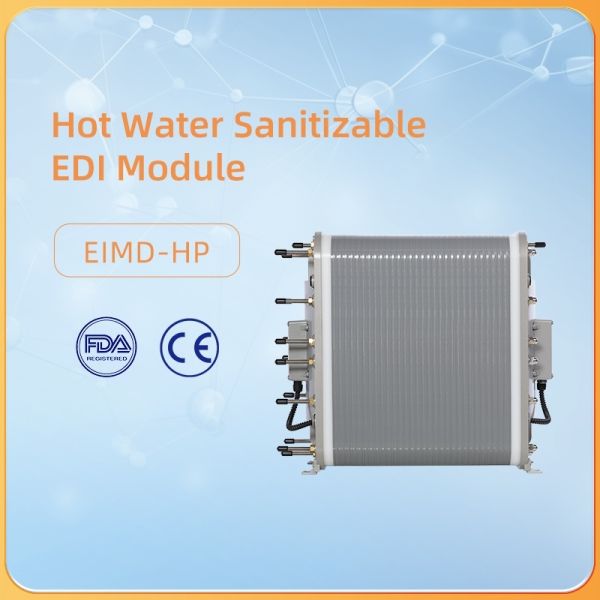

Aquacells EIMD-30HP Module for High-Temperature Resistant Chemical-Free Regeneration with 90-95% Recovery
EIMD-HP Modules

The Aquacells EIMD-HP module is specifically engineered for hot water sanitization applications and is widely utilized in Pharmaceutical, biotechnology, and cosmetics industries. Constructed from high-temperature resistant materials to accommodate instantaneous heating and cooling requirements, this module delivers a constant flowrate of high-purity water without the need for chemical regeneration.

Feed Water Specifications
Parameter Specification
FCE (including CO2 and Silica) < 45 µS/cm
Temperature 5-45 ℃ (40-113 ℉)
Feed pressure 1.4-7 bar (20-100 psi)
Total Chlorine (as CI2) <0.05 ppm
Fe <0.01 ppm
Mn <0.01 ppm
S2- <0.01 ppm
pH 4-11
Total Hardness (as CaCO3) <1.0 ppm
Dissolved Organics (TOC as C) <0.5 ppm
Silica (SiO2) <1.0 ppm
Typical Module Performance
Parameter Performance
Typical Recovery 90-95%
Maximum Feed Pressure 7 bar (100 psi)
Maximum Feed Temperature 45 ℃ (113 ℉)
Sanitization Temperature at 30 psi (2.0 bar) 85 ℃ (185 ℉)
DC Voltage* 0-600 V
DC Amperage 0-10 A
Product Conductivity <0.1 µS/cm
Silica (SiO2) Removal 90-99% depending on feed water

*Voltage required depends on module size


The information provided in this brochure contains general descriptions or performance characteristics that may not always apply as described in actual use cases or may change due to further product development. An obligation to provide the respective characteristics shall only exist if expressly agreed upon in the terms of the contract.
