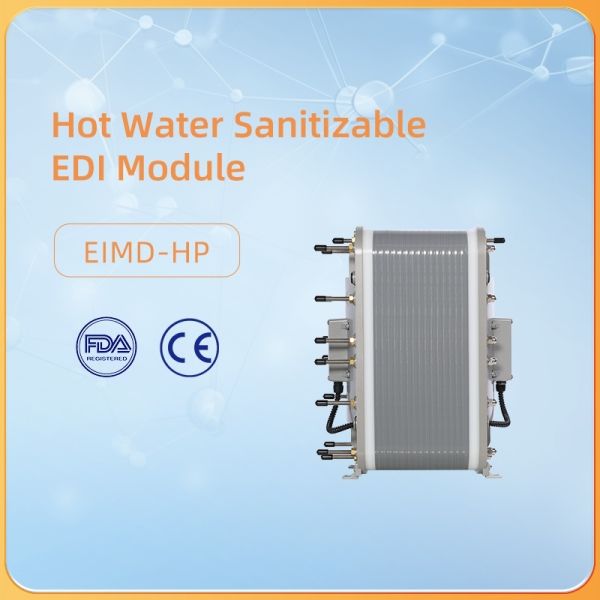

Hot Water Sanitizable Electrodeionization EDI Module For Pharmaceutical Biotech Industries
Hot Water Sanitizable Electrodeionization EDI Module For Pharmaceutical Biotech Industries
Specifications
Maintenance :
Minimal, designed for CIP and SIP processes
Module dimensions :
Varies by model (e.g., 600 x 300 x 150 mm)
Conductivity range :
0.1 to 1.0 µS/cm
Operating pressure :
1 to 6 bar
Recovery rate :
Typically 90-95%
Application :
Production of ultrapure water for pharmaceutical, biotech, and food industries
Product name :
Hot Water Sanitizable EDI Module
Electrical consumption :
Low (specific value depends on model)
Maximum sanitization temperature :
85 °C
Place of Origin :
China
Technology :
Electrodeionization (EDI)
Installation type :
Inline or skid-mounted
Operating temperature range :
5 °C to 45 °C
Brand Name :
Aquacells
Certification :
FDA，EU，CE，RoHS ，REACH
Material compatibility :
Sanitary-grade materials compatible with hot water
Model Number :
EIMD-10HP
Sanitization method :
Hot Water
Flow rate :
Varies by model (e.g., 1-10 m³/h)
Description

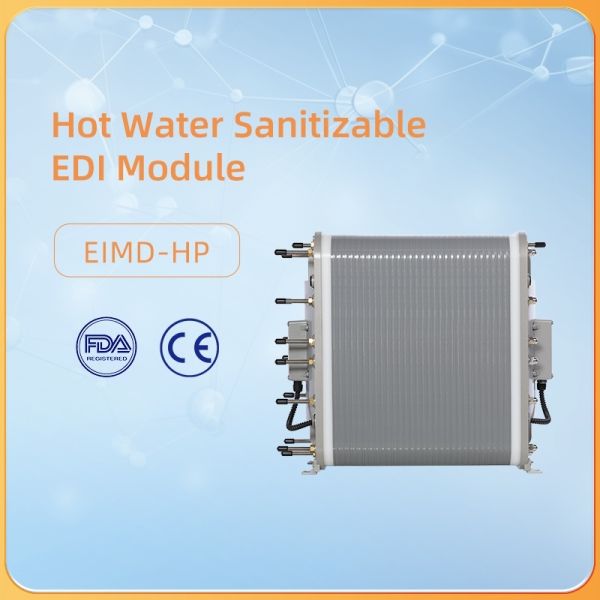

Aquacells EIMD-10HP Module for High-Temperature Resistant Chemical-Free Regeneration with 90-95% Recovery

The Aquacells EIMD-HP module is specifically engineered for hot water sanitization applications and is widely utilized in Pharmaceutical, biotechnology, and cosmetics industries. Constructed from high-temperature resistant materials to accommodate instantaneous heating and cooling requirements, this module delivers a constant flowrate of high-purity water without the need for chemical regeneration.

Feed Water Specifications
Parameter Specification
FCE (including CO2 and Silica) < 45 µS/cm
Temperature 5-45 ℃ (40-113 ℉)
Feed pressure 1.4-7 bar (20-100 psi)
Total Chlorine (as CI2) <0.05ppm
Fe <0.01ppm
Mn <0.01ppm
S2- <0.01ppm
pH 4-11
Total Hardness (as CaCO3) <1.0 ppm
Dissolved Organics (TOC as C) <0.5 ppm
Silica (SiO2) <1.0 ppm
Typical Module Performance
Parameter Performance
Typical Recovery 90-95%
Maximum Feed Pressure 7 bar (100 psi)
Maximum Feed Temperature 45 ℃ (113 ℉)
Sanitization Temperature at 30 psi (2.0 bar) 85 ℃ (185 ℉)
DC Voltage* 0-600 V
DC Amperage 0-10 A
Product Conductivity <0.1 µS/cm
Silica (SiO2) Removal 90-99% depending on feed water
*Voltage required depends on module size

The information provided in this brochure contains general descriptions or performance characteristics that may not always apply as described in actual use cases or may change due to further product development. An obligation to provide the respective characteristics shall only exist if expressly agreed upon in the terms of the contract.
