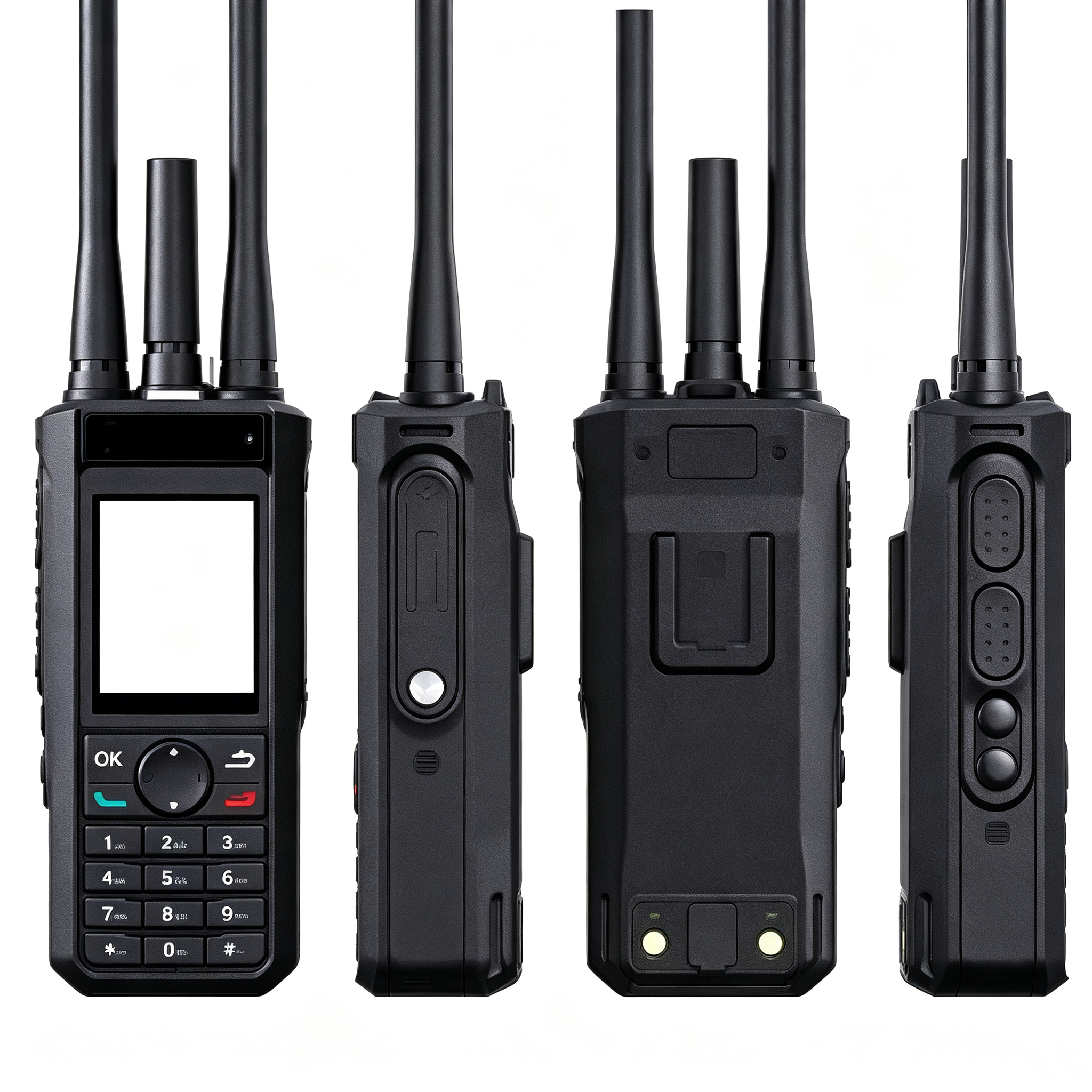

300MHz-13.4GHz Ultra-wideband Portable UAV Detection Max Detection Range 5km+

Product Introduction

The ultra-wideband portable drone detection equipment uses high-sensitivity, high-bandwidth radio frequency receiving technology to detect mainstream brand drones in the 300MHz-13.4GHz frequency band, including DJI, Autel, FMI, Hubbleson, analog image transmission racing drones, Walksnail/BETAFLY P1 and other digital image transmission racing drones, Xiaomi, Tello, ZLL and other drones. The detection distance can reach more than 5km, and it can output real-time spectrum information of the entire frequency band.

Main Features Description

1. Full‑spectrum precision detection – The device covers a detection frequency range of 300 MHz–13.4 GHz, achieves seamless detection with 1 MHz stepping, and provides ultra‑wideband full‑spectrum coverage. It outputs real‑time full‑spectrum situational awareness while simultaneously displaying core parameters such as drone type, frequency, and signal strength.

2. Diverse signal types and extensive drone model support – Recognises mainstream brand drones (DJI, Autel, Fimi, Hubsan, etc.), analog video‑transmission FPV racing drones, digital video‑transmission FPV racing drones (Walksnail, BETAFLY P1, etc.), and Wi‑Fi drones (Xiaomi, Tello, ZLL).

3. Long detection range – With a sensitivity as high as –101 dBm, the device can detect drones at distances up to 5 km.

4. Remote ID (RID) capability – Supports reception of RID information over Wi‑Fi and Bluetooth in the 2.4 GHz and 5 GHz bands, complying with China GB 46750‑2025, US ASTM F3411‑22a, and EU ASD‑STAN PrEN4709‑002.

5. Integration with jamming/countermeasure devices – Through its external interface, the device can be quickly connected to backpack‑type counter‑UAS jammers, forming an integrated long‑range “detect‑and‑defeat” operational system that significantly improves operational efficiency and airspace control capabilities.

6. High‑grade waterproof and dustproof protection – Rated IP54 in accordance with international standards, it effectively resists water splashes and dust ingress, ensuring reliable operation in harsh outdoor environments and adapting to diverse field scenarios.

7. Long‑lasting and stable battery life – Equipped with a replaceable high‑performance lithium‑ion battery, it supports a maximum continuous operating time of up to 7 hours, fully meeting the endurance requirements for extended outdoor missions.

8. Bluetooth wireless data transmission – Supports Bluetooth wireless data transmission, enabling real‑time delivery of various monitoring data to paired terminal devices for remote viewing and management, thereby enhancing operational convenience.

Key Parameters
