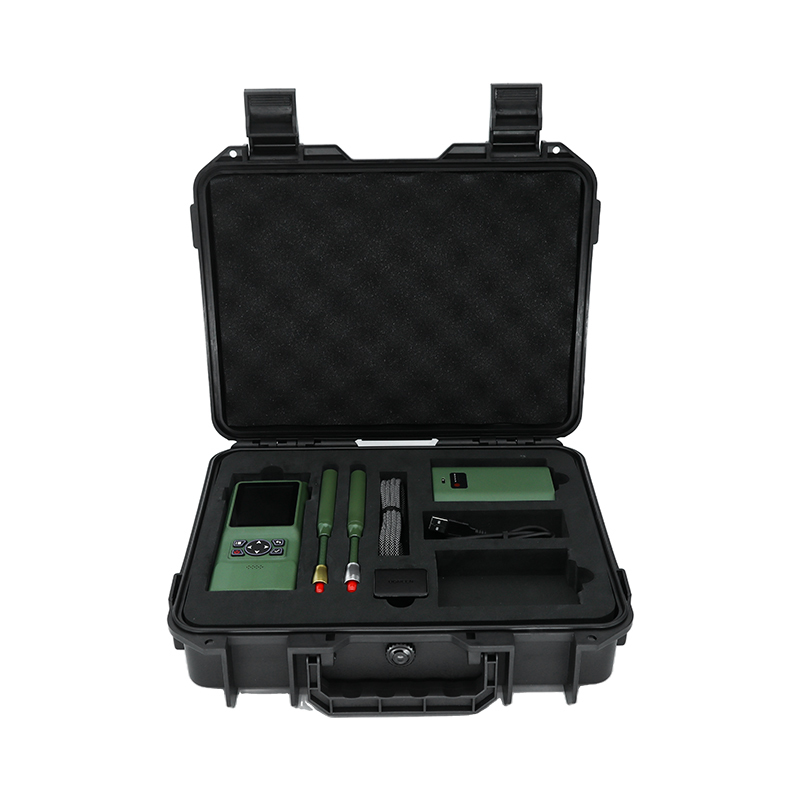

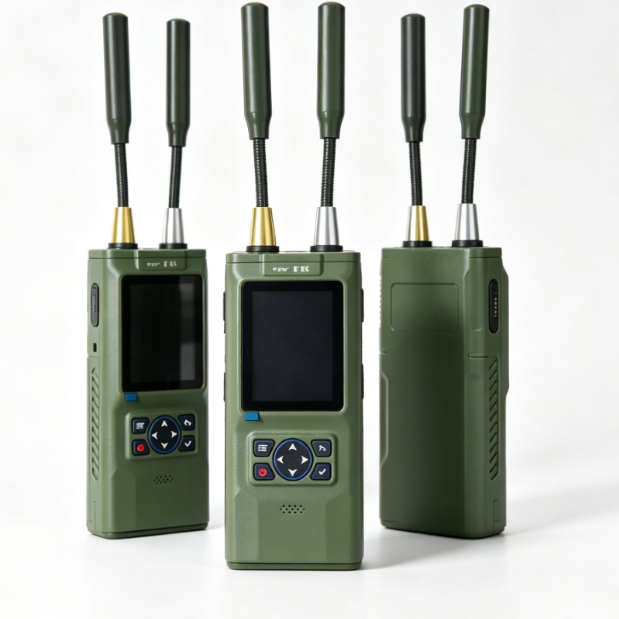

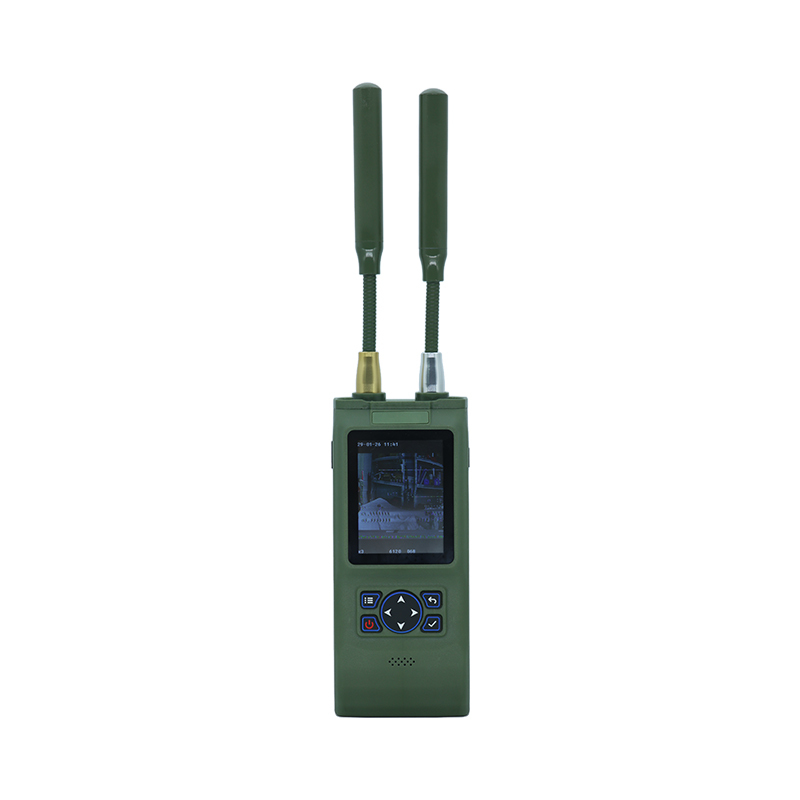

High Sensitivity 100M-8GHz Handheld Drone Detector FPV Capture Drone Detection 1-2km Dji Drone Detection
High Sensitivity 100M-8GHz Handheld Drone Detector FPV Capture Drone Detection 1-2km Dji Drone Detection
High Sensitivity 100M-8GHz Handheld Drone Detector FPV Capture Drone Detection 1-2km Dji Drone Detection
High Sensitivity 100M-8GHz Handheld Drone Detector FPV Capture Drone Detection 1-2km Dji Drone Detection
High Sensitivity 100M-8GHz Handheld Drone Detector FPV Capture Drone Detection 1-2km Dji Drone Detection
High Sensitivity 100M-8GHz Handheld Drone Detector FPV Capture Drone Detection 1-2km Dji Drone Detection
High Sensitivity 100M-8GHz Handheld Drone Detector FPV Capture Drone Detection 1-2km Dji Drone Detection
High Sensitivity 100M-8GHz Handheld Drone Detector FPV Capture Drone Detection 1-2km Dji Drone Detection
Specifications
Payment Terms :
T/T
Battery Capacity :
2,900 mAh
Model Number :
ZY03
Video Capture / Demodulation :
100 MHz–8 GHz analog FPV video transmission
Certification :
CE
Signal Identification :
OFDM high-definition digital video transmission signals; FM analog FPV video transmission signals
MOQ :
1~99
Delivery Time :
5-8 Days
Alarm Methods :
Vibration and audible alarm
Protection Rating :
IP54
Price :
$999-$1200
Log Recording :
Built-in storage for detection and alarm records
Supply Ability :
5000
Battery Life :
Approximately 7 hours with a single battery
Brand Name :
Roviyno
Receiving Frequency Range :
100 MHz–8 GHz
Packaging Details :
Carton
Weight :
Approx. 580 g
Place of Origin :
China
Detection Range :
≥1 km
Description
High Sensitivity 100M-8GHz Handheld Drone Detector FPV Capture Drone Detection 1-2km Dji Drone Detection
Product Description
  • Full-Spectrum Detection Coverage-The device detects frequencies from 100MHz to 8GHz, ensuring comprehensive coverage across every MHz. It provides ultra-wideband full-spectrum coverage and can detect analog video transmission signals in real-time for each drone's frequency band with an ultra-low false alarm rate, simultaneously displaying relevant signal data.

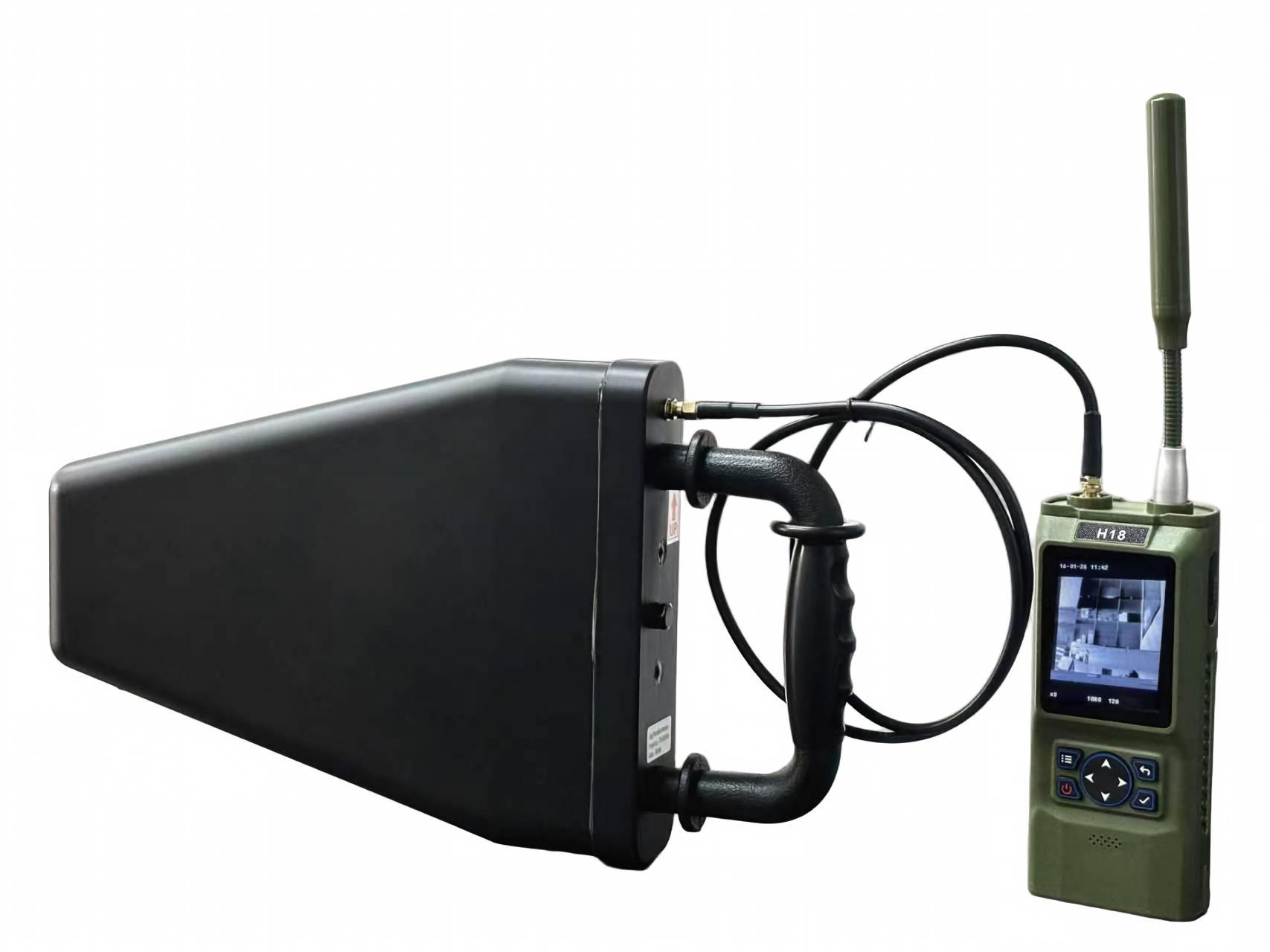

  • Precise Direction Finding Function-Supports replacement of the directional antenna.
  • Drone Video Capture Function-The device can capture simulated video from drones within the 100MHz-8GHz range in real-time, allowing for first-person viewing of FPV camera video information.
  • Interference Linkage Function: The device can be linked with backpack-style countermeasure equipment via a magnetic interface.
  • Bluetooth Data Transmission-The device supports Bluetooth data transmission, allowing real-time transmission of monitoring data to terminal devices for convenient remote viewing.
Item Technical Parameters
Receiving Frequency Range 100 MHz–8 GHz
Video Capture / Demodulation 100 MHz–8 GHz analog FPV video transmission
Signal Identification OFDM high-definition digital video transmission signals; FM analog FPV video transmission signals
Detection Range ≥1 km (actual detection range may vary depending on frequency band and UAV transmission power; a high-gain directional antenna can be used for extended detection range)
Alarm Methods Vibration and audible alarm
Log Recording Built-in storage for detection and alarm records
Upgrade & Data Export Interface Dedicated magnetic charging/data cable
Power-On Method Press and hold the power button for 3 seconds
Power Supply Removable lithium battery with USB Type-C charging
Battery Capacity 2,900 mAh
Battery Life Approximately 7 hours with a single battery
Controls Physical buttons; supports volume adjustment, screen backlight control and UAV detection operation
Operating Temperature −20°C to +60°C
Storage Temperature −40°C to +85°C
Protection Rating IP54
Dimensions Approx. 164 × 44 × 68 mm (host, antenna excluded)
Weight Approx. 580 g (including battery and antenna)


High Sensitivity 100M-8GHz Handheld Drone Detector FPV Capture Drone Detection 1-2km Dji Drone Detection
