50w 6000-8000mhz RF Narrowband Anti Drone Module Ultra Wideband PA Jamming Modules
50w 6000-8000mhz RF Narrowband Anti Drone Module Ultra Wideband PA Jamming Modules
50w 6000-8000mhz RF Narrowband Anti Drone Module Ultra Wideband PA Jamming Modules
50w 6000-8000mhz RF Narrowband Anti Drone Module Ultra Wideband PA Jamming Modules
50w 6000-8000mhz RF Narrowband Anti Drone Module Ultra Wideband PA Jamming Modules
50w 6000-8000mhz RF Narrowband Anti Drone Module Ultra Wideband PA Jamming Modules
50w 6000-8000mhz RF Narrowband Anti Drone Module Ultra Wideband PA Jamming Modules
50w 6000-8000mhz RF Narrowband Anti Drone Module Ultra Wideband PA Jamming Modules
Specifications
Model Number :
RAH-50W-6000-8000
Working Voltage :
28V
Price :
$1,290-$1,380
Packaging Details :
Carton box
Dimension :
200*100*25MM
Temperature Protection :
75℃
Payment Terms :
T/T
Working Temperature :
-20～+65℃
Place of Origin :
China Mainland
Output Power (Max) :
≥47 dBm
Supply Ability :
<500 pcs 10 working days
Gain :
47±1 dB
Delivery Time :
7-10 working days
Ripple in Band :
≤ 3 dB
Brand Name :
Roviyno
Frequency Range :
6000-8000MHz
Input Signal Source :
Built-in high-speed noise modulation signal source
MOQ :
10
LED indicator :
Yes
Description
Ultra-wideband 50w 6000-8000mhz RF Narrowband Anti Drone Module Pa Jamming Modules

1.RF DATA

Parameter

Specification

Note

Operating Frequency

6000-8000 MHz

Saturated Output Power

≥50 W

Gain

≥47 dB

0 dBm input for rated output power, max +3 dB

Inband Gain Ripple

≤3.0 dB

Operating Current

≤10 A

@50 W output power

Efficiency

35 %

Input VSWR

≤1.5

RF Input Interface

SMA Connector

RF Output Interface

SMA Connector

Powersupply and Control Interface

DB7W2

PTT Enable Control Port

The amplifier is off by default; it is enabled at 3.3~5 V

Highlevel to enable, lowlevel to disable

VCC Power Supply

+28 V

VCC Maximum Voltage

+32 V

External Dimensions

220 × 100 × 26 mm

Excluding connectors

Operating Temperature

−40 ℃ ~ +55 ℃

VSWR Protection

Alarm triggered on output disconnection

Monitoring

Temperature detection(Vt), Voltage detection, Current detection(Vi)

Overtemperature Protection

Automatic protection when module temperature exceeds threshold; auto recovery when temperature drops below threshold

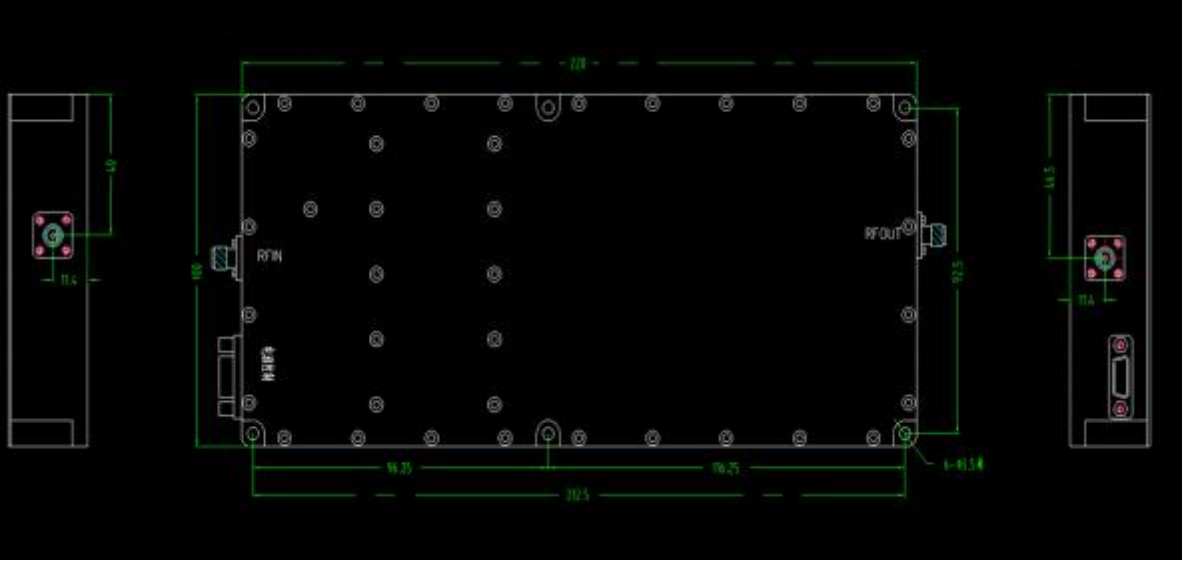

Size:

50w 6000-8000mhz RF Narrowband Anti Drone Module Ultra Wideband PA Jamming Modules

Roviyno offers compact RF PA modules covering 100 MHz–8 GHz, with multiple wideband configurations:

WIDEBAND RF PA MODULES
Model Class Frequency Power Size
WB-10 100 MHz–3 GHz 10W 80 × 42 × 18 mm
WB-8 100 MHz–7 GHz 8W 150 × 80 × 23 mm
WB-10 400 MHz–6 GHz 10W 120 × 75 × 18 mm
WB-20 700 MHz–6 GHz 20W 200 × 100 × 23 mm
WB-30 700 MHz–6 GHz 30W 200 × 100 × 23 mm
WB-50 700 MHz–6 GHz 50W 200 × 100 × 23 mm
WB-80 1–6 GHz 80W 200 × 100 × 23 mm
WB-100 2–6 GHz 100W 150 × 80 × 23 mm
WB-100 1–3 GHz 100W 150 × 80 × 23 mm
WB-100 100 MHz–1 GHz 100W 200 × 100 × 23 mm
WB-100 300 MHz–2 GHz 100W 150 × 80 × 23 mm
WB-80 300 MHz–3 GHz 80W 158 × 122 × 25 mm
  • Wideband: 100 MHz–8 GHz
  • Output Power: 8 W–100 W
  • Compact & High Power Density
  • 28 V DC
  • OEM / Custom Solutions Available
CUSTOMIZATION RFPA PRODUCT MATRIX
Series Power Frequency Technology Configuration Typical Size
Compact RFPA 10–30W 20 MHz–7.5 GHz GaN / LDMOS PA / Source Compact
Mid-Power RFPA 50W 20 MHz–7.5 GHz GaN / LDMOS PA / Source 117–130 mm
High-Power RFPA 80–100W 100 MHz–7.5 GHz GaN / LDMOS PA / Source 150–200 mm
Ultra High-Power RFPA 150–200W 20 MHz–2.7 GHz GaN / LDMOS PA / Source 180–210 mm
Wideband RFPA 8–100W 100 MHz–7 GHz GaN / LDMOS PA Only Various
Smart RFPA 50W-Class 100 MHz–7.5 GHz GaN / LDMOS RS485 150 × 80 × 23 mm

How does the signal jammer module work?

First, we must detect the target frequency bands. This includes WIFI, GPS and cellular frequencies.

Then, the jamming unit will emit higher-power signals to match or overlap with the target signals.

Finally, the target devices will cease to function.

Industry Use Cases and Operational Value


This anti-drone module integrates seamlessly into security infrastructures for industrial sites, public venues, and emergency response settings. It is particularly valuable for protecting critical infrastructure such as power plants and data centers, as well as managing crowd safety in stadiums by mitigating drone interference. Law enforcement and units benefit from its agile deployment capabilities during tactical operations requiring temporary but effective drone denial. The module’s compatibility with portable and fixed jamming systems allows for strategic airspace control, reducing operational risks associated with rogue drones and supporting compliance with regulatory frameworks regarding unmanned aerial system management.
