Specifications
Dimension :
200*95*27mm
Model Number :
RAH
Price :
$165--$560
Working current :
≤ 8-9.5A
Delivery Time :
7-10 working days
Working Temperature :
-20～+65℃
Packaging Details :
Carton box
Shell Material :
Aluminum
Place of Origin :
China Mainland
Payment Terms :
T/T
Output power (Max) :
50±1dBm
Brand Name :
Roviyno
MOQ :
1
Working voltage :
28V-32V
Supply Ability :
<500 pcs 10 working days
Ripple in band :
≤ 3 dB
Description
100W 5.8G Jammer Module For UAV Signal Jamming Narrowband C-UAV Module
Application Scenarios
  • Custom Drone Jamming System Integration: As a plug-in module within larger anti-drone networks or vehicle-mounted jammers.
  • Border Security: For teams requiring frequency-specific suppression in open terrain.
  • Critical Infrastructure Protection: Supports modular upgrades in stationary jamming systems protecting prisons, airports, and energy zones.
  • Defense Contractors & OEM Manufacturers: Ideal for assembling proprietary jammer devices for regional or export projects.
  • Educational & Research Institutions: For labs testing signal blocking in academic or engineering environments.
100W PA Technical Datasheet
1.RF DATA
Item Spec. Remarks
Working voltage 28V 28-32V
Working current ≤ 8-9.5A Output 100W
Output power (Max) 50±1dBm 100W
Gain (Max) 48±1dB
Ripple in band ≤ 3 dB
Enable control Customize 3-28V
Input power ≤ 0-10dBm
Input VSWR ≤2
Output VSWR ≤2
High Low Temperature test Temperature -20～+65℃ Working properly
Gain Stability ±2 dB At -20℃～+65℃
Power stability ±2 dB At -20℃～+65℃
Power supply Port Positive and negative Customized
Shell Material Aluminum With polish processing
RF input connector N-K Or SMA-K
RF output connector SMA-K
Dimension 200*95*27mm Customized
Weight 890G Customized
Screw Size M2.5
Installation Heatsink Need to be installed

No. Frequency Range Output Power PA Technology Isolator Dimensions (mm)

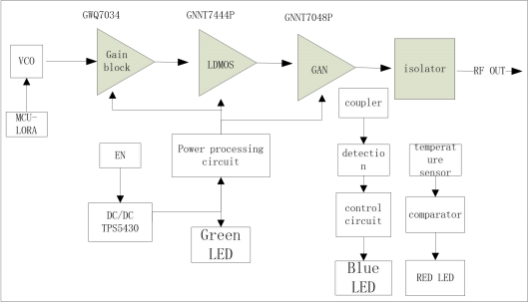

100W VCO RF Power Amplifier Module
1 50–100 MHz 100W LDMOS No 150×80×21
2 100–200 MHz 100W LDMOS No 150×80×21
3 200–300 MHz 100W LDMOS No 150×80×21
4 300–400 MHz 100W GaN No 150×80×21
5 400–500 MHz 100W GaN Yes 150×80×21
6 500–600 MHz 100W GaN Yes 150×80×21
7 600–700 MHz 100W GaN Yes 150×80×21
8 700–840 MHz 100W GaN Yes 150×80×21
9 840–1020 MHz 100W GaN Yes 150×80×21
10 1000–1300 MHz 100W GaN Yes 150×80×21
11 1300–1500 MHz 100W GaN Yes 150×80×21
12 1550–1650 MHz 100W GaN Yes 150×80×21
13 1700–1900 MHz 100W GaN Yes 150×80×21
14 1900–2100 MHz 100W GaN Yes 150×80×21
15 2400–2500 MHz 100W GaN Yes 150×80×21
16 2575–2690 MHz 100W GaN Yes 150×80×21
17 3100–3800 MHz 100W GaN Yes 150×80×21
18 4800–5000 MHz 100W GaN Yes 150×80×21
19 5100–5300 MHz 100W GaN Yes 150×80×21
20 5300–5700 MHz 100W GaN Yes 150×80×21
21 5700–5850 MHz 100W GaN Yes 150×80×21
22 5900–6200 MHz 100W GaN Yes 150×80×21
