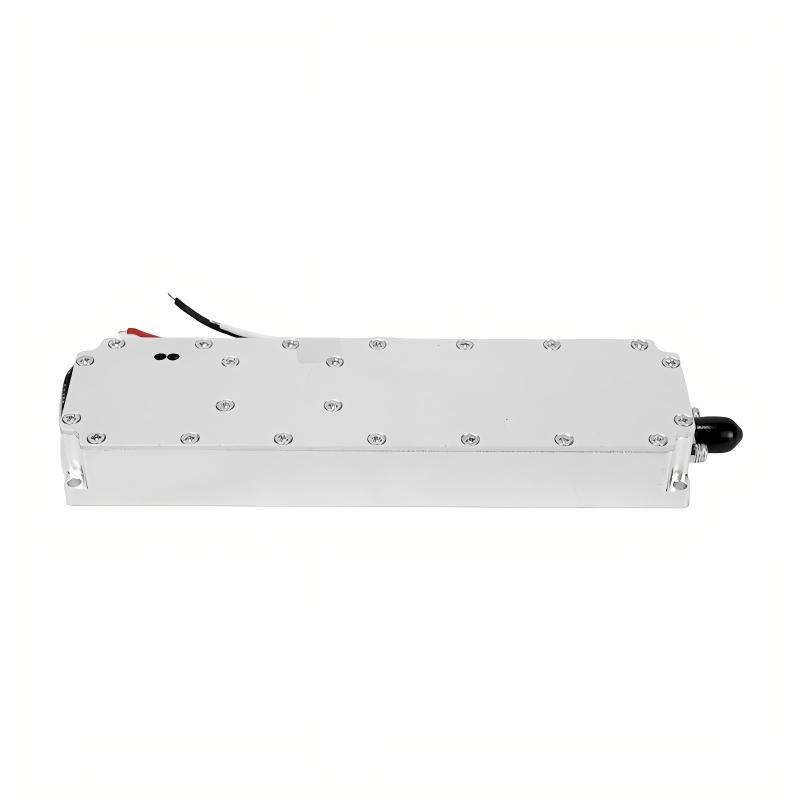

High PAE Narrowband Anti Drone Module 830-930 MHz Compact Design Customized
High PAE Narrowband Anti Drone Module 830-930 MHz Compact Design Customized
High PAE Narrowband Anti Drone Module 830-930 MHz Compact Design Customized
High PAE Narrowband Anti Drone Module 830-930 MHz Compact Design Customized
High PAE Narrowband Anti Drone Module 830-930 MHz Compact Design Customized
High PAE Narrowband Anti Drone Module 830-930 MHz Compact Design Customized
High PAE Narrowband Anti Drone Module 830-930 MHz Compact Design Customized
High PAE Narrowband Anti Drone Module 830-930 MHz Compact Design Customized
Specifications
Supply Ability :
<500 pcs 10 working days
Gain :
47±1 dB
Model Number :
RAH-50W-830930
Working Voltage :
28V
Price :
$65/pc--$165/pc
Packaging Details :
Carton box
Dimension :
130*58*18 mm
Temperature Protection :
75℃
Payment Terms :
T/T
Working Temperature :
-20～+65℃
Place of Origin :
China Mainland
Output Power (Max) :
≥47 dBm
Delivery Time :
7-10 working days
Ripple in Band :
≤ 3 dB
Brand Name :
Roviyno
Frequency Range :
Customized
Input Signal Source :
Built-in high-speed noise modulation signal source
MOQ :
100
LED indicator :
Yes
Description
Narrowband Anti Drone Module
Functions of the 830–930 MHz anti-drone module
  • Generation of dense and uniform electronic interference in the 830–930 MHz frequency range
  • Suppression of control channels within the specified frequency band
  • Operation as part of mobile and stationary anti drone systems
  • Maintaining stable output power under varying load conditions
High PAE Narrowband Anti Drone Module 830-930 MHz Compact Design Customized High PAE Narrowband Anti Drone Module 830-930 MHz Compact Design Customized High PAE Narrowband Anti Drone Module 830-930 MHz Compact Design Customized
50W Module Technical Datasheet
RF DATA
Output Power 50 W(47 dB)
Rated Voltage 28 V
Rated Current 2~5 A
Efficiency 40 ~ 60%
Output VSWR ≦1.5
Flatness ±1 dB
Port SMA-Female
Control Mode Support enable line control
Working Temperature -30~+65℃
Weight 0.32 kg
Size 145 mm * 54 mm * 20 mm
Frequencies Optional
No. Frequency Range Output Power PA Technology Isolator Dimensions (mm)
50W VCO RF Power Amplifier Module
1 20–100 MHz 50W SiMOS No 117×58×16
2 100–200 MHz 50W SiMOS No 117×40×18 / 117×58×16
3 200–300 MHz 50W SiMOS No 117×40×18 / 117×58×16
4 300–400 MHz 50W GaN No 117×40×18 / 117×58×16
5 300–400 MHz 50W LDMOS Yes 130×58×18
6 300–400 MHz 50W GaN Yes 130×58×18
7 400–500 MHz 50W GaN Yes 117×40×18 / 117×58×16
8 500–600 MHz 50W GaN Yes 117×40×18 / 117×58×16
9 600–700 MHz 50W GaN Yes 117×40×18 / 117×58×16
10 700–840 MHz 50W GaN Yes 117×40×18 / 117×58×16
11 840–1020 MHz 50W GaN Yes 117×40×18 / 117×58×16
12 1000–1300 MHz 50W GaN Yes 117×40×18 / 117×58×16
13 1300–1500 MHz 50W GaN Yes 117×40×18 / 117×58×16
14 1550–1650 MHz 50W GaN Yes 117×40×18 / 117×58×16
15 1700–1900 MHz 50W GaN Yes 117×40×18 / 117×58×16
16 1900–2100 MHz 50W GaN Yes 117×40×18 / 117×58×16
17 2400–2500 MHz 50W GaN Yes 117×40×18 / 117×58×16
18 2575–2690 MHz 50W GaN Yes 117×40×18 / 117×58×16
19 3100–3800 MHz 50W GaN Yes 117×40×18 / 117×58×16
20 3800–4800 MHz 50W GaN Yes 117×58×16
21 4800–5000 MHz 50W GaN Yes 117×58×16
22 5100–5300 MHz 50W GaN Yes 117×58×16
23 5300–5700 MHz 50W GaN Yes 117×58×16
24 5700–5850 MHz 50W GaN Yes 117×58×16
25 5900–6200 MHz 50W GaN Yes 117×58×16
