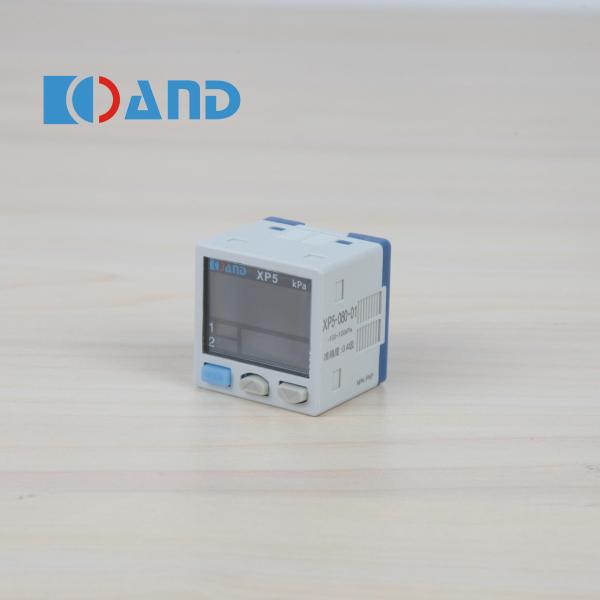

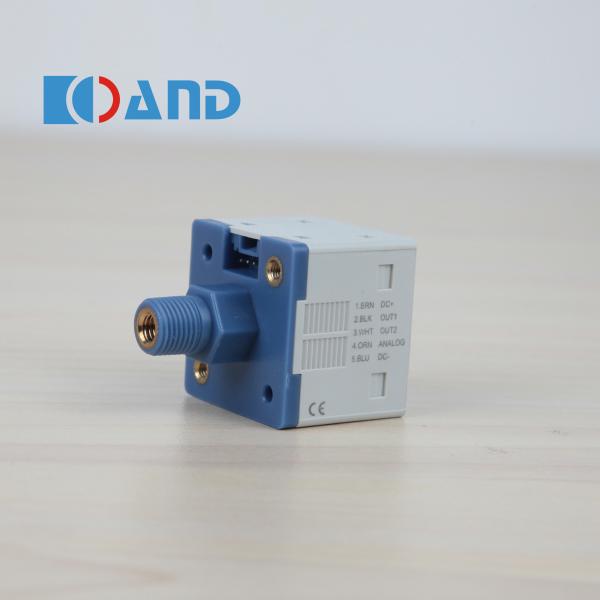

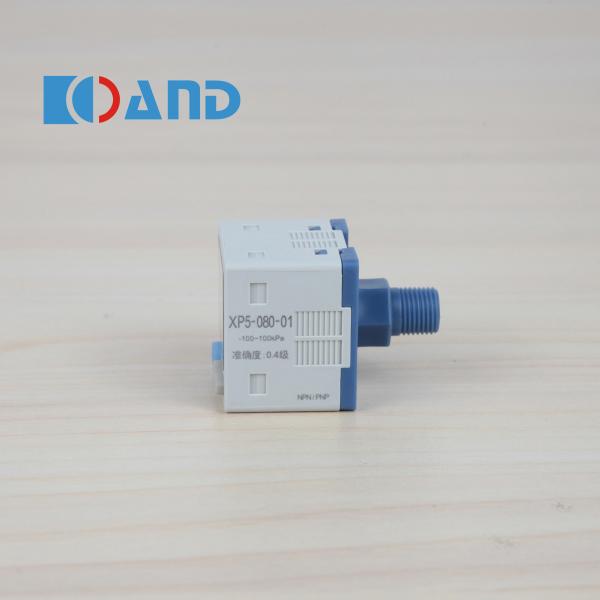

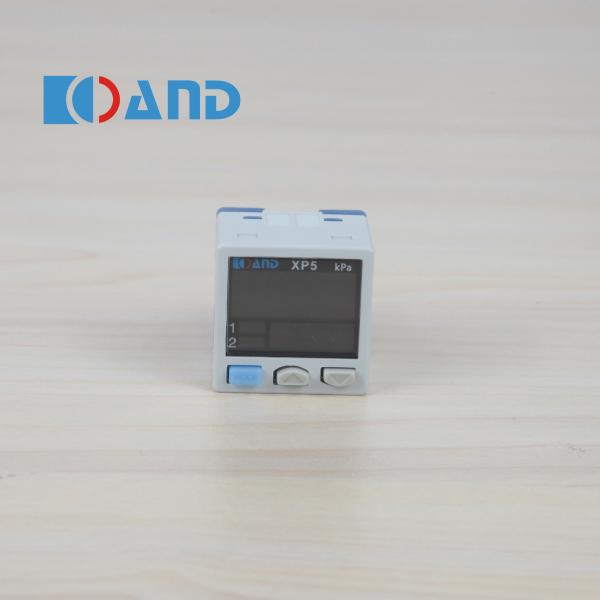

XP5 Pipe Digital Pressure Sensor High Accuracy NPN / PNP Switchable
XP5 Pipe Digital Pressure Sensor High Accuracy NPN / PNP Switchable
XP5 Pipe Digital Pressure Sensor High Accuracy NPN / PNP Switchable
XP5 Pipe Digital Pressure Sensor High Accuracy NPN / PNP Switchable
XP5 Pipe Digital Pressure Sensor High Accuracy NPN / PNP Switchable
XP5 Pipe Digital Pressure Sensor High Accuracy NPN / PNP Switchable
XP5 Pipe Digital Pressure Sensor High Accuracy NPN / PNP Switchable
XP5 Pipe Digital Pressure Sensor High Accuracy NPN / PNP Switchable
XP5 Pipe Digital Pressure Sensor High Accuracy NPN / PNP Switchable
XP5 Pipe Digital Pressure Sensor High Accuracy NPN / PNP Switchable
XP5 Pipe Digital Pressure Sensor High Accuracy NPN / PNP Switchable
XP5 Pipe Digital Pressure Sensor High Accuracy NPN / PNP Switchable
XP5 Pipe Digital Pressure Sensor High Accuracy NPN / PNP Switchable
XP5 Pipe Digital Pressure Sensor High Accuracy NPN / PNP Switchable
Specifications
Brand Name :
AND
Model Number :
XP5
Certification :
CE
Place of Origin :
China
Pressure types :
Standard pressure
Rated pressure range :
-100kPa~100kPa
Adjustable pressure range :
-100kPa~100kPa
withstandable pressure :
500kPa
Suitable fluid type :
Non-corrosive gas
Power supply voltage :
12~24V DC ±5%
Electric Current :
30 12V 50
Switch Output :
NPN O.C Output: 80mA/24VDC Max or PNP O.C Output: 80mA/24VDC
Repeatability :
F.S.
Response delay :
Switchable between: 2.5ms,5ms,10ms,25ms,50ms,100ms,250ms,500ms,1000ms,5000ms
Voltage output :
1V~5V Line:+-1%F.S. Impedance Output: 1K
Current Output :
4mA~20mA Line:+-1%F.S. maximum load impedance: Power supply voltage12V: 300 ； Power supply voltage 24V: 600 , minimum load impedance: 50
Temperature Range :
Working Temperature:0~50℃ Storage temperature:-10~60℃(Without ondensation or ice）
Humidity range :
35~85%RH
Characteristics :
±1%F.S.（25℃）
Protection level rating :
IP40
Material :
Case:nylon and fiberglass liquid crystal display:Propylene Pipe: External POM Thread + Internal M5 Copper Nut Insertion. sealing ring：H-NBR Button:Silicone Rubber
Dimensions :
（Plastic parts） （The overall dimensions）
Weight :
About 80g
Description

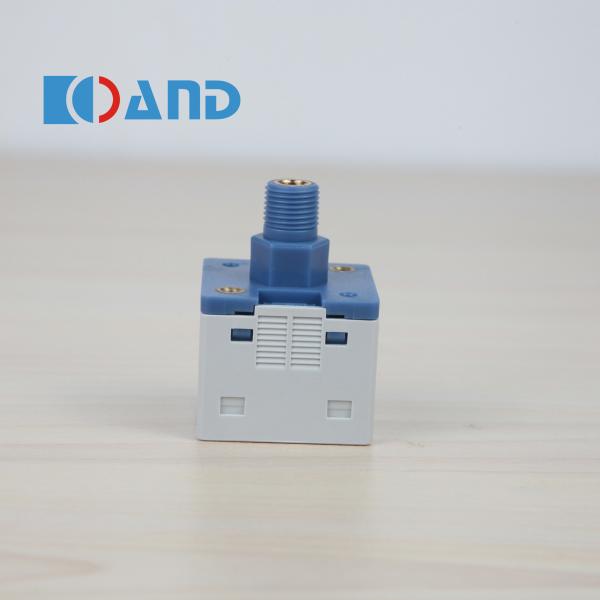

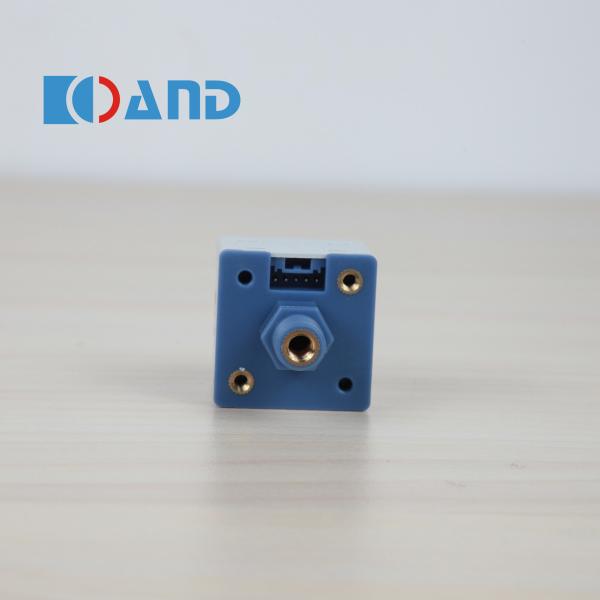

xp5 Pipe: External POM Thread + Internal M5 Copper Nut Insertion.

XP5 Pipe Digital Pressure Sensor High Accuracy NPN / PNP Switchable
